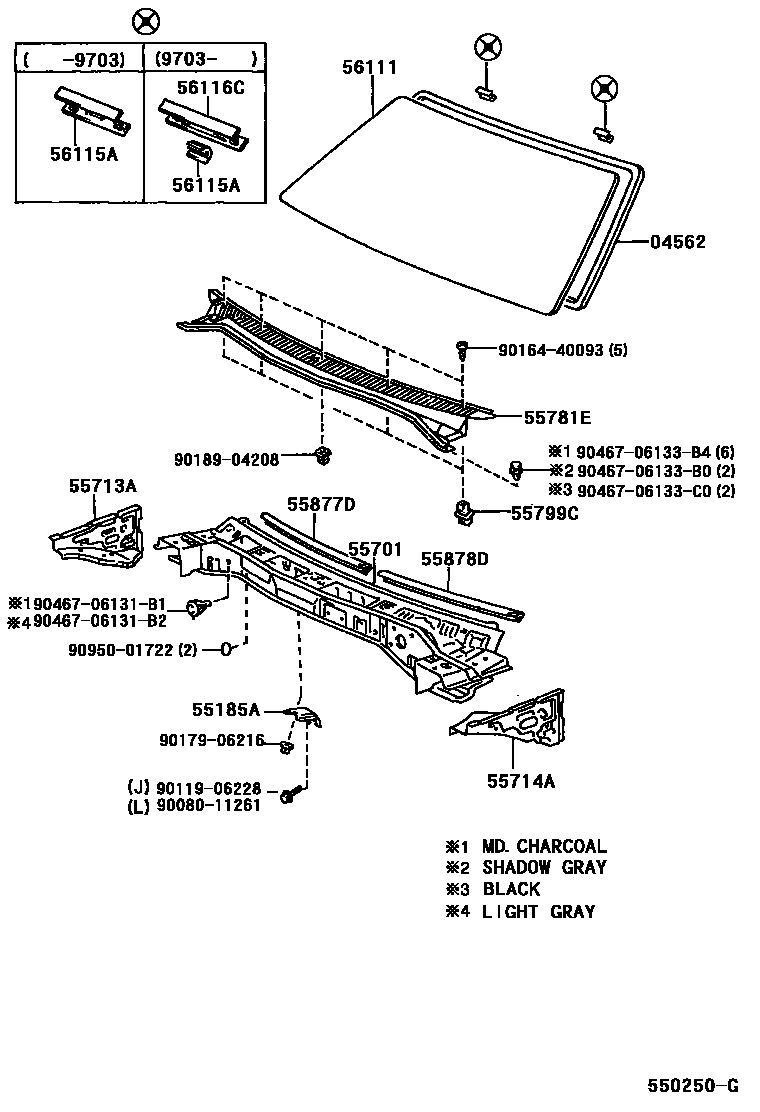

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

55185ABRACE, DASH PANEL TO COWL

main55185-12010iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

55701PANEL SUB-ASSY, COWL

main55700-1A111iCE110..RHD199907-199910

main55700-1A120iAE111..LHD..(GL,XL)199704-199907

main55700-1A121iAE111..LHD..(GL,XL)199907-199910

main55700-1A200iCE110..LHD199704-199907

main55700-1A201iCE110..LHD199907-200109

main55700-1A240iEE111..VEN199909-200002

main55700-1A241iEE111..TUR;EE110..LHD..(GEN,GENKD,PHL,TUR,VEN)199907-200411

main55700-1A250iAE111,112..LHD..(GLI,XLI); AE112..GCC,GEN,VEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)199704-199901

main55700-1A251iAE111,112..LHD..(GLI,XLI)..(GEN,TUR)199907-200109

main55700-1A270iAE111..RHD..(GL,XL)199704-199907

main55700-1A271iAE111..RHD..(GL,XL)199907-199910

main55700-1A300iEE110..GCC199901-199907

main55700-1A301iEE110..GCC199907-200008

main55700-1A310iAE111,112..GCC199901-199907

main55700-1A311iAE111,112..GCC199907-200008

main55700-1A361iZZE11#200005-200201

main55700-1A900iAE110..4FC..GEN199807-199909

main55700-1A901iCE110..RHD; CE110..RHD..GEN199704-199907

main55700-1A902iAE111..WG..5F;AE112..RHD..(GLI,SEG);AE111..RHD..SED..(GLI,SEG,XLI);AE110,112,EE11#..RHD..(GL,GLI,XL,XLI)..(GEN,IDN,MA)199909-200207

55713APANEL, COWL TOP SIDE, RH

main55713-12081iAE11#,EE111199505-199704

55714APANEL, COWL TOP SIDE, LH

main55714-12081iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL; AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199705

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12160iAE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)199505

main55708-12200iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010×4iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

55877DWETHERSTRIP, COWL, REAR RH

main55877-12080iEE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI199704-199705

55878DWETHERSTRIP, COWL, REAR LH

main55878-12070iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

56111GLASS, WINDSHIELD

main56111-1A690iAE110..4FC; AE111..WG..5F;AE112..XLI..(BZ,GEN,IDN);AE111,EE111..SED..(ARL,GEN,GENKD,PHL,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GEN,GENKD,IDN,PHL,TUR,VEN); EE110..MTM..GEN;EE110..LHD..3FC;AE112,EE111..ARL,GEN,VEN;AE110,111,CE110,ZZE11#..GEN,TUR,VEN199901

*LAM,T=4.76,GREEN

main56111-1A790iAE111,112,EE110..GCC199901-199910

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12040×2iAE11#,EE11#199505-199704

main56115-12050×2iAE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199704

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL; AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704

9008011261

main90080-11261

9011906228

main90119-06228

9016440093

main90164-40093

9017906216

main90179-06216

9018904208

main90189-04208

9046706131B1

main90467-06131B1

9046706131B2

main90467-06131B2

9046706133B0

main90467-06133B0

9046706133B4

main90467-06133B4

9046706133C0

main90467-06133C0

9095001722

main90950-01722

23 parts on this diagram · 1 diagram in section
