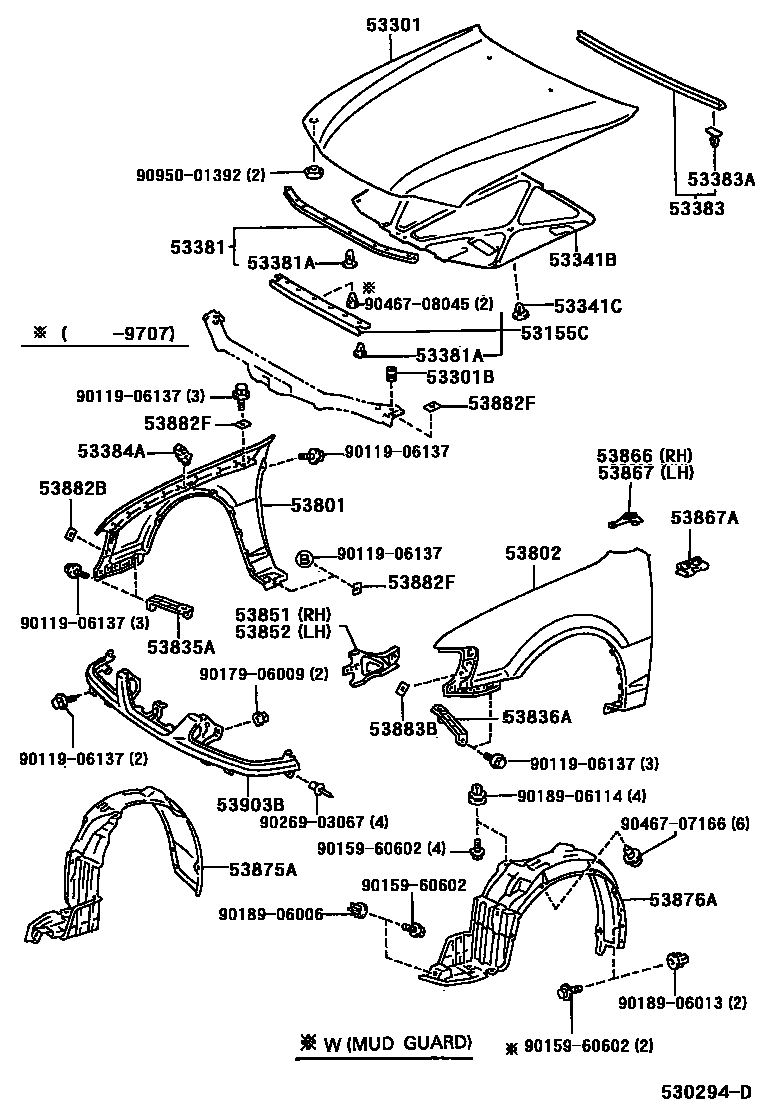

HOOD & FRONT FENDER

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-12050iAE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN; EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-199707

main53155-12051iAE110..4FC..GEN; CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199807-200008

53301HOOD SUB-ASSY

main53301-02070iZZE11#200005-200201

(L)

main53301-12800iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199707

BUMPER = TYPE C

main53301-12801iAE110..TH;AE111..MA;AE112,EE111..SED..(GEN,IDN,MA,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199707-200008

BUMPER = TYPE A

main53301-12820iAE112..GCC;AE111,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN); AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199704-199910

BUMPER = TYPE B

main53301-12860iAE111,112,EE111..VEN200002-200208

53301BCUSHION, HOOD BUMPER

main90541-15019×2iAE11#,EE11#199505-199507

main90541-15021×2iAE110..4FC..GEN199807-200008

53341BINSULATOR, HOOD

main53341-12071iCE110199704-199910

main53341-12130iCE110199910-200109

BUMPER = TYPE D

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iCE110199908-200109

BUMPER = TYPE D

main90467-09050×8iCE110; CE110..GEN199704-199908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12170iAE111,112,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN200008-200208

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iAE110..GLI; AE111,112,CE110,EE110..GL,GLI,STD,XL,XLI; AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI);AE112,CE110,EE110..4F,4FC,5F199704-199707

53383SEAL, HOOD TO COWL TOP

main53383-12110iAE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)199505

main53383-12130iEE110..LHD..(GCC,GEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN);AE111,ZZE11#..LHD..SED..(GCC,GEN,TUR,VEN)199704-200208

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

53384ABUMPER, FENDER TO HOOD

main53384-12090×2iAE110..TH;AE111..MA;AE112,EE111..SED..(GEN,IDN,MA,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199705-200008

BUMPER = TYPE A

main53384-20060×2iEE111..VEN;AE111..TUR,VEN;AE111..RHD..WG..4FC;AE112,CE110,ZZE11#..(GLI,XLI)..(ARL,GEN,TUR,VEN)199805-200208

53801FENDER SUB-ASSY, FRONT RH

main53811-02070iZZE11#200005-200201

(L)

main53811-1H030iAE110..TH;AE111..MA;AE112,EE111..SED..(GEN,IDN,MA,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199704-200008

BUMPER = TYPE C

main53811-1H080iAE112..GCC,NZ;AE111,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ); AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199704-199910

BUMPER = TYPE B

main53811-1H110iAE111,112,EE111..VEN200002-200208

53802FENDER SUB-ASSY, FRONT LH

main53812-02070iZZE11#200005-200201

(L)

main53812-1E800iEE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..4FC..XLI..GEN;AE111,CE110..(GL,XL)..GEN;AE111..LHD..SED..5F..XLI..GEN199704-199910

BUMPER = TYPE C

main53812-1E850iAE112..ARL,GEN,VEN;AE111,EE11#..ARL,TUR,VEN; EE111..VEN;AE111..TUR,VEN;AE112..ARL,GEN,VEN199805-199910

main53812-1E880iAE111,112,EE111..VEN200002-200208

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-12110iAE111,112,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN200008-200208

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-12070iAE111,112,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN200008-200208

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-12050iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

main53851-12060iAE111,112,CE110,EE110..ARL,GCC,GEN199910-200002

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-12050iEE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN); EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-199910

main53852-12060iZZE11#;EE111..VEN;AE111,112,CE110,EE110..ARL,GCC,GEN,VEN200002-200208

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12010iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12010iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL199704

53867ARETAINER, FRONT FENDER

main53867-12030×2iEE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-200208

53875ALINER, FRONT FENDER, RH

main53875-12240iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

main53875-12260iAE111,EE11#..TUR; AE111..TUR200002-200005

main53875-12270iZZE11#;AE111,112,EE111..VEN200002-200208

53876ALINER, FRONT FENDER, LH

main53876-12230iAE112..PHL199910-200207

main53876-12250iAE112..GCC,NZ;AE111,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ); AE112..GCC;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..SED..(GL,GLI,XL,XLI)..(GCC,GEN)199704-199910

BUMPER = TYPE B

main53876-12260iAE111,112,CE110,EE110..ARL,GCC,GEN199910-200109

BUMPER = TYPE D

53882BSEAL, FRONT FENDER, RH

main53882-16030iAE110,111,CE110,EE11#..SED..GEN199505-199807

53882FSEAL, FRONT FENDER

main53882-16030×8iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-200008

53883BSEAL, FRONT FENDER, LH

main53882-16030iAE110..4FC..GEN; CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199807-200008

53903BPANEL SUB-ASSY, FRONT END

main53903-12070iAE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI)199505-199705

BUMPER = TYPE A

main53903-12090iAE110..TH;AE111..MA;AE112,EE111..SED..(BZ,GEN,IDN,MA,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD,PHL); EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN199704-200008

BUMPER = TYPE C

9011906137

main90119-06137

9015960602

main90159-60602

9017906009

main90179-06009

9018906006

main90189-06006

9018906013

main90189-06013

9018906114

main90189-06114

9026903067

main90269-03067

9046707166

main90467-07166

9046708045

main90467-08045

9095001392

main90950-01392

35 parts on this diagram · 1 diagram in section
