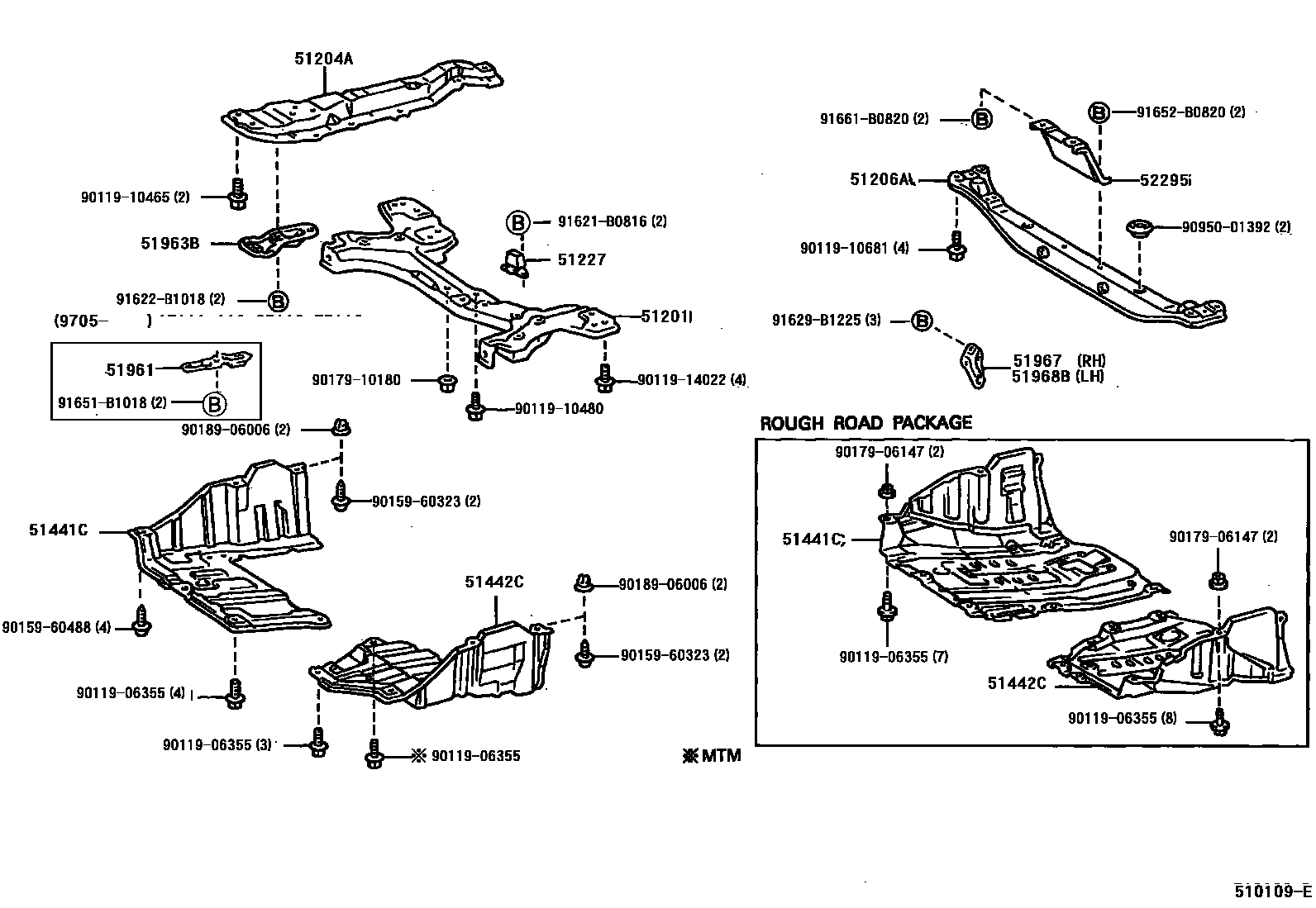

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
main51201-12380iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
main51204-12080iEE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505-199905
main51204-12081iAE110..4FC; AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL; EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN199905-200001
main51204-12082iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR; EE11#..GCC,GEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR200001
51206AMEMBER SUB-ASSY, REAR SUSPENSION
main51206-12040iAE110..4FC; AE111,112,EE11#..BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN; EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN199910
PLANT NO. K21
main51206-12060iAE110..XLI;AE111..SEG; AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL; AE112,EE111;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)199704-199705
PLANT NO. A31-A32
51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER
main51227-12040iAE111..LHD;AE111..ARL;AE112..LHD..XLI;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN)199704-200207
51441CCOVER, ENGINE UNDER, RH
main51408-12060iAE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE112,EE110..(4F,4FC,5F)..GEN;AE111..SED..(GL,GLI,XL,XLI)..GEN199704-200109
ROUGH ROAD PACKAGE
main51441-12150iAE110..TH;AE111..MA;AE112,EE111..SED..(GEN,IDN,MA,TH);AE111..SED..(GL,GLI,XL,XLI)..(GEN,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,PHL)199704-200008
BUMPER = TYPE C
main51441-12160iAE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN); AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN)199704-199807
BUMPER = TYPE B
51442CCOVER, ENGINE UNDER, LH
main51409-12040iAE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112,EE110..GEN,GENKD;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD)199704-200207
ROUGH ROAD PACKAGE
main51442-12100iAE111..5F..MA;AE110,112..5F..(IDN,TH);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL)..(GEN,PHL);AE111,EE111..SED..5F..(GL,GLI,XL,XLI)..(GEN,MA,PHL,TH); CE110..XL..GEN;AE110,111,EE11#..SED..MTM..GEN199705-200008
BUMPER = TYPE C
BUMPER = TYPE C
main51442-12120iAE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112..5F..(ARL,GCC,GEN,VEN);AE111,CE110..SED..5F..(GCC,GEN,TUR,VEN); EE111..5F..TUR;AE111,112,CE110,EE110..MTM..(ARL,GCC,GEN,NZ,TUR,VEN)199807-199910
BUMPER = TYPE B
main51442-12130iAE111,112,EE110..ATM..(GL,GLI,XL,XLI)..(GCC,GEN); AE112,EE110..LHD..ATM..(GCC,GEN);AE111..SED..ATM..(GL,GLI,XL,XLI)..(GCC,GEN)199704-199807
BUMPER = TYPE B
51961HOOK, NO.1
main51960-12060iEE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)199704-200208
51963BHOOK, TRANSPORT, FRONT RH
main51963-12210iAE110..4FC..GEN; CE110..XL..GEN;AE11#,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH); EE110..LHD..3FC;AE110,111,EE111..SED..GEN;CE110,EE110..MTM..(GL,STD,XL)..GEN199807-200008
51967HOOK, TRANSPORT, REAR
main51967-12220iAE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN)199704
51968BHOOK, TRANSPORT, REAR LH
52295BRACE, REAR SUSPENSION MEMBER, RH
main52295-12010iEE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN199505
9011906355
main90119-06355
9011910465
main90119-10465
9011910480
main90119-10480
9011910681
main90119-10681
9011914022
main90119-14022
9015960323
main90159-60323
9015960488
main90159-60488
9017906147
main90179-06147
9017910180
main90179-10180
9018906006
main90189-06006
9095001392
main90950-01392
91621B0816
main91621-B0816
91622B1018
main91622-B1018
91629B1225
main91629-B1225
91651B1018
main91651-B1018
91652B0820
main91652-B0820
91661B0820
main91661-B0820
28 parts on this diagram · 1 diagram in section
