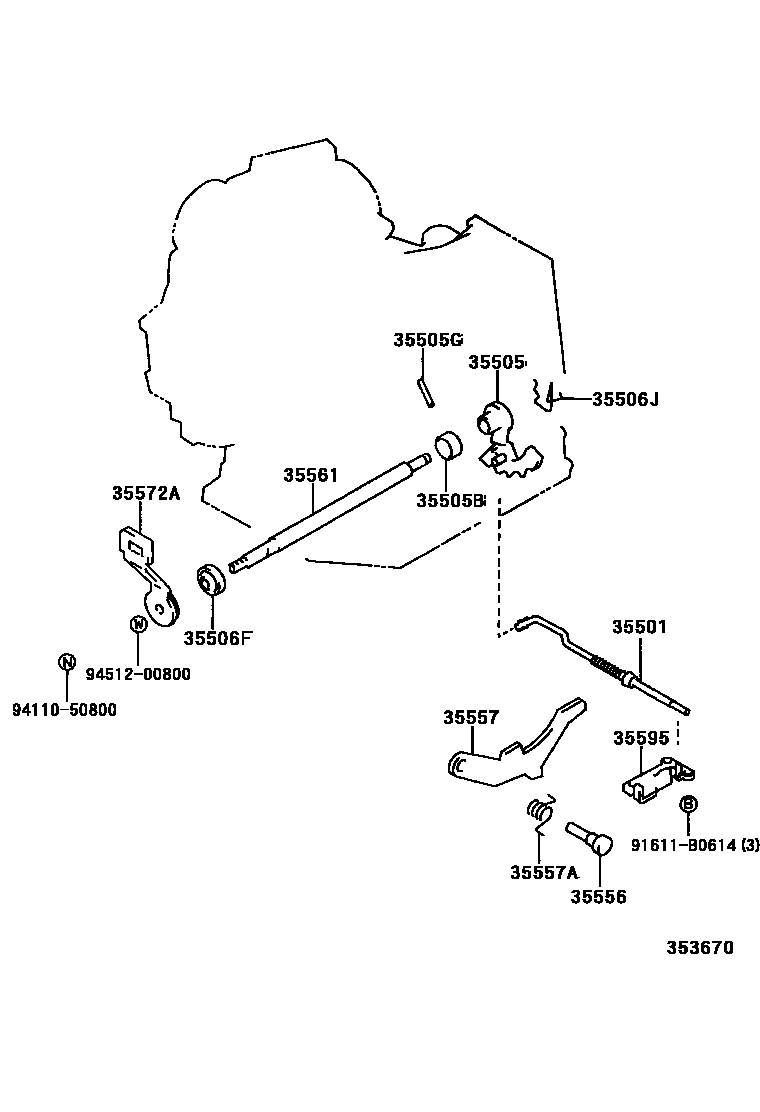

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A131L,A132L 0002 1A240L,A245E 0003 1A132L 0004 1A240L 0006 1A131L,A240L 0007 1A245E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG); AE110..4FC; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199904-200002

main35501-12030iAE111,112..4FC..(IDN,MA,PHL,TH); AE111,112..4FC..VEN200204-200207

main35501-32030iEE111..3FC..(MA,TUR)199910-200207

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iAE11#..4FC..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199809-199904

main35505-12060iAE111,112..4FC..VEN; AE112..4FC..IDN;AE111..4FC..(GLI,SEG)200204-200207

main35505-12070iZZE112..4FC200005-200112

main35505-12080iAE112..4FC..(PHL,TH)200112-200207

main35505-32040iAE111,EE11#..3FC199704-199910

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAE11#..4FC..(ARL,GCC,GEN,TUR,VEN); AE110..4FC; AE111,112,EE111..ATM..(BZ,IDN,MA,PHL,TH,TUR,VEN)199910-200002

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iEE111..3FC..(MA,TUR)199910-200207

main90524-11001iAE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG); AE110..4FC; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199904-200002

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAE110,111..SED..4FC;AE112..LHD..4FC..XLI;AE112..4FC..(GLI,SEG); AE110..4FC; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199904-200002

main35556-32010iEE111..3FC..(MA,TUR)199910-200207

35557PAWL, PARKING LOCK

main35557-12020iAE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..SED..4FC..(GCC,GEN,TUR,VEN)199505-199809

main35557-12030iAE111,112..4FC..(IDN,MA,PHL,TH); AE111,112..4FC..VEN200204-200207

main35557-32020iEE111..3FC..(MA,TUR)199910-200207

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAE111,112..4FC..VEN; AE112..4FC..IDN;AE111..4FC..(GLI,SEG)200201-200204

main90508-26047iAE111,EE11#..3FC..GEN199505-199910

main90949-03060iAE111,112..4FC..(IDN,MA,PHL,TH); AE111,112..4FC..VEN200204-200207

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iAE11#..4FC..(ARL,GCC,GEN,TUR); AE110..4FC; AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH,TUR)200002-200003

main35561-12030iAE112..4FC..(PHL,TH)199809-200112

main35561-32010iAE111,EE11#..3FC199704-199910

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12110iAE111,EE11#..3FC..GEN199505-199910

main35572-12120iAE11#..4FC..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199809-199904

main35572-12130iZZE112..4FC200005-200109

main35572-12150iAE112..4FC..(PHL,TH); ZZE112..4FC200109-200112

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAE111,EE11#..3FC..GEN199505-199910

91611B0614

main91611-B0614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 6 diagrams in section
