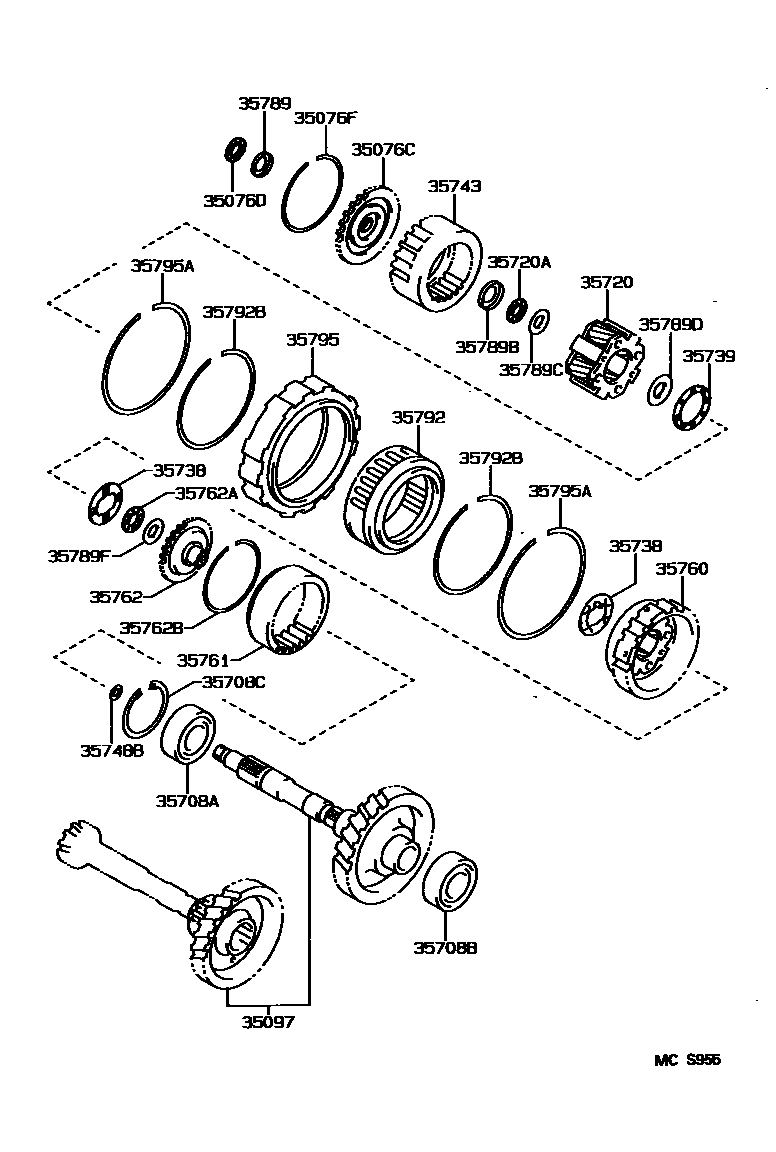

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A131L,A132L 0002 1A240L 0004 1A245E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iZZE112..4FC200005-200112

main35076-32011iAE110..4FC; AE112..4FC..(BZ,IDN,VEN);AE111..4FC..(MA,PHL,TH,TUR,VEN); EE111..3FC..GEN;AE11#,EE110..ATM..(ARL,GCC,GEN,TUR,VEN)199910-200002

main35076-32030iAE111,EE11#..3FC199704-199910

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iAE111,EE11#..3FC; EE111..3FC..GEN;AE111,EE110..LHD..3FC199801-199910

main90374-22005iAE11#..4FC..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199809-199904

main90374-25007iAE112..4FC..TH199809-199909

main90374-25009iZZE112..4FC200005-200112

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAE11#,EE11#..ATM; AE110..4FC; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199904-199910

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12040iAE111,EE11#..3FC..GEN199505-199910

main35097-12050iAE112..4FC..(PHL,TH)200112-200207

main35097-20010iAE11#..4FC..(ARL,GCC,GEN); AE110..4FC; AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)200003-200008

35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)

main90363-40024iAE11#,EE11#..ATM..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199904

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

main90363-40024iAE11#..4FC..(ARL,GCC,GEN); AE110..4FC; AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)200003-200008

main90363-40027iEE111..3FC..(MA,TUR)199910-200207

35708CRING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING)

main90521-76003iAE11#,EE11#..ATM..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199904

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iAE110,ZZE112..4FC;AE111..4FC..(GCC,GEN); AE110..4FC; AE111..4FC..(MA,PHL,TH)200003-200008

main35720-32010iAE111,EE11#..3FC..GEN;AE112..4FC..(ARL,GCC,GEN); AE112..4FC..(BZ,IDN,PHL,TH)200002-200008

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iAE111,EE11#..3FC; EE111..3FC..GEN;AE111,EE110..LHD..3FC199801-199910

main90374-22004iAE112..4FC..TH199809-199909

main90374-22005iAE111,112..4FC..(ARL,GEN,VEN); AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH)200008-200202

main90374-22009iAE111,112..4FC..(IDN,MA,PHL,TH)200206-200207

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010×2iAE110,111..SED..4FC..(GCC,GEN,TUR,VEN)199505-199809

main35738-32010×2iAE112,EE111..ATM..(BZ,IDN,MA,PHL,TH,TUR); AE112..4FC..(ARL,GCC,GEN)200002-200008

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iAE11#,EE11#..ATM; AE110..4FC; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199904-199910

35743GEAR, FRONT PLANETARY RING

main35743-32040iAE110..4FC..GEN; AE112,EE11#..ATM;AE110,111..ATM..(ARL,GCC,GEN,MA,NZ,PHL,TUR,VEN); EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199904

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iAE11#..4FC..(ARL,GCC,GEN,TUR); AE110..4FC; AE111,112,EE111..ATM..(BZ,IDN,MA,PHL,TH,TUR)200002-200003

35760GEAR ASSY, REAR PLANETARY

main35760-12020iAE110,111..4FC..(GCC,GEN,TUR,VEN); AE110,111..SED..4FC; AE110..4FC199904-200002

main35760-32010iAE111,EE11#..3FC..GEN;AE112..4FC..(ARL,GCC,GEN,VEN)199505-199910

35761GEAR, REAR PLANETARY RING

main35761-32010iAE11#..4FC..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; AE112..4FC..(ARL,GCC,GEN,VEN);AE110,111..4FC..(GCC,GEN,TUR,VEN)199809-199904

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iAE110..4FC..GLI;AE112,EE11#..ATM;AE111..ATM..(GL,GLI,XL,XLI);AE110,111..4FC..(SEG,XLI)..(MA,TH); EE110..LHD..3FC;AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111..SED..ATM..(GCC,GEN,TUR,VEN)199704-199809

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iAE112..4FC..(PHL,TH)200112-200207

main35789-32050iAE110,111,EE11#..ATM;AE112..4FC..(ARL,BZ,GCC,GEN,IDN,VEN); AE110..4FC; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199904-199910

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iAE11#,EE11#..ATM..(ARL,BZ,GCC,GEN,IDN,MA,NZ,PHL,TUR,VEN); AE110..4FC..GEN; EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199904

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAE110..4FC..GEN; AE112,EE11#..ATM;AE110,111..ATM..(ARL,GCC,GEN,MA,NZ,PHL,TUR,VEN); EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)199809-199904

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iAE11#..4FC..(ARL,GCC,GEN,TUR,VEN); AE110..4FC; AE112..4FC..(BZ,IDN,VEN);AE111,EE111..ATM..(MA,PHL,TH,TUR,VEN)199910-200002

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

35792CLUTCH, 1 WAY, NO.2

main35792-12010iEE111..3FC..(MA,TUR)199910-200207

main35792-32011iAE110..4FC; AE111,112..4FC..(BZ,IDN,MA,PHL,TH); AE111..4FC..(GCC,GEN);AE110,112,ZZE112..4FC..(ARL,GCC,GEN,TUR)200003-200008

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iAE11#..4FC..(ARL,GCC,GEN,TUR,VEN); AE110..4FC; AE111,112,EE111..ATM..(BZ,IDN,MA,PHL,TH,TUR,VEN)199910-200002

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iZZE112..4FC200005-200112

main35795-32010iAE11#..4FC..(ARL,GCC,GEN,TUR); AE110..4FC; AE112..4FC..(BZ,IDN);AE111..4FC..(MA,PHL,TH,TUR)200002-200003

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iAE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)199505-199809

27 parts on this diagram · 3 diagrams in section
