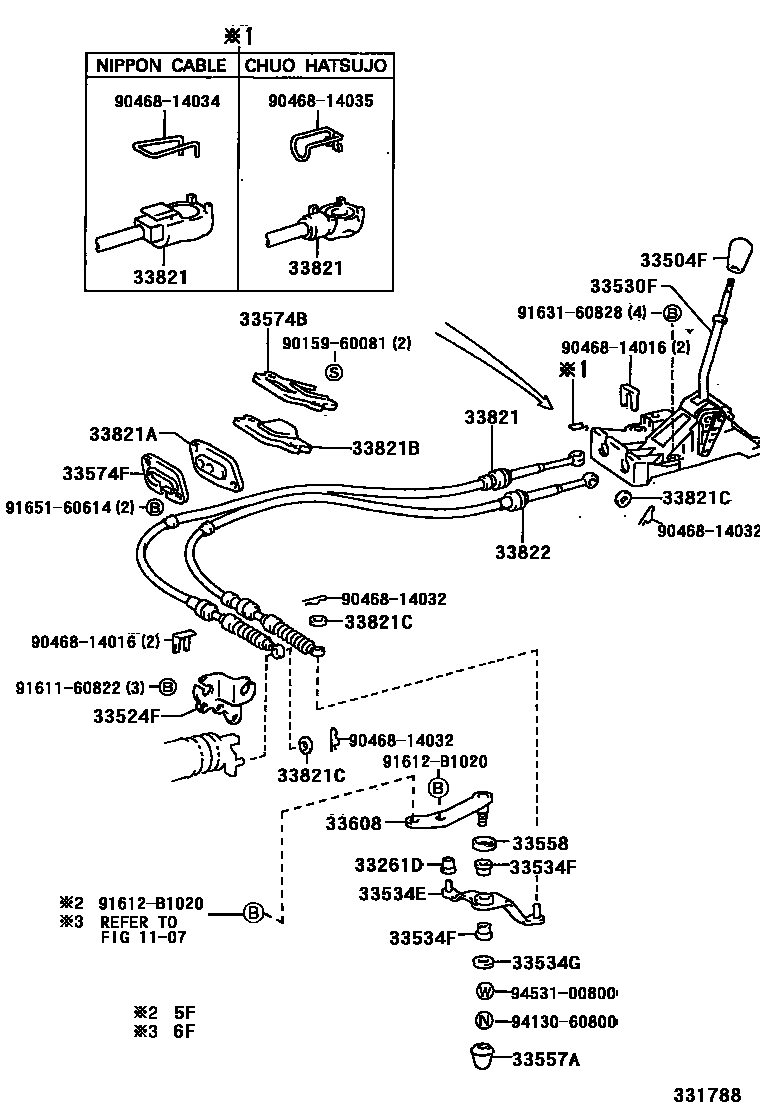

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1107MOUNTING

→ Go to FIG 11-07

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-199808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B4iAE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN; EE110..GCC;EE111..VEN;AE111..RHD..WG;AE111..5F..(GCC,TUR,VEN);AE112..5F..(ARL,GCC,GEN,VEN)199704-199910

DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM10

main33504-12180-B5iAE110..5F..GLI;EE111..5F..GEN; AE111,CE110,EE110..SED..5F..(GL,GLI,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM14

main33504-12180-E3iAE110..5F..GLI;AE111..5F..SEG199505-199704

OAK,TRIM4#

main33504-12180-P0iAE11#,EE111..5F..(IDN,MA,TH)199711-200207

SHADOW GRAY,TRIM1#

main33504-14040-B1iEE110..STD..GEN199910-200008

MD.CHARCOAL,TRIM9#

main33504-14040-B2iEE110..STD..GEN199910-200109

DK.CHARCOAL,TRIM14

main33542-12210-B0iAE11#,EE111..ATM..(IDN,MA,TH)199711-200207

SHADOW GRAY,TRIM1#

main33542-12210-B2iAE110..4FC..GLI;EE111..3FC..GEN; AE111,EE110..RHD..ATM..(GL,GLI,XL,XLI)..GEN; AE111..RHD..4FC..(GL,GLI,XL,XLI)..GEN199704-199910

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM14

main33542-12210-B4iAE111,EE110..RHD..ATM..(GL,GLI,XL,XLI)..GEN; AE111..RHD..4FC..(GL,GLI,XL,XLI)..GEN199704-199910

DK.CHARCOAL,TRIM10

main33542-12210-E0iAE111..4FC..SEG199704-199712

OAK,TRIM4#

main33542-12230-B0iAE111,112..4FC..PHL199711-200207

MD.CHARCOAL,TRIM1#

main33542-12230-B1iAE111,EE110..LHD..SED..ATM..GEN; AE111..4FC..(GCC,TUR,VEN);AE112..4FC..(GCC,GEN,VEN)199704-199910

DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM10

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAE110,111,EE11#..MTM;AE112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN); EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE11#..5F..(GCC,GEN,TUR,VEN)199808-200112

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02040iAE111,112,EE11#..MTM..(BZ,GENKD,PHL,TUR)200002

(L)

main33530-12630iAE111..5F..MA;AE110,112..5F..XLI..(IDN,TH);AE111,EE111..RHD..5F..(GL,GLI,XL,XLI);AE110,112,CE110,EE110..RHD..5F..(GL,GLI,SEG,XL)199704-200207

main33530-12681iAE111,112,CE110,EE110..LHD..MTM..(GCC,GEN); AE111,112,EE11#..MTM..(BZ,GENKD,PHL,TUR,VEN); AE112,EE111..5F..VEN;AE111..5F..(TUR,VEN)199910-200002

(J)

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iAE111,112,EE111,ZZE11#..5F..(TUR,VEN)200111-200208

main33534-16051iAE110,111..5F;AE112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN); AE112..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE112..5F..(GCC,GEN,TUR,VEN)199808-200111

main33534-33010iCE110..GEN199704-200109

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iAE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN)199505-199808

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAE111,112,EE111..5F..VEN200112-200208

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN)199505-199808

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAE110,111,EE11#..MTM;AE112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN); EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE11#..5F..(GCC,GEN,TUR,VEN)199808-200112

main33558-32010iCE110..GEN199704-200109

33574BRETAINER, SHIFT CABLE GROMMET, NO.2

main33574-12060iAE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-12080iAE11#,EE11#199505-199704

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-10032iEE11#..MTM..(GENKD,MA,PHL)200112

main33608-16021iAE110,111..5F;AE112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN)199808-200207

main33608-33010iCE110..GEN199704-200109

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-12720iAE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI)199704-199910

CHUO HATSUJO

main33821-12730iAE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI)199704-199910

NIPPON CABLE

main33821-12740iCE110199704-199910

main33821-12810iAE111,EE11#..MTM..(GCC,GEN);AE110,112,ZZE11#..5F..(ARL,GCC,GEN,TUR)199910-200201

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90480-01400iAE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)199704

33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)

main90480-01398iAE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)199704

main90480-01672iAE11#,ZZE112..ATM..(ARL,GCC,GEN,TUR,VEN); AE110..4FC199910

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077×2iEE111..VEN;AE112,CE110..SED..5F..XLI..(ARL,GEN)199909-200208

OD=30

main90201-10042iAE112,EE111..LHD..5F..(SEG,STD)199909-200207

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-12290iAE111,112,EE11#..MTM..(BZ,GENKD,IDN,MA,PHL,TH,TUR,VEN)199910

main33822-12310iCE110..GEN199704-200109

main33822-12400iAE111,EE11#..MTM..(GCC,GEN);AE110,112,ZZE11#..5F..(ARL,GCC,GEN,TUR)199910-200201

9015960081

main90159-60081

9046814016

main90468-14016

9046814032

main90468-14032

9046814034

main90468-14034

9046814035

main90468-14035

9161160822

main91611-60822

91612B1020

main91612-B1020

9163160828

main91631-60828

9165160614

main91651-60614

9413060800

main94130-60800

9453100800

main94531-00800

29 parts on this diagram · 7 diagrams in section
