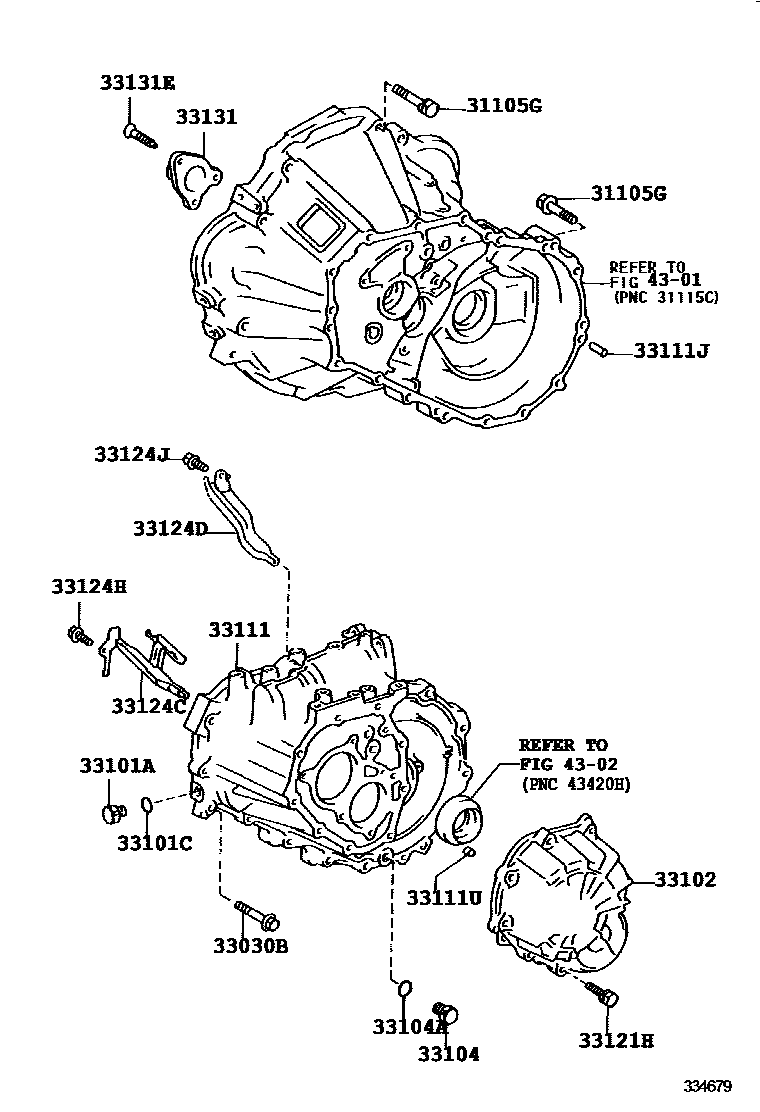

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C52 0002 1C140,C150 0003 1S50

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE110199704-200109

*8-1.25PX18-15

main90105-10077iAE110..5F..TH;AE111..5F..MA;AE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110..5F..(GLI,SEG,XL)199505-200208

*10-1.25PX43-26

main90105-10097iEE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199505-200208

*10-1.25PX60-22

main90119-12042iAE111..RHD..WG..5F;AE112..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

*12-1.25PX75-30

main90119-12168iCE110..GEN199505-200208

*12-1.25PX55-30

main91612-41025iEE11#..MTM199505-200208

*10-1.25PX25-25

main91619-61260iEE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199505-200208

*12-1.25PX60-30

main91621-60614iEE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199505-200208

*6-1.00PX14-14

main91642-81055iZZE11#..5F200005-200201

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE110..GEN199704-200109

*8-1.25PX45-27.5

main90105-08064iAE112..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE112..5F..(GCC,GEN,TUR,VEN)199704-200208

*8-1.25PX51-28

main90105-08086iEE11#..MTM..(GENKD,MA,PHL)199505-200208

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,CE110,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI)199505-200208

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..5F..(GCC,GEN,TUR,VEN)199505-200208

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10014iEE110..STD..GEN199704-200207

main33102-10023iEE111..VEN199505-200208

main33102-12021iAE112..5F;AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE111..5F..(GL,GLI,XL,XLI)199505-200208

main33102-33020iCE110..GEN199704-200109

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..5F..(GCC,GEN,TUR,VEN)199505-200208

33111CASE, MANUAL TRANSMISSION

main33111-16051iEE11#..5F199505-199704

main33111-16052iEE11#..MTM199704-199907

main33111-16053iEE111..VEN199907-200208

main33111-16061iAE11#..5F199505-199704

main33111-16062iAE112..5F;AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE111..5F..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-199907

main33111-16063iAE111..5F..TUR199807-200208

main33111-32030iCE110199704-200109

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE11#..5F..(GCC,GEN,TUR,VEN)199505-200208

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE111..RHD..WG;AE112..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iCE110..GEN199704-200109

main90119-08A34iZZE111;EE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199505-200208

main91611-60835iAE112..5F;AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE111..5F..(GL,GLI,XL,XLI)199505-200208

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iEE111..VEN199505-200208

main33124-12012iAE11#..5F..(ARL,BZ,GCC,GEN,GENKD,MA,NZ,PHL,TH,TUR,VEN)199505-199907

main33124-20050iAE111,112,ZZE11#..5F..(BZ,GENKD,MA,PHL,TH,TUR)199907-200208

main33124-33010iCE110..GEN199704-200109

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iEE11#..5F199505-200208

main33124-12021iAE111..RHD..WG;AE112..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iEE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE11#..5F..(GCC,GEN,TUR,VEN)199505-200208

main91651-60618iCE110..GEN199704-200109

33124JBOLT, W/WASHER

main91611-G0820iAE110,111,EE11#..5F;AE112..LHD..5F..XLI;AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,NZ,PHL,TH,VEN)199505-200208

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE11#..5F199505-199607

main33131-12080iAE112..5F..(ARL,GCC,GEN,VEN);AE110,111..5F..(GCC,GEN,TUR,VEN)199607-200208

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE111..RHD..WG;AE112..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN)199505-200208

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

19 parts on this diagram · 3 diagrams in section
