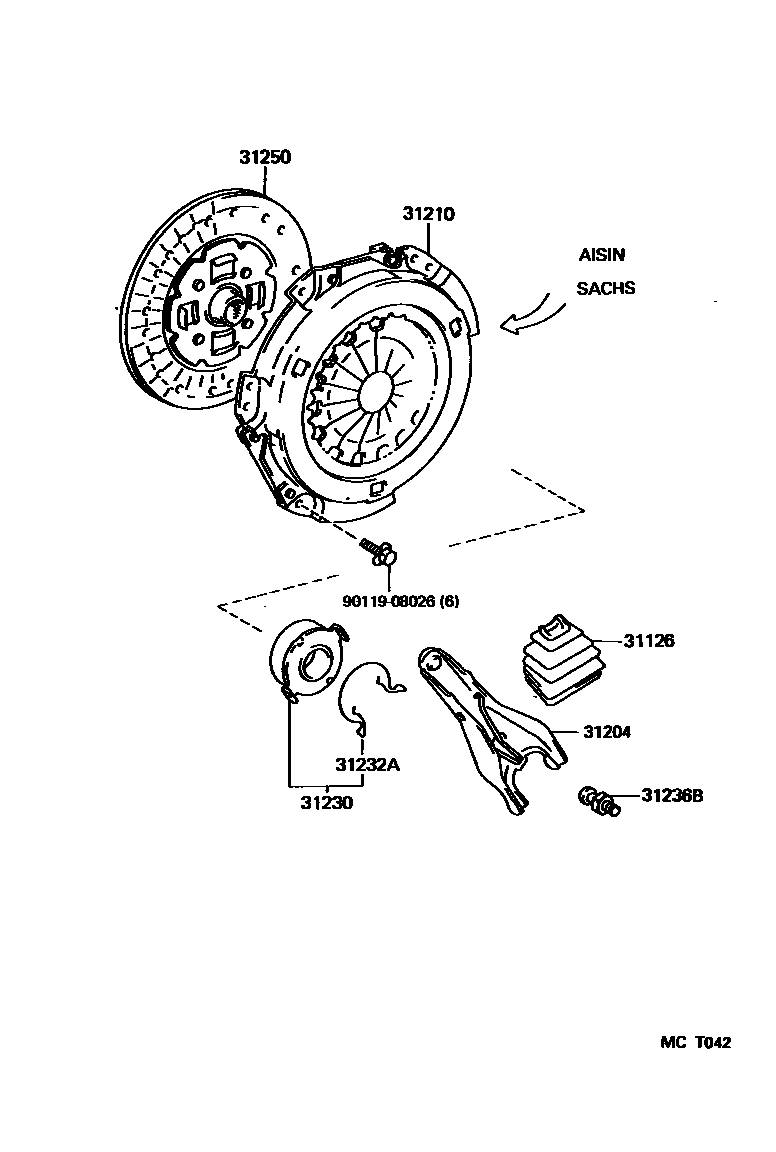

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE110..5F..TH;AE111..5F..MA;AE110,112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE11#..MTM..(GL,GLI,STD,XL,XLI)199704-200112

main31126-32010iCE110..GEN199704-200109

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEE11#..MTM199704-200112

main31204-17010iAE111,112..5F..VEN200112-200208

main31204-20100iCE110199704-199910

31210COVER ASSY, CLUTCH

main31210-02040iZZE111200005-200201

LUK

main31210-05011iAE111..5F..TUR199807-199812

main31210-05012iAE111..5F..TUR199812-199903

main31210-05013iAE111,ZZE112..5F..TUR199903-200106

VALEO

main31210-05014iZZE112..5F200106-200201

main31210-0B020iAE112..5F..IDN199812-200207

main31210-0W010iEE111..5F..(GEN,VEN)199505-199910

SACHS

main31210-12152iAE112..5F; AE112..5F..(ARL,GCC,GEN,VEN)199704-199812

main31210-12180iEE111..5F..(MA,TUR,VEN); EE111..VEN199910-200002

AISIN

main31210-12191iAE110..5F..TH;AE110..5F..GLI199704-199812

main31210-12201iZZE112..5F;AE111..RHD..WG..5F;AE111..SED..5F..(GCC,GEN,VEN)199505-200208

AISIN

main31210-12210iZZE111200005-200201

AISIN

main31210-32121iCE110..GEN199704-200109

31230BEARING ASSY, CLUTCH RELEASE

main31230-05010iAE111..5F..TUR199807-199911

main31230-05011iAE111..5F..TUR199911-200005

main31230-12140iEE11#..MTM199505-199907

main31230-12170iAE111..RHD..WG..5F;AE111..SED..5F..(GCC,GEN,VEN);AE110,112,ZZE112..5F..(ARL,GCC,GEN,TUR,VEN)199505-200101

main31230-12171iAE111,112,ZZE112..5F..(ARL,GEN,TUR,VEN)200101-200112

main31230-12191iAE111,112..5F..VEN200201-200208

main31230-32060iCE110..GEN199704-200109

main31230-52010iEE11#..MTM..(GENKD,MA,PHL)200112

31232ACLIP, RELEASE BEARING HUB

main31232-05010iAE111..5F..TUR199807-200005

TYPE H:REFER TO ILLUSTRATION

main31232-12040iEE111..VEN200112-200208

TYPE A:REFER TO ILLUSTRATION

main31232-12050iAE112..5F..IDN199809-200207

TYPE B:REFER TO ILLUSTRATION

main31232-12060iAE111..5F..SEG;AE110..5F..XLI..GEN199704-199712

TYPE C:REFER TO ILLUSTRATION

main31232-12070iAE111..RHD..WG..5F;AE111..SED..5F..(GCC,GEN,VEN);AE110,112,ZZE112..5F..(ARL,GCC,GEN,TUR,VEN)199505-200112

TYPE D:REFER TO ILLUSTRATION

main31232-16031iEE110..MTM; EE110..MTM..(GCC,GEN)199711-199712

TYPE E:REFER TO ILLUSTRATION

main31232-20020iCE110; CE110..GEN199704-199910

TYPE F:REFER TO ILLUSTRATION

main31232-32050iCE110..GEN199704-200109

TYPE G:REFER TO ILLUSTRATION

main31232-52010iEE11#..MTM; ZZE111;EE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN)199907-200112

TYPE I:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12011iEE11#..MTM..(GENKD,MA,PHL)200112

main31236-12020iAE111,112..5F..VEN200112-200208

main31236-32010iCE110..GEN199704-200109

31250DISC ASSY, CLUTCH

main31250-02040iZZE111200005-200201

LUK

main31250-05011iAE111..5F..TUR199807-199812

main31250-05012iAE111..5F..TUR199812-200005

VALEO

main31250-05060iZZE112..5F200011-200201

VALEO

main31250-0A010iAE112..5F..IDN199812-200207

main31250-0W010iEE111..5F199505-199602

SACHS

main31250-0W011iEE111..5F..GEN199602-199804

SACHS

main31250-0W012iEE111..5F..(MA,TUR,VEN); EE111..VEN199910-200002

SACHS

main31250-10120iEE110..5F; EE111..5F199505-199509

AISIN

main31250-12282iCE110199704-199910

main31250-12360iAE112..5F; AE112..5F..(ARL,GCC,GEN,VEN)199704-199812

main31250-12370iAE110..5F199505-199511

main31250-12380iAE111..5F199505-199511

main31250-12390iEE110..MTM..(GCC,GEN); EE111..5F..GEN199509-199804

AISIN

main31250-12391iEE110..MTM; EE110..MTM..(GCC,GEN); EE111..5F; EE111..5F..(GEN,VEN)199804-199910

AISIN

main31250-12392iEE110200206

main31250-20280iAE110..5F..GLI199608-199708

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
