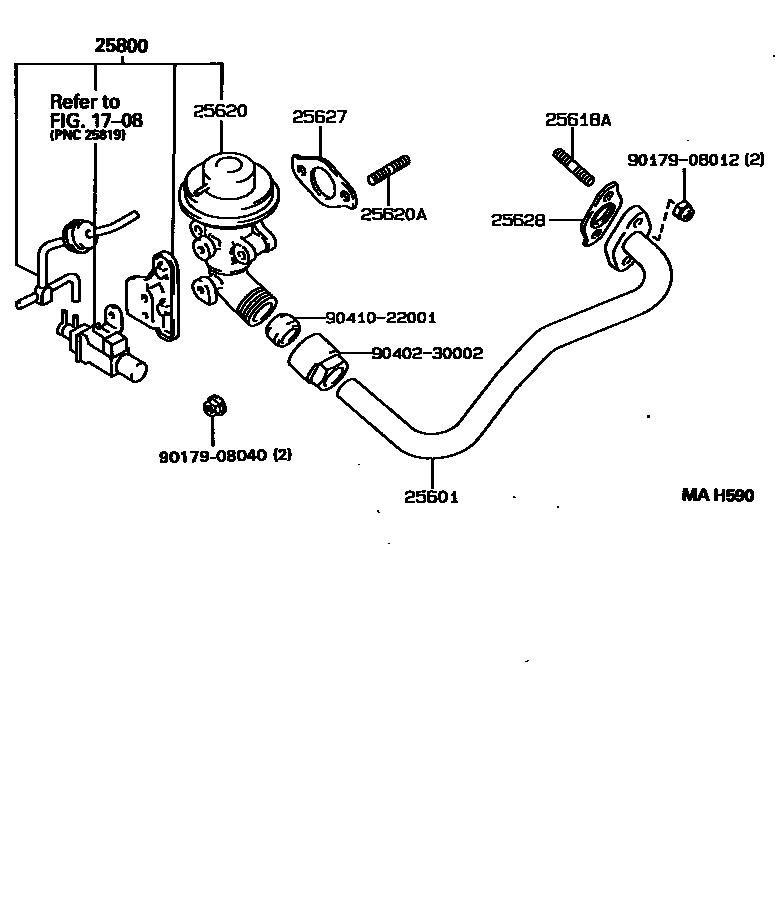

EXHAUST GAS RECIRCULATION SYSTEM

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64071i2CE..CE110199710-199810

25618ABOLT, STUD(FOR EGR INLET)

main92122-60822×2i2CE..CE110199910-200010

25620VALVE ASSY, EGR

main25620-64200i2CE..CE110199910-200010

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08198×2i2CE..CE110199710-199810

25627GASKET, EGR VALVE

main25627-64030i2CE..CE110199710-199810

25628GASKET, EGR INLET

main25628-64030i2CE..CE110199710-199810

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-64150i2CE..CE110199710-199808

main25800-64151i2CE..CE110199910-200010

9017908012

main90179-08012

9017908040

main90179-08040

9040230002

main90402-30002

9041022001

main90410-22001

12 parts on this diagram · 1 diagram in section
