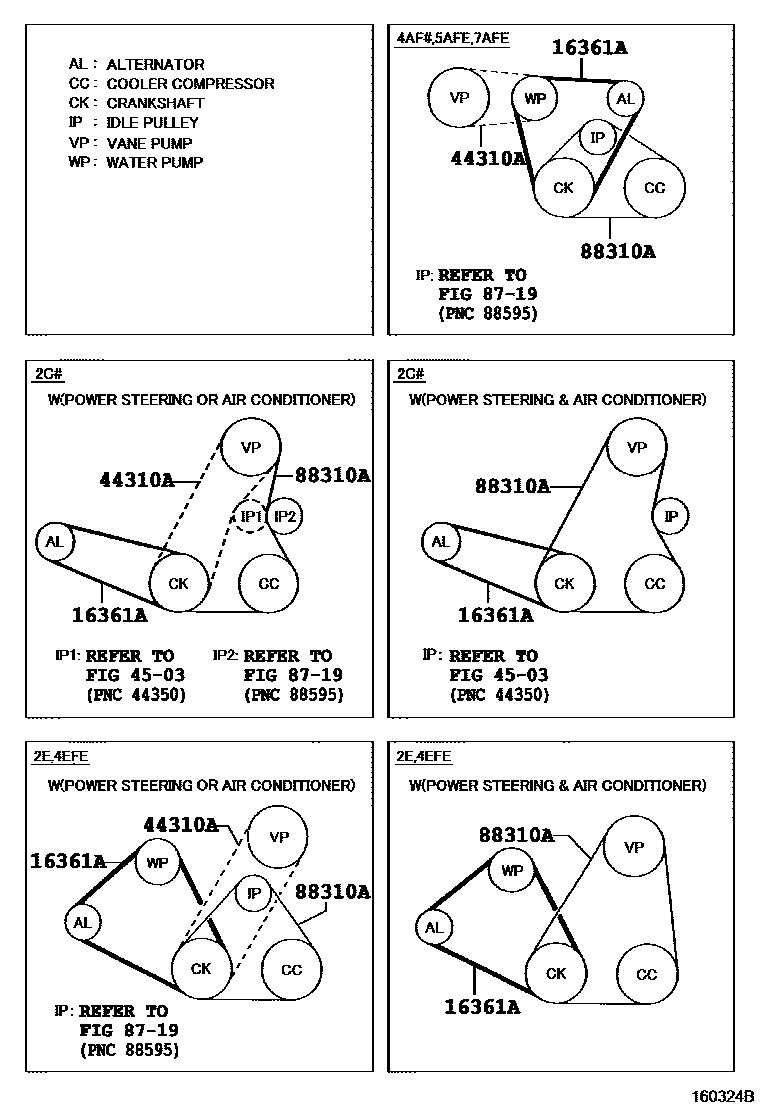

V-BELT

0001 1 0002 1

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i4AF,5AFE..AE110,111;4AFE,7AFE..AE111,112..ARL,BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TUR,VEN; 5AFE..AE110..4FC..GEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,TUR,VEN199808-199901

L=970,(L)

main90916-02372i2C#..CE110199704-199910

L=940

main90916-02469i3ZZFE,4ZZFE..ZZE11#200005-200201

L=1560

main90916-02470i3ZZFE,4ZZFE..ZZE11#200005-200201

L=1840

main99364-20820i2E,4EFE..EE11#..GCC,GEN; 2E,4EFE..EE11#..GENKD,MA,PHL,TUR200002-200105

main99364-30820i2E,4EFE..EE11#..GENKD,MA,PHL200105

main99365-20970i5AFE..AE110..4FC; 7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,TUR,VEN199901

L=970,(J)

44310ABELT, V(FOR VANE PUMP)

main90080-91051iAE11#..ARL,GCC,GEN,TUR,VEN; AE110..4FC200002

L=630,(L)

main90080-91160iEE111..TUR199907-200005

L=890

main99363-80630iAE11#199505-199605

main99363-90630iAE11#..ARL,GCC,GEN,TUR; AE110..4FC; AE111,112..VEN; AE111..TUR;AE112..BZ,PHL; AE112..IDN,TH,VEN;AE111..GENKD,MA,PHL,TH,VEN199910-200002

L=630; L=630,(J)

main99365-30890iEE11#..(3FC,5F)..GEN199910-200109

L=890,MITSUBOSHI

main99365-30910iEE110..LHD..(GL,XL)..(GCC,GEN)199801-200109

L=910,MITSUBOSHI

main99365-80910iEE11#199505-199605

L=910

main99365-80920iEE11#199505-199605

L=920

main99365-90890iEE111..GEN;EE110..5F..GEN;EE110..LHD..3FC; EE111..XLI;EE110..GENKD;EE110..(GL,XL)..GEN199704-199907

L=890

main99365-90910iEE11#199605-199704

L=910

main99365-90920iEE110..LHD..(GL,XL)..(GCC,GEN)199910-200109

L=920

main99365-91110iCE110..GEN199704-200109

L=1110

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354iAE111..GL,XL;AE11#..BZ,IDN,MA,TH,TUR199704-200207

L=860

main99364-20850iAE110..GLI;AE111..GCC,PHL;AE112..XLI..BZ;AE112..ARL,GCC,GEN,NZ;AE111..RHD..(GLI,XLI)..(ARL,GEN); AE110..GLI;AE111..GCC;AE112..ARL,GCC,GEN;AE111..RHD..(GLI,XLI)..GEN; AE111..LHD..(GL,XL)199704-199910

L=850; L=850,W(OIL COOLER)

main99364-20870iAE111,112..VEN199805-200002

L=870

main99365-20880iEE111..GEN;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)199704

L=880,MITSUBOSHI

main99365-21050iEE111..GEN;EE110..LHD..(GL,XL)..GEN199910-200109

L=1050

main99365-21060iEE110..LHD..(GL,XL)..GEN199908-199910

L=1060,W(POWER STEERING),L=1060

main99365-21070iEE111..GEN199704-199910

W(POWER STEERING),DEALER 0PT

main99365-21080iEE11#199505-199704

W(POWER STEERING)

main99365-21190iCE110..NZ199710-199810

L=1190

main99365-80880iEE111..GEN;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,TUR)199704

L=880,BANDO

main99365-80890iEE111..GEN199704-199910

MALAYSIA SPEC

main99365-81120iCE110..GEN;EE111..VEN199704-200208

L=1120
