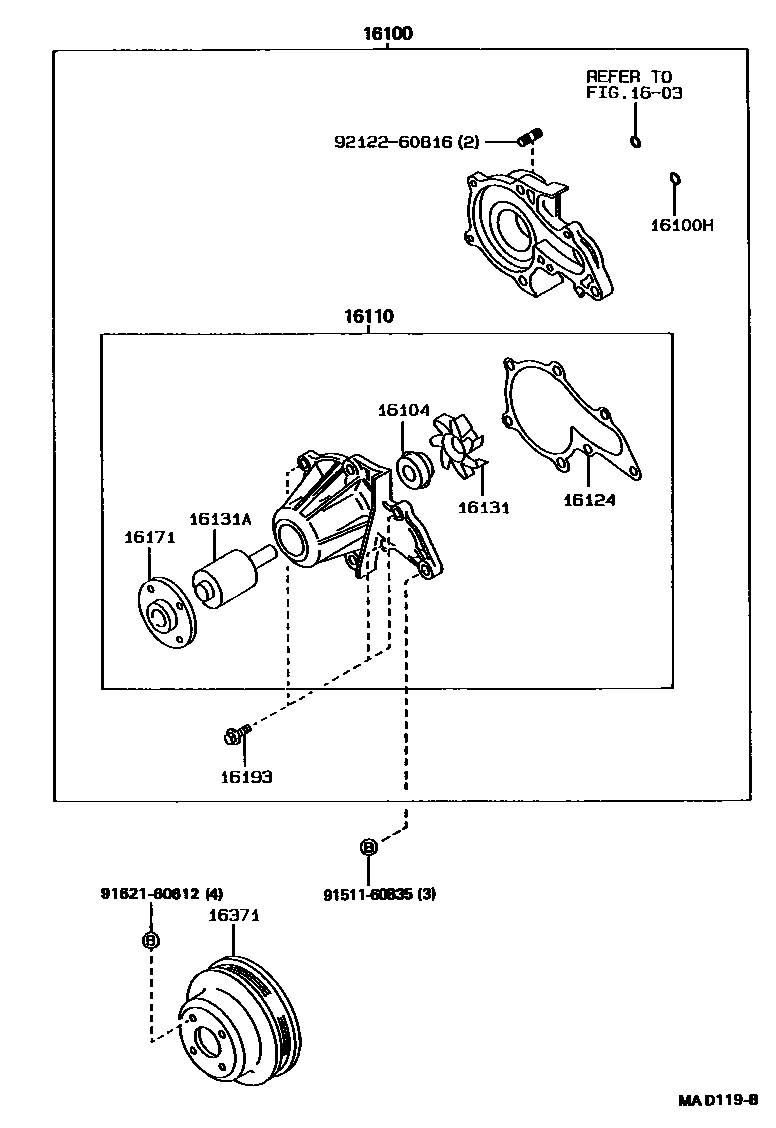

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09050i4AFE..AE111..TUR199807-199812

main16100-09051i4AFE..AE111..TUR199812-200005

main16100-09110i4AFE..AE111..TH199808-200207

SIAM AISIN

main16100-09120i4AFE..AE111..WG..5F;4AFE,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,VEN)199901-200207

SIAM AISIN

main16100-09130i3ZZFE,4ZZFE..ZZE11#200005-200201

(L)

main16100-19205i4AF..AE111199704-199910

main16100-19226i2E..EE110..GCC,GEN;4EFE..EE111..GEN,VEN199505-200002

main16100-19295i4AFE..AE111..GCC,GEN,VEN; 4AFE..AE111..TH;5AFE..AE110..GEN; 5AFE..AE110..GEN; 5AFE..AE110..TH;4AFE..AE111..ARL,GCC,GEN,GENKD,MA,PHL,VEN199811-199901

AISIN SEIKI

main16100-19305i7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);7AFE..AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,PHL,VEN)199704-200207

main16100-19315i7AFE..AE112..TH199711-200207

main16100-29095i3ZZFE,4ZZFE..ZZE11#200005-200107

(J)

main16100-29175i3ZZFE,4ZZFE..ZZE11#200107-200201

(J)

main16100-69296i2C#..CE110; 2C..CE110199704-199811

main16100-69298i2C#..CE110199811-200012

main16100-69435i2C..CE110200012-200109

16100HRING, O(FOR WATER PUMP)

main90301-69006i3ZZFE,4ZZFE..ZZE11#200005-200201

main96761-24035i5AFE..AE110..4FC..GEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,TUR,VEN199811

16104SEAL SET, WATER PUMP

main16104-16040i4AFE..AE111..NZ199710-199810

TMCA

main16104-46060i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN; 7AFE..AE112;5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..(GLI,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH,VEN)199708-199901

main16104-54030i4AFE,5AFE..AE11#..XLI199505-199605

main16104-74010i4AFE,5AFE..AE11#..GLI,SEG; 4AFE,5AFE..AE11#..XLI199505-199605

W(POWER STEERING)

16110PUMP ASSY, WATER, W/O COUPLING

main16110-09020i4AFE..AE111..TUR199807-199812

main16110-09021i4AFE..AE111..TUR199812-200005

main16110-19076i4AF..AE111199704-200109

AISIN SEIKI

main16110-19086i4AF..AE111199704-200109

AISAN

main16110-19106i2E,4EFE..EE11#199505-199611

main16110-19107i2E,4EFE..EE11#..GENKD,MA,PHL,TUR200002

main16110-19145i4AFE,5AFE..AE11#199505-199610

AISAN

main16110-19146i4AFE,5AFE..AE110,111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199610

AISAN

main16110-19176i7AFE..AE112..PHL199910-200207

AISIN

main16110-19185i7AFE..AE112..ARL,BZ,GCC,GEN,IDN,NZ,VEN; 7AFE..AE112..ARL,GCC,GEN,VEN199704-199901

AISIN SEIKI

main16110-19205i4AFE..AE111..TH;5AFE..AE110..4FC;5AFE..AE110..5F..TH; 5AFE..AE110..4FC..GEN; 5AFE..AE110..5F..GEN;4AFE..AE111..ARL,GCC,GEN,GENKD,MA,NZ,PHL,VEN; 5AFE..AE110..5F..GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199807-199910

AISIN SEIKI

16124GASKET, WATER PUMP COVER

main16124-02010i4AFE..AE111..TUR199807-200005

main16124-10013i2E,4EFE..EE11#199704-200002

main16124-15061i4AF..AE111199704-200109

AISAN

main16124-15110i5AFE..AE110..4FC; 5AFE..AE110..4FC;4AFE,7AFE..AE111,112..IDN,TH; 5AFE..AE110..5F;4AF#,7AFE..AE111,112..ARL,BZ,GCC,GEN,GENKD,MA,PHL,VEN; 5AFE..AE110..5F;4AF#..AE111..GCC,GEN,VEN;7AFE..AE112..ARL,GCC,GEN,VEN199901-199910

AISIN SEIKI

main16124-16020i4AF..AE111199910-200109

main16124-16060i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN199505-199901

AISAN

16131ROTOR, WATER PUMP

main16131-10013i2E,4EFE..EE11#199704-200002

main16131-15070i4AF..AE111199704-199910

AISAN

main16131-15080i2E,4EFE..EE11#199505-199611

main16131-16020i4AFE,5AFE..AE11#199505-199605

main16131-16090i7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,VEN199901

16131ABEARING, WATER PUMP

main90029-36809i2E,4EFE..EE11#199505-199611

main90029-36846i4AFE..AE111..TH199704-199808

main90029-36850i2E,4EFE..EE11#..GENKD,MA,PHL,TUR200002

main90369-35071i4AF..AE111;4AFE..AE111..NZ199704-199910

TMCA

16171SEAT, WATER PUMP PULLEY

main16171-10012i5AFE..AE110..4FC; 5AFE..AE110..4FC;4AFE,7AFE..AE111,112..IDN,TH; 5AFE..AE110..5F;4AF#,7AFE..AE111,112..ARL,BZ,GCC,GEN,GENKD,MA,PHL,VEN; 5AFE..AE110..5F;4AF#..AE111..GCC,GEN,VEN;7AFE..AE112..ARL,GCC,GEN,VEN199901-199910

AISIN SEIKI

main16171-15070i4AFE,5AFE..AE11#199505-199610

AISAN

main16171-15071i7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,VEN199901

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-02020×4i4AFE..AE111..TUR199807-200005

main16193-15011×4i4AFE,5AFE,7AFE..AE11#..TH199711-199807

main16193-15100×4i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN199505-199901

AISAN

16371PULLEY, FAN

main16371-02030i4AFE..AE111..WG..5F;4AFE..AE111..LHD..5F..XLI;4AFE..AE111..GLI..(GEN,TUR);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..4FC..XLI..(GCC,GEN,TUR,VEN); 5AFE..AE110..4FC199901

(L)

main16371-15060i4AFE..AE111..RHD..XLI..GEN;4AF,5AFE,7AFE..AE11#..(XL,XLI)..GEN;4AFE..AE111..LHD..SED..XLI..(GCC,GEN)199505-199811

main16371-15070i4AFE,5AFE..AE11#..GLI,SEG; 4AFE,5AFE..AE11#..XLI199505-199604

(J); W(POWER STEERING),(J)

main16371-15071i4AFE,5AFE..AE110,111..XLI..TH199711-199811

W(POWER STEERING)

9151160835

main91511-60835

9162160612

main91621-60612

9212260816

main92122-60816

14 parts on this diagram · 5 diagrams in section
