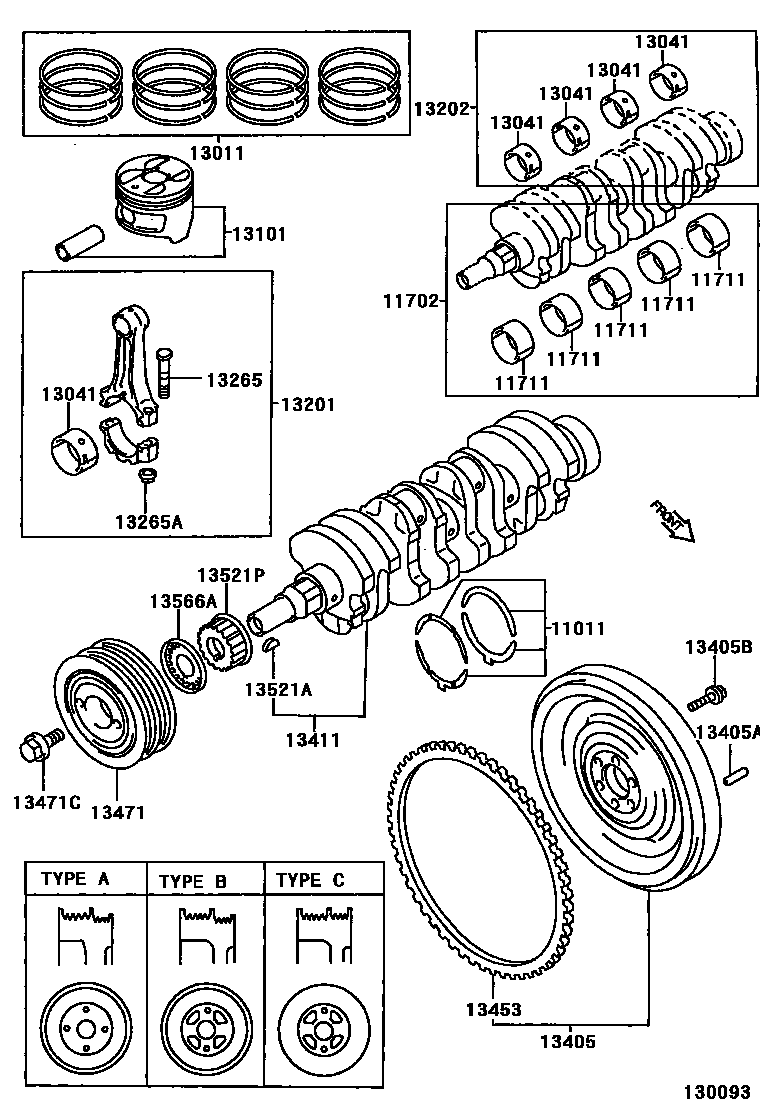

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
main11011-15010i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..GCC,GEN;4AFE..AE111..LHD..SED..(GCC,GEN)199505-199712
STD
main11011-15020i4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF#,5AFE..AE110,111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN)199712-200207
STD
STD
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
U/S 0.25,(L)
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 4,(L)
MARK 1
MARK 2
MARK 3
MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4
MARK 5
main11701-16010-01×5i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
MARK 1
MARK 2
main11701-16010-03×5i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
MARK 3
MARK 4
main11701-16010-05×5i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
MARK 5
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
MARK 4,(J)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
13011RING SET, PISTON
STD
STD,(L)
STD,(L)
STD
STD
STD
STD
STD
STD
STD
STD
STD
STD
STD,(J)
STD,(J)
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
main13013-16300i4AFE..AE111..TUR;7AFE..AE112..VEN; 7AFE..AE112..TH,VEN;4AFE..AE111..MA,TH,TUR199909-199910
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 1,(L),MARK 1
MARK 2,(L),MARK 2
MARK 3,(L),MARK 3
MARK 1
MARK 2
MARK 3
main13041-15030-01×4i4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505
MARK 1
main13041-15030-02×4i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AF,5AFE..AE110,111..GL,GLI,XL;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
MARK 2
main13041-15030-03×4i4AFE..AE111..RHD..GEN;4AF,5AFE..AE110,111..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN)199505
MARK 3
MARK 1
MARK 2
MARK 3
MARK 1,(J),MARK 1
MARK 2,(J),MARK 2
MARK 3,(J),MARK 3
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD
STD
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MALAYSIA SPEC,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
main13101-16200-01×4i4AFE..AE111..4FC..GLI; 4AFE..AE111..4FC..SEG; 4AFE..AE111..5F..GLI; 4AFE..AE111..5F..SEG199505-199704
STD,MALAYSIA OR THAILAND SPEC,MARK 1; STD,MALAYSIA SPEC,MARK 1; STD,SINGAPORE OR THAILAND SPEC,MARK 1; STD,SINGAPORE SPEC,MARK 1
main13101-16200-02×4i4AFE..AE111..4FC..GLI; 4AFE..AE111..4FC..SEG; 4AFE..AE111..5F..GLI; 4AFE..AE111..5F..SEG199505-199704
STD,MALAYSIA OR THAILAND SPEC,MARK 2; STD,MALAYSIA SPEC,MARK 2; STD,SINGAPORE OR THAILAND SPEC,MARK 2; STD,SINGAPORE SPEC,MARK 2
main13101-16200-03×4i4AFE..AE111..4FC..GLI; 4AFE..AE111..4FC..SEG; 4AFE..AE111..5F..GLI; 4AFE..AE111..5F..SEG199505-199704
STD,MALAYSIA OR THAILAND SPEC,MARK 3; STD,MALAYSIA SPEC,MARK 3; STD,SINGAPORE OR THAILAND SPEC,MARK 3; STD,SINGAPORE SPEC,MARK 3
STD,MARK 1
STD,MARK 2
main13101-16201-03×4i4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
STD,MARK 3
STD
STD
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
main13103-16200×4i4AFE..AE111..4FC..GLI; 4AFE..AE111..4FC..SEG; 4AFE..AE111..5F..GLI; 4AFE..AE111..5F..SEG199505-199704
O/S 0.50,MALAYSIA OR THAILAND SPEC; O/S 0.50,MALAYSIA SPEC; O/S 0.50,SINGAPORE OR THAILAND SPEC; O/S 0.50,SINGAPORE SPEC
main13103-16201×4i4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
O/S 0.50
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
(L)
ENGINE NO.=D002XXX(TENSIN)
main13201-19135×4i5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90179-09008×8i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);4AF,5AFE..AE110,111..GL,GLI,XL199704-200207
13405FLYWHEEL SUB-ASSY
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(L)
main13405-15090i5AFE..AE110..5F..TH;4AFE..AE111..5F..MA;7AFE..AE112..5F..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..5F..(GL,GLI,SEG,XL);4AFE..AE111..5F..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200207
TYPE A:REFER TO ILLUSTRATION,(J)
TYPE B:REFER TO ILLUSTRATION,(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
main90250-08120×3i4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)199505-200208
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042×6i4AFE..AE111..RHD..5F..GEN;4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN);4AFE..AE111..LHD..SED..5F..(GCC,GEN,TUR,VEN)199505-200208
13411CRANKSHAFT
(L)
(L)
(J)
(J)
(L)
(L)
13453GEAR, FLYWHEEL RING
main13453-10010i4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN)199505-200208
13471PULLEY, CRANKSHAFT
main13470-11030i2E,4EFE..EE11#; 2E..EE110..LHD..3FC;4EFE..EE111..GEN,VEN;2E..EE110..MTM..(GCC,GEN)199710-200002
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
main13470-16080i4AFE,7AFE..AE111,112..GCC;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN; 4AFE..AE111..SEG..GEN;4AFE,7AFE..AE111,112..GCC;4AFE..AE111..RHD..SED..5F..(GLI,XLI)..GEN199710-199910
TYPE C:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-12314i4AFE..AE111..RHD..GEN;4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199701
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;4AFE..AE111..SED..(GLI,XLI);7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL199704-200207
13521PPULLEY, CRANKSHAFT TIMING
(L)
MALAYSIA SPEC
main13521-15020i5AFE..AE110..4FC..GEN; 7AFE..AE112..ARL,BZ,GCC,GEN,IDN,VEN;4AFE,5AFE..AE110,111..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,VEN199810-199901
13566AGUIDE, TIMING BELT
(L)
main13566-15020i4AFE..AE111..RHD..GEN;5AFE,7AFE..AE110,112..ARL,GCC,GEN,VEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN)199505-200010
21 parts on this diagram · 4 diagrams in section
