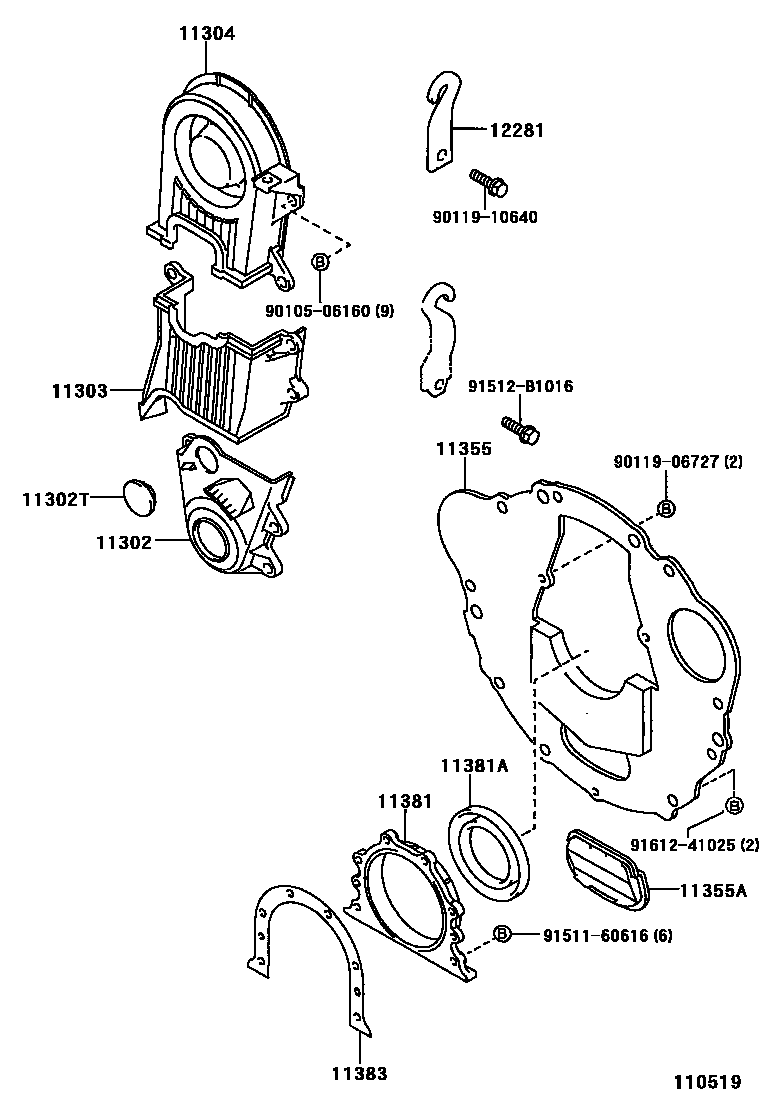

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
(L)
MALAYSIA SPEC
main11302-15050i5AFE..AE110..4FC..GEN; 5AFE..AE110;4AFE..AE111..WG..5F;7AFE..AE112..GLI,SEG;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,VEN); 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,VEN199808-200110
(J)
(L)
(J)
11302TPLUG, HOLE
main90950-01783i5AFE..AE110..4FC..GEN; 5AFE..AE110;4AFE,7AFE..AE111,112..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TUR,VEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AFE,5AFE..AE110,111..GCC,GEN,TUR,VEN199810-199901
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
(L)
main11303-15050i4AFE,5AFE..AE110,111..GCC,GEN,VEN; 5AFE..AE110..4FC..GEN; 5AFE..AE110;4AFE..AE111..WG..5F;4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,VEN)199808-200110
(J)
11304COVER, TIMING CHAIN OR BELT, NO.2
(L)
main11304-15030i4AFE,5AFE..AE110,111..GCC,GEN,VEN; 5AFE..AE110..4FC..GEN; 5AFE..AE110;4AFE..AE111..WG..5F;4AFE..AE111..SED..(ARL,GCC,GEN,GENKD,MA,NZ,PHL,VEN)199808-200110
(J)
11355PLATE, REAR END
main11355-15070i4AFE..AE111..RHD..5F..GEN;4AFE..AE111..LHD..SED..5F..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..5F..(ARL,GCC,GEN,VEN)199505-200208
main11355-15080i4AFE..AE111..LHD..WG..4FC;7AFE..AE112..LHD..4FC..XLI;4AF,5AFE,7AFE..AE11#..ATM..(GL,GLI,SEG,XL);4AFE,5AFE..AE110,111..4FC..(SEG,XLI)..(MA,TH);4AFE..AE111..SED..4FC..(GLI,XLI)..(ARL,GCC,GEN,NZ,PHL,TH,VEN)199704-200207
11355APLUG, HOLE(FOR REAR END PLATE)
main90950-01264i7AFE..AE112..4FC..(ARL,GCC,GEN,VEN);4AF#,5AFE..AE110,111..SED..ATM..(GCC,GEN,TUR,VEN)199505-199901
11381RETAINER, ENGINE REAR OIL SEAL
(L)
main11381-15010i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN199505-200106
11381ASEAL, ENGINE REAR OIL
(L)
main90311-70007i5AFE..AE110..TH;4AFE..AE111..MA;4AFE..AE111..WG..5F;4AFE..AE111..LHD..WG..4FC;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);4AF,5AFE,7AFE..AE11#..GL,GLI,SEG,XL;4AFE..AE111..SED..(GLI,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN)199704-200010
11383GASKET, ENGINE REAR OIL SEAL RETAINER
(L)
main11383-16010i4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,VEN);4AF,5AFE,7AFE..AE11#..ARL,GCC,GEN,VEN199505-200010
12281HANGER, ENGINE, NO.1
main12281-15050i5AFE..AE110..4FC..GEN; 7AFE..AE112..ARL,GCC,GEN,VEN;4AF#,5AFE..AE110,111..GCC,GEN,VEN199808
9010506160
main90105-06160
9011906727
main90119-06727
9011910640
main90119-10640
9151160616
main91511-60616
91512B1016
main91512-B1016
9161241025
main91612-41025
16 parts on this diagram · 6 diagrams in section
