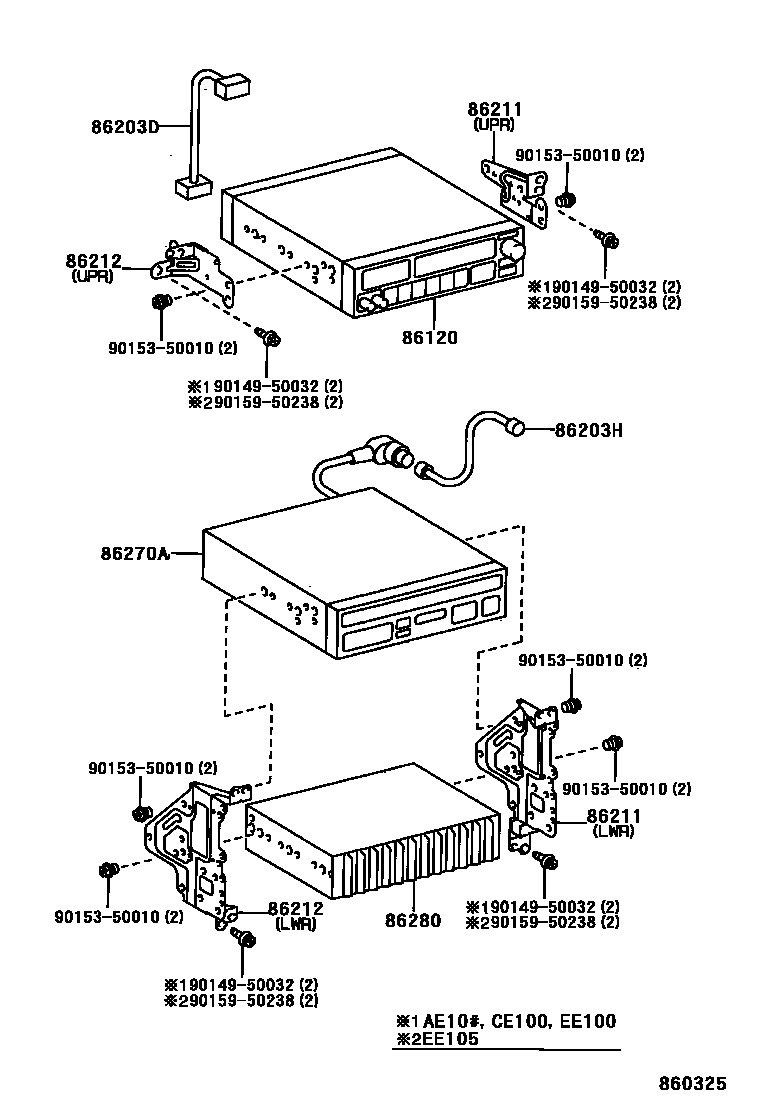

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

86120RECEIVER ASSY, RADIO

main86120-10460iEE105199808-199910

MATSUSHITA, ID=52202,AM/FM (AM=9KHZ STEP)

main86120-10470iEE105199804-199910

MATSUSHITA, ID=57207,AM/SW1/SW2 CASSETTE

main86120-12750iAE101..CP;AE100..GLI199108-199405

FUJITSU TEN,AM/FM MULTIPLEX ETR CASSETTE LIVE SOUND SYSTEM

main86120-12751iAE101..CP;AE100..GLI199405-199505

FUJITSU TEN,AM/FM MULTIPLEX ETR CASSETTE LIVE SOUND SYSTEM

main86120-12760iAE101..CP199108-199405

FUJITSU TEN,AM/FM,CASSETTE & CD

main86120-12761iAE101..CP199405-199505

FUJITSU TEN,AM/FM,CASSETTE & CD

main86120-12770iAE100..GLI199108-199405

FUJITSU TEN,AM/FM MULTIPLEX ETR CASSETTE 2SPEAKER

main86120-12771iAE100..GLI199405-199505

FUJITSU TEN,AM/FM MULTIPLEX ETR CASSETTE 2SPEAKER

main86120-12780iAE100;AE101..SJ199205-199305

FUJITSU TEN,AM/FM

main86120-12870iAE100,EE104,108..L,LX199108-199505

FUJITSU TEN,AM

main86120-12890iAE100;AE101..SJ199205-199305

MATSUSHITA,AM/FM

main86120-16650iEE105199804-199910

MATSUSHITA, ID=52201,AM/FM (AM=10KHZ STEP)

main86120-16660iEE105199808-199910

FUJITSU TEN,ID=17409,AM/FM CASSETTE (AM=9KHZ STEP)

main86120-16670iEE105199804-199910

FUJITSU TEN,ID=17410,AM/FM CASSETTE (AM=10KHZ STEP)

main86120-1A020iAE101,CE100,EE10#..GEN199704-199808

FUJITSU TEN,ID=12201,AM/FM ETR CASSETTE (AM=5KHZ STEP)

main86120-1A040iAE101,CE100,EE10#..GEN199704-199808

FUJITSU TEN,ID=12101,AM ETR (AM=9KHZ STEP)

main86120-1A080iAE101,EE100..TUR199511-199905

MATSUSHITA,ID=58407

main86120-1A100iEE104199401-199505

FUJITSU TEN,AM/FM,L EXTRA,L EXTRA TOURING PACKAGE OR LX LIMITED

main86120-27010iEE104199505-199704

FUJITSU TEN

main86120-28240iEE104199505-199704

FUJITSU TEN,ID=10207,AM/FM,L EXTRA,L EXTRA TOURING PACKAGE OR LX LIMITED

main86120-2A070iAE101,CE100,EE100..GEN199808

MATSUSHITA,AM/FM(AM;5KHZ STEP)

main86120-2A190iAE101,CE100,EE10#..GEN199704-199808

MATSUSHITA,ID=57202,AM/SW,CASSETTE

main86120-2B360iAE10#,CE100,EE100..GEN199704

MATSUSHITA,ID=57400,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER

main86120-2B390iAE101,CE100,EE100..GEN199808

FUJITSU TEN,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER

main86120-2B400iAE101,EE100..TUR199509-199511

FUJITSU TEN

main86120-35080iEE105199808-199910

MATSUSHITA,ID=52100,AM

main86120-35090iEE105199405-199808

MATSUSHITA,ID=57400,AM/FM MULTIPLEX ETR CASSETTE (AM=5KHZ STEP) 2 SPEAKER

main86120-35100iAE101,EE100..GCC199508-199704

MATSUSHITA,ID=57401,AM/FM/SW

main86120-35110iAE101,102,CE100,EE100,105..(SED,WG)..GEN199205-199704

MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP)

86203DWIRE, STEREO COMPONENT, NO.1

main86203-12260iAE100..GLI199108-199505

W(LIVE SOUND SYSTEM & CD PLAYER)

main86203-12280iAE100199205-199305

86203HWIRE, STEREO COMPONENT, NO.2

main86203-12270iAE100..GLI199108-199505

86211BRACKET, RADIO, NO.1

main86211-12250iAE10#,CE100,EE10#199509-199704

LOWER

main86211-12270iAE101,CE100,EE10#..RHD199704

UPPER

main86211-12300iAE101..CP199108-199505

main86211-12310iAE10#,CE100,EE100,105..LHD199509-199511

UPPER

main86211-12320iAE101,EE100..TUR199511-199905

UPPER

86212BRACKET, RADIO, NO.2

main86212-12230iAE10#,CE100,EE10#..SED,WG199108-199409

LOWER

main86212-12250iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

UPPER

main86212-12280iAE101..CP199108-199505

main86212-12290iAE101,102,CE100,EE100,105..LHD199409-199509

UPPER

main86212-12310iAE101,EE100..TUR199511-199905

UPPER

86270ADISC PLAYER ASSY

main86270-12040iAE100..GLI199108-199505

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-12100iAE100..GLI199108-199505

main86280-12120iAE101..GTAPX; AE101..SJ199108-199305

LIVE SOUND SYSTEM

main86280-12130iAE101..CP199108-199505

SUPER LIVE SOUND SYSTEM

9014950032

main90149-50032

9015350010

main90153-50010

9015950238

main90159-50238

10 parts on this diagram · 6 diagrams in section
