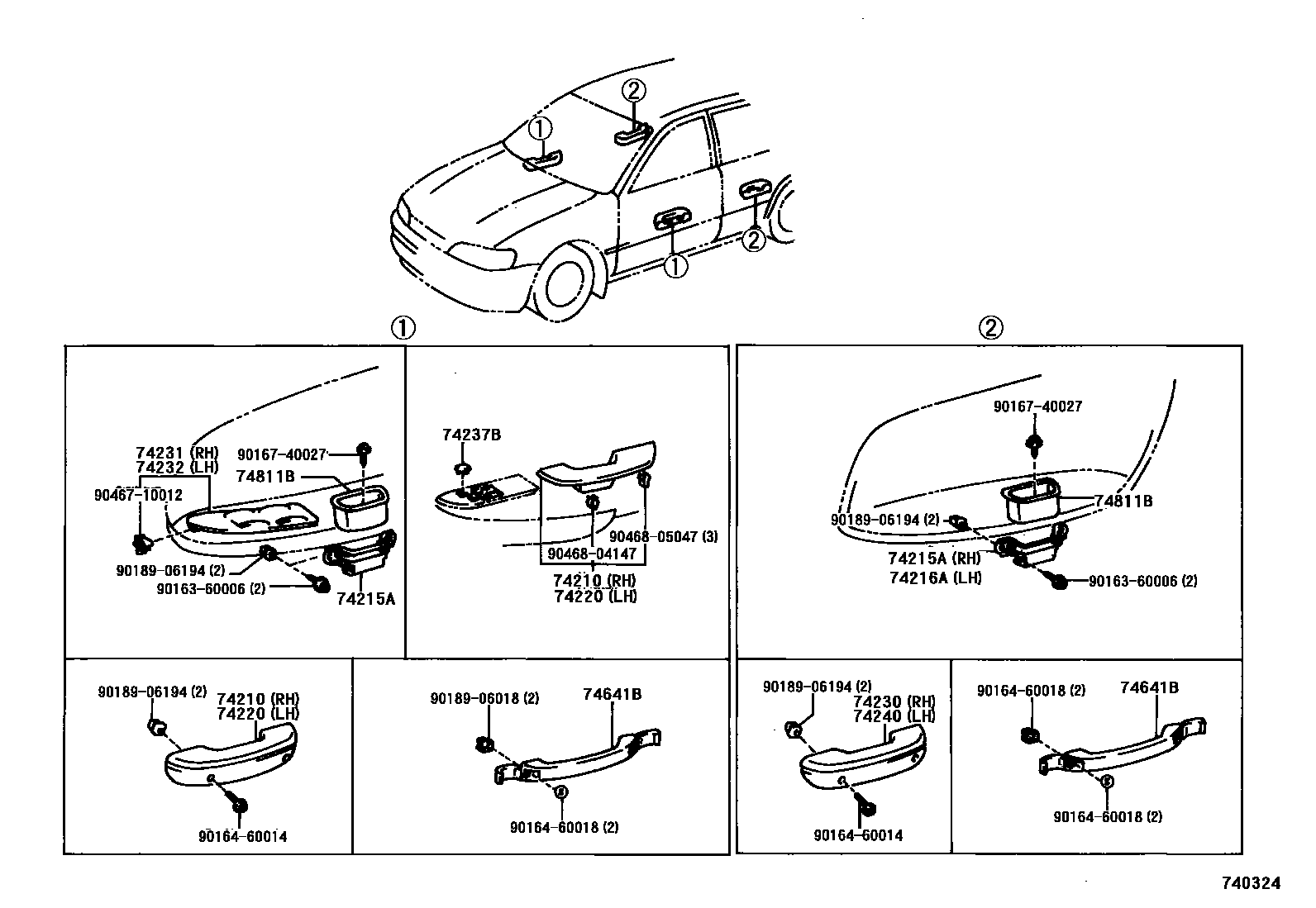

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
SHADOW GRAY,TRIM1#,(L)
DARK BLUE,TRIM8#,(L)
TAUPE,TRIM9#,(L)
W(*PW & *EL),SHADOW GRAY,TRIM1#
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),DARK BLUE,TRIM8#
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),TAUPE,TRIM9#
TAUPE,TRIM9#
main74210-16060-P0iEE105..XL;EE105..LHD..STD;AE100,101,CE100,EE100,101,104..L,LX,STD,XL,XLI199405-200111
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#,(J)
TAUPE,TRIM9#,(J)
74215ABASE, DOOR ARMREST RH
74216ABASE, DOOR ARMREST, LH
74220ARMREST ASSY, FRONT, LH
TAUPE,TRIM9#
main74210-16060-P0iEE105..XL;EE105..LHD..STD;AE100,101,CE100,EE100,101,104..L,LX,STD,XL,XLI199405-200111
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#,(L)
DARK BLUE,TRIM8#,(L)
TAUPE,TRIM9#,(L)
PAKISTAN SPEC(HK16) & W(*PW),SHADOW GRAY,TRIM1#
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),DARK BLUE,TRIM8#
PAKISTAN SPEC(HK16) & W(*PW),TAUPE,TRIM9#
W(*PW),SHADOW GRAY,TRIM1#,(J)
DARK BLUE,TRIM8#,(J)
TAUPE,TRIM9#
74230ARMREST ASSY, REAR, RH
SHADOW GRAY,TRIM1#,(L)
DARK BLUE,TRIM8#,(L)
TAUPE,TRIM9#,(L)
SHADOW GRAY,TRIM1#,(J)
DARK BLUE,TRIM8#,(J)
TAUPE,TRIM9#
TAUPE,TRIM9#
PAKISTAN SPEC(HK16),SHADOW GRAY,TRIM1#
main74210-16060-W3iCE100..LHD;AE101,EE100..SED..(XL,XLI)..TUR;AE101,EE100,101..(STD,XL,XLI)..(GCC,GEN)199405-199704
DARK BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
SHADOW GRAY,TRIM1#
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),DARK BLUE,TRIM8#
PAKISTAN SPEC(HK16) & W(*PW),TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#; PAKISTAN SPEC(HK16) & W(*PW),SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#; PAKISTAN SPEC(HK16) & W(*PW),DARK BLUE,TRIM8#
main74231-12130-K0iAE101..RHD..4FC..GLI;AE101..RHD..(GL,SEG,XL);AE100,EE100,101..RHD..(GLI,XL,XLI); AE101..RHD..SED..5F..(GLI,XLI)199406-199505
TAUPE,TRIM9#; W(*PW & *EL),TAUPE,TRIM9#
main74231-12130-P0iAE101..RHD..SED..5F..(GLI,XLI); AE101..WG..GEN;AE101..RHD..4FC..GLI;AE101..RHD..(GL,SEG,XL);AE100,EE100,101..RHD..(GLI,XL,XLI)199406-199505
SHADOW GRAY,TRIM1#; W(*PW & *EL),SHADOW GRAY,TRIM1#
main74231-12130-W3iAE101..RHD..SED..5F..(GLI,XLI); AE101..WG..GEN;AE101..RHD..(GL,XL);AE101..RHD..4FC..GLI;EE100,101..RHD..(XL,XLI)199406-199505
DARK BLUE,TRIM8#; W(*PW & *EL),DARK BLUE,TRIM8#
main74231-12131-P0iAE101..RHD..WG;EE100..RHD..3FC;CE100,EE101..RHD;AE101..RHD..(GL,SEG,XL)199505-199704
SHADOW GRAY,TRIM1#
BLUE,TRIM8#
BLACK,TRIM20,21,22
main74231-12170-B0iAE101..LHD..(GL,GLI,XLI)..(GCC,GEN);AE102,CE100,EE100..LHD..(GL,GLI,XL)..(GCC,GEN); AE101..LHD..XL199309-199505
SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main74231-12170-J0iAE101..LHD..(GL,GLI,XLI)..(GCC,GEN);AE102,CE100,EE100..LHD..(GL,GLI,XL)..(GCC,GEN); AE101..LHD..XL199309-199505
DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main74231-12170-K0iAE101..LHD..SED..(GL,GLI,XLI)..(GCC,GEN);AE102,CE100,EE100..LHD..SED..(GL,GLI,XL)..(GCC,GEN); AE101..LHD..XL199309-199505
TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
BLACK,TRIM2#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
W(*PW),SHADOW GRAY,TRIM1#
W(*PW),SHADOW GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#
TAUPE,TRIM9#
TAUPE,TRIM9#
main74232-12110-P0iAE100,EE101;AE101..WG..GEN;EE100..RHD..3FC;AE101..RHD..(GL,GLI,SEG,XL); EE100..RHD..5F..XL199205-199305
SHADOW GRAY,TRIM1#; W(*PW) OR W(*PW & *EL),SHADOW GRAY,TRIM1#
W(*PW & *EL),DARK BLUE,TRIM8#
BLACK,TRIM2#
main74232-12160-B0iAE101..LHD..(GL,GLI,XLI)..(GCC,GEN);AE102,CE100,EE100..LHD..(GL,GLI,XL)..(GCC,GEN); AE101..LHD..XL199309-199505
SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main74232-12160-J0iAE101..LHD..(GL,GLI,XLI)..(GCC,GEN);AE102,CE100,EE100..LHD..(GL,GLI,XL)..(GCC,GEN); AE101..LHD..XL199309-199505
DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
74237BCAP, DOOR ARMREST BASE
W(*PW)
74240ARMREST ASSY, REAR, LH
SHADOW GRAY,TRIM1#,(L)
DARK BLUE,TRIM8#,(L)
TAUPE,TRIM9#,(L)
SHADOW GRAY,TRIM1#,(J)
DARK BLUE,TRIM8#,(J)
TAUPE,TRIM9#,(J)
PAKISTAN SPEC(HK16),TAUPE,TRIM9#
PAKISTAN SPEC(HK16),SHADOW GRAY,TRIM1#
PAKISTAN SPEC(HK16),DARK BLUE,TRIM8#
74641BGRIP, DOOR ASSIST
GRAY,TRIM1#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
74811BHANDLE, DOOR PULL
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
9016360006
main90163-60006
9016460014
main90164-60014
9016460018
main90164-60018
9016740027
main90167-40027
9018906018
main90189-06018
9018906194
main90189-06194
9046710012
main90467-10012
9046804147
main90468-04147
9046805047
main90468-05047
20 parts on this diagram · 5 diagrams in section
