E
EPC Data

REAR DOOR PANEL & GLASS

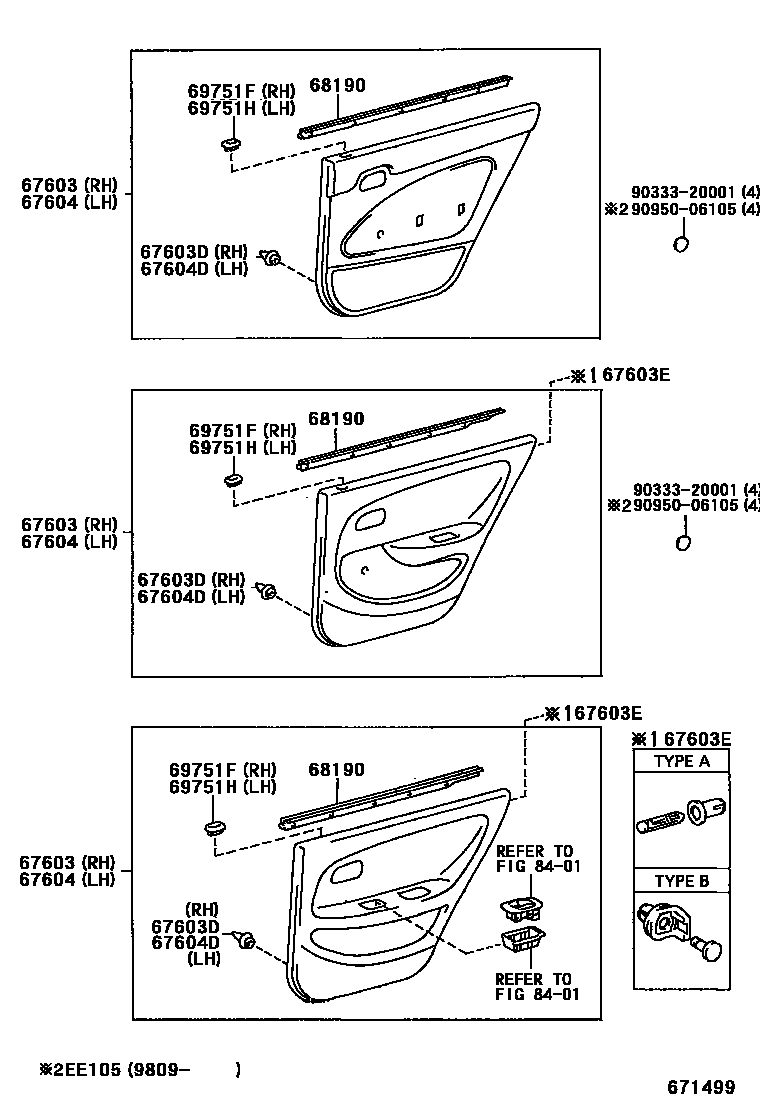

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-12900i199505-199711
W(*PW),PHILIPPINE SPEC
main67630-13200-B0i199109-199704
SHADOW GRAY,TRIM1#
main67630-13200-J0i199205-199408
DARK BLUE,TRIM8#
main67630-13250-B0i199205-199704
SHADOW GRAY,TRIM1#
main67630-13250-B1i199704-199910
SHADOW GRAY,TRIM1#
main67630-13250-J0i199205-199408
DARK BLUE,TRIM8#
main67630-13290-B0i199205-199505
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-13290-J0i199205-199505
W(POWER WINDOW),DARK BLUE,TRIM8#
main67630-13292-B1i199505-199704
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-13292-J1i199505-199704
W(POWER WINDOW),BLUE/GRAY,TRIM8#
main67630-13370-B0i199205-199505
SHADOW GRAY,TRIM1#
main67630-13370-J0i199205-199505
DARK BLUE,TRIM8#
main67630-13371-B1i199505-199508
SHADOW GRAY,TRIM1#
main67630-13371-J1i199505-199508
BLUE/GRAY,TRIM8#
main67630-13380-B0i199205-199505
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67630-13380-J0i199205-199408
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67630-13381-B1i199505-199704
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67630-13381-B2i199704-199910
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67630-1E240-B0i199108-199505
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#
main67630-1E240-J0i199305-199505
W(POWER WINDOW),DARK BLUE,TRIM8#
main67630-1E240-K0i199108-199505
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#
main67630-1E241-B1i199505-200111
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-1E241-J1i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67630-1E250-B0i199108-199505
SHADOW GRAY,TRIM1#
main67630-1E250-J1i199108-199505
DARK BLUE,TRIM8#
main67630-1E250-K0i199108-199505
TAUPE,TRIM9#
main67630-1E251-B1i199505-199709
SHADOW GRAY,TRIM1#
main67630-1E251-J2i199709-199805
BLUE/GRAY,TRIM8#
main67630-1E260-B0i199108-199205
SHADOW GRAY,TRIM1#
main67630-1E260-J0i199108-199205
DARK BLUE,TRIM8#
main67630-1E260-K0i199108-199205
TAUPE,TRIM9#
main67630-1E280-B0i199108-199305
INDONESIA & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),SHADOW GRAY,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#
main67630-1E280-J1i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),DARK BLUE,TRIM8#
main67630-1E280-K0i199108-199305
INDONESIA & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),TAUPE,TRIM9#; W(POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#
main67630-1E281-B1i199709-199805
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-1E281-J2i199709-199805
W(POWER WINDOW),BLUE/GRAY,TRIM8#
main67630-1E330-B0i199405-199709
SHADOW GRAY,TRIM1#
main67630-1E330-J0i199108-199405
DARK BLUE,TRIM8#
main67630-1E330-K0i199405-199505
TAUPE,TRIM9#
main67630-1E340-B0i199108-199505
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67630-1E340-J0i199108-199505
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67630-1E340-K0i199108-199505
TAUPE,TRIM9#; W(FULL FABRIC SEAT),TAUPE,TRIM9#
main67630-1E341-B1i199805-200111
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67630-1E341-J1i199505-199805
W(FULL FABRIC SEAT),BLUE / GRAY,TRIM8#
main67630-1E370-B0i199108-199305
INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main67630-1E370-J0i199108-199305
DARK BLUE,TRIM8#; INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),DARK BLUE,TRIM8#
main67630-1E370-K0i199108-199305
INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),TAUPE,TRIM9#; TAUPE,TRIM9#
main67630-1E510-B0i199108-199405
SHADOW GRAY,TRIM1#
main67630-1E510-J0i199108-199405
DARK BLUE,TRIM8#
main67630-1E510-K0i199108-199405
TAUPE,TRIM9#
main67630-1E530-B0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,SHADOW GRAY,TRIM1#
main67630-1E530-J0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,DARK BLUE,TRIM8#
main67630-1E530-K0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,TAUPE,TRIM9#
main67630-1H130-B0i199305-199510
SHADOW GRAY,TRIM1#
main67630-1H130-K0i199305-199510
TAUPE,TRIM9#
main67630-1H170-B0i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#
main67630-1H170-K0i199305-199505
W(POWER WINDOW & POWER DOOR LOCK),TAUPE,TRIM9#
main67630-1H190-B0i199305-199406
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67630-1H190-J1i199406-199505
PAKISTAN SPEC(HK16) & W(POWER WINDOW),DARK BLUE,TRIM8#
main67630-1H190-K0i199305-199406
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),TAUPE,TRIM9#
main67630-1H191-B1i199505-200111
NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#; PAKISTAN SPEC(HK16) & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-1H191-J1i199505-200111
NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#; PAKISTAN SPEC(HK16) & W(POWER WINDOW),DARK BLUE,TRIM8#
main67630-1H251-B1i199505-199704
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-1H251-J1i199505-199704
W(*PW),BLUE / GRAY,TRIM8#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-12030×2i199406-199409
YELLOW GREEN
main67771-12050×6i199805
main67771-12070×5i199205-199208
WHITE
main67771-13030×6i199208-199509
SABLE,PLANT K21
main67771-16080×6i199207-199704
NATURAL
main67771-16160×2i199205-199409
ORANGE
main67771-16170×6i199509-199704
SABLE,PLANT A31,A32
main67771-28020×6i199205-199305
main90467-08179×2i199509-199605
YELLOW
67603ECLIP(FOR REAR DOOR TRIM BOARD)
main90467-07066-03×4i199108-199205
SHADOW GRAY,TRIM1#
main90467-07066-J0×4i199205-199305
DARK BLUE,TRIM8#
main90467-07066-K0×4i199305-199505
TAUPE,TRIM9#
main90467-07066-P0×8i199309-199505
SHADOW GRAY,TYPE A
main90467-09141×4i199205-199305
TYPE B
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-12900i199505-199805
PHILIPPINE SPEC
main67640-13200-B0i199109-199704
SHADOW GRAY,TRIM1#
main67640-13200-J0i199205-199408
DARK BLUE,TRIM8#
main67640-13250-B0i199109-199401
L EXTRA(FQ16/QH16),SHADOW GRAY,TRIM1#
main67640-13250-B1i199704-199910
SHADOW GRAY,TRIM1#
main67640-13250-J0i199205-199408
DARK BLUE,TRIM8#
main67640-13290-B0i199205-199505
W(*PW),SHADOW GRAY,TRIM1#
main67640-13290-J0i199205-199505
W(*PW),DARK BLUE,TRIM8#
main67640-13292-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67640-13292-J1i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67640-13370-B0i199505-199508
SHADOW GRAY,TRIM1#
main67640-13370-J0i199505-199508
DARK BLUE,TRIM8#
main67640-13371-B1i199505-199508
SHADOW GRAY,TRIM1#
main67640-13371-J1i199508-199704
BLUE/GRAY,TRIM8#
main67640-13380-B0i199205-199505
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67640-13380-J0i199205-199408
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67640-13381-B1i199505-199704
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67640-13381-B2i199704-199910
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67640-1E240-B0i199205-199305
W(*PW),SHADOW GRAY,TRIM1#
main67640-1E240-J0i199205-199305
W(*PW),DARK BLUE,TRIM8#
main67640-1E240-K0i199305-199505
W(*PW),TAUPE,TRIM9#
main67640-1E241-B1i199505-200111
W(FULL FABRIC SEAT & POWER WINDOW & POWER DOOR LOCK),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & POWER WINDOW),SHADOW GRAY,TRIM1#
main67640-1E241-J1i199505-199704
W(*PW),BLUE / GRAY,TRIM8#
main67640-1E250-B0i199108-199505
SHADOW GRAY,TRIM1#
main67640-1E250-J1i199108-199505
DARK BLUE,TRIM8#
main67640-1E250-K0i199108-199505
TAUPE,TRIM9#
main67640-1E251-B1i199709-199805
SHADOW GRAY,TRIM1#
main67640-1E251-J2i199505-199709
BLUE / GRAY,TRIM8#
main67640-1E260-B0i199108-199205
SHADOW GRAY,TRIM1#
main67640-1E260-J0i199108-199205
DARK BLUE,TRIM8#
main67640-1E260-K0i199108-199205
TAUPE,TRIM9#
main67640-1E280-B0i199108-199305
INDONESIA & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW & *EL),SHADOW GRAY,TRIM1#
main67640-1E280-J2i199108-199305
INDONESIA & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW & *EL),DARK BLUE,TRIM8#
main67640-1E280-K0i199108-199305
INDONESIA & CKD SPEC & W(*PW & *EL) OR W(*PW & *EL),TAUPE,TRIM9#; W(*PW & *EL),TAUPE,TRIM9#
main67640-1E281-B1i199505-199709
W(*PW),SHADOW GRAY,TRIM1#
main67640-1E281-J3i199505-199709
W(*PW),BLUE / GRAY,TRIM8#
main67640-1E330-B0i199108-199405
SHADOW GRAY,TRIM1#
main67640-1E330-J0i199108-199405
DARK BLUE,TRIM8#
main67640-1E330-K0i199405-199505
TAUPE,TRIM9#
main67640-1E340-B0i199108-199505
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main67640-1E340-J0i199108-199505
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main67640-1E340-K0i199505-199508
TAUPE,TRIM9#
main67640-1E341-B1i199505-199508
SHADOW GRAY,TRIM1#
main67640-1E341-J1i199505-199805
W(FULL FABRIC SEAT),BLUE / GRAY,TRIM8#
main67640-1E370-B0i199108-199305
INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
main67640-1E370-J0i199108-199305
DARK BLUE,TRIM8#; INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),DARK BLUE,TRIM8#
main67640-1E370-K0i199108-199305
INDONESIA & CKD SPEC & SE PACKAGE & W(*PW & *EL),TAUPE,TRIM9#; TAUPE,TRIM9#
main67640-1E510-B0i199108-199405
SHADOW GRAY,TRIM1#
main67640-1E510-J0i199108-199405
DARK BLUE,TRIM8#
main67640-1E510-K0i199108-199405
TAUPE,TRIM9#
main67640-1E530-B0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,SHADOW GRAY,TRIM1#
main67640-1E530-J0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,DARK BLUE,TRIM8#
main67640-1E530-K0i199108-199311
INDONESIA & CKD SPEC & SE PACKAGE,TAUPE,TRIM9#
main67640-1H130-B0i199305-199510
SHADOW GRAY,TRIM1#
main67640-1H130-K0i199305-199510
TAUPE,TRIM9#
main67640-1H170-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#
main67640-1H170-K0i199305-199505
W(*PW & *EL),TAUPE,TRIM9#
main67640-1H190-B0i199305-199406
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),SHADOW GRAY,TRIM1#
main67640-1H190-J1i199305-199406
PAKISTAN SPEC(HK16) & CKD SPEC & W(*PW & *EL),DARK BLUE,TRIM8#
main67640-1H190-K0i199406-199505
PAKISTAN SPEC(HK16) & W(*PW),TAUPE,TRIM9#
main67640-1H191-B1i199505-200111
NEW ZEALAND SPEC & W(*PW),SHADOW GRAY,TRIM1#; PAKISTAN SPEC(HK16) & W(*PW),SHADOW GRAY,TRIM1#
main67640-1H191-J1i199505-200111
NEW ZEALAND SPEC & W(*PW),DARK BLUE,TRIM8#; PAKISTAN SPEC(HK16) & W(*PW),DARK BLUE,TRIM8#
main67640-1H251-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67640-1H251-J1i199505-199704
W(*PW),BLUE / GRAY,TRIM8#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-12030×2i199310-199405
YELLOW GREEN
main67771-12050×6i199709-199805
main67771-12070×6i199205-199401
main67771-13030×6i199208-199402
SABLE; SABLE,PLANT K21
main67771-16080×8i199109-199111
NATURAL
main67771-16160×2i199205-199409
ORANGE
main67771-16170×6i199509-199704
SABLE,PLANT A31,A32
main67771-28020×6i199205-199305
main90467-08179×2i199205-199301
YELLOW
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-12050×2i199704
main68173-13010i199109-199704
RH
main68174-13010i199109-199704
LH
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
main69751-12030-03i199109-199205
L EXTRA(FQ16/QH16) & W(SPEAKER),SHADOW GRAY,TRIM1#
main69751-12050-B0i199205-199401
L EXTRA(FQ16/QH16) & W(SPEAKER),SHADOW GRAY,TRIM1#
main69751-12050-J0i199305-199408
DARK BLUE,TRIM8#
main69751-12050-K0i199108-199505
TAUPE,TRIM9#
69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB
main69751-12030-03i199109-199205
L EXTRA(FQ16/QH16) & W(SPEAKER),SHADOW GRAY,TRIM1#
main69751-12050-B0i199205-199401
L EXTRA(FQ16/QH16) & W(SPEAKER),SHADOW GRAY,TRIM1#
main69751-12050-J0i199408-200111
DARK BLUE,TRIM8#
main69751-12050-K0i199108-199505
TAUPE,TRIM9#
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9033320001
main90333-20001
9095006105
main90950-06105

11 parts on this diagram · 2 diagrams in section

REAR DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
