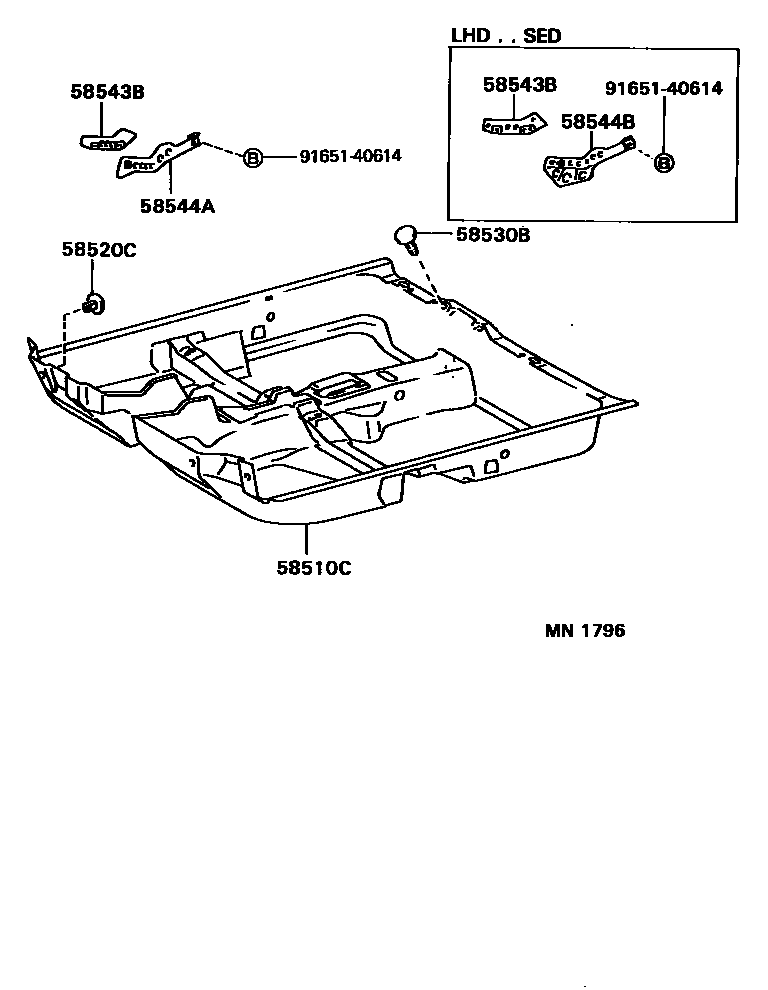

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-13490-B0i199109-199111

SHADOW GRAY,TRIM1#

main58510-13500-B0i199109-199111

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-13630-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-13630-J0i199205-199312

DARK BLUE,TRIM8#

main58510-13631-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-13631-J0i199312-199505

DARK BLUE,TRIM8#

main58510-13632-B0i199505-199704

SHADOW GRAY,TRIM1#

main58510-13632-J0i199505-199704

DARK BLUE,TRIM8#

main58510-13660-B0i199207-199312

SHADOW GRAY,TRIM1#

main58510-13660-J0i199207-199312

DARK BLUE,TRIM8#

main58510-13661-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-13661-J0i199312-199505

DARK BLUE,TRIM8#

main58510-13662i199809-199905

main58510-13662-B0i199505-199809

SHADOW GRAY,TRIM1#

main58510-13662-J0i199505-199704

DARK BLUE,TRIM8#

main58510-13680-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-13680-J0i199205-199312

DARK BLUE,TRIM8#

main58510-13681-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-13681-J0i199312-199408

DARK BLUE,TRIM8#

main58510-13690-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-13690-J0i199205-199312

DARK BLUE,TRIM8#

main58510-13691-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-13691-J0i199312-199408

DARK BLUE,TRIM8#

main58510-13692-B0i199505-199704

SHADOW GRAY,TRIM1#

main58510-13710-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-13710-J0i199205-199312

DARK BLUE,TRIM8#

main58510-13711-B0i199312-199704

SHADOW GRAY,TRIM1#

main58510-13711-J0i199312-199408

DARK BLUE,TRIM8#

main58510-13720-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-13720-J0i199205-199312

DARK BLUE,TRIM8#

main58510-13721-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-13721-J0i199312-199408

DARK BLUE,TRIM8#

main58510-13722-B0i199505-199704

SHADOW GRAY,TRIM1#

main58510-13740-B0i199205-199312

W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-13740-J0i199205-199312

W(FOOT REST),DARK BLUE,TRIM8#

main58510-13741-B0i199312-199505

W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-13741-J0i199312-199505

W(FOOT REST),DARK BLUE,TRIM8#

main58510-13742-B1i199505-199704

W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-13742-J0i199505-199704

W(FOOT REST),DARK BLUE,TRIM8#

main58510-13800-B0i199111-199312

SHADOW GRAY,TRIM1#

main58510-13801-B0i199312-199508

SHADOW GRAY,TRIM1#

main58510-13802-B0i199508-199704

SHADOW GRAY,TRIM1#

main58510-13810-B0i199111-199312

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-13811-B0i199312-199508

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-13812-B0i199508-199704

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1A860-K0i199108-199111

TAUPE,TRIM9#

main58510-1A860-P0i199108-199111

SHADOW GRAY,TRIM1#

main58510-1A860-W3i199108-199111

DARK BLUE,TRIM8#

main58510-1A861-K0i199111-199312

TAUPE,TRIM9#

main58510-1A861-P0i199111-199312

SHADOW GRAY,TRIM1#

main58510-1A861-W3i199111-199312

DARK BLUE,TRIM8#

main58510-1A862-K0i199312-199505

TAUPE,TRIM9#

main58510-1A862-P0i199312-199704

SHADOW GRAY,TRIM1#

main58510-1A862-W3i199312-199704

DARK BLUE,TRIM8#

main58510-1A890-K0i199108-199111

TAUPE,TRIM9#

main58510-1A890-P0i199108-199111

SHADOW GRAY,TRIM1#

main58510-1A890-W3i199108-199111

DARK BLUE,TRIM8#

main58510-1A891-K0i199111-199312

TAUPE,TRIM9#

main58510-1A891-P0i199111-199312

SHADOW GRAY,TRIM1#

main58510-1A891-W3i199111-199305

DARK BLUE,TRIM8#

main58510-1A892-K0i199312-199505

TAUPE,TRIM9#

main58510-1A892-P0i199312-199505

SHADOW GRAY,TRIM1#

main58510-1E010-K0i199108-199111

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E010-P0i199108-199111

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E010-W3i199108-199111

COLD AREA SPEC,DARK BLUE,TRIM8#

main58510-1E011-K0i199111-199312

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E011-P0i199111-199312

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E011-W3i199111-199305

COLD AREA SPEC,DARK BLUE,TRIM8#

main58510-1E012-K0i199312-199505

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E012-P0i199312-199505

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E020-K0i199108-199111

TAUPE,TRIM9#

main58510-1E020-P0i199108-199111

SHADOW GRAY,TRIM1#

main58510-1E020-W3i199108-199111

DARK BLUE,TRIM8#

main58510-1E021-B0i199203-199312

SHADOW GRAY,TRIM1#

main58510-1E021-K0i199111-199312

TAUPE,TRIM9#

main58510-1E021-P0i199111-199203

SHADOW GRAY,TRIM1#

main58510-1E021-W3i199111-199305

DARK BLUE,TRIM8#

main58510-1E022-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-1E022-K0i199312-199505

TAUPE,TRIM9#

main58510-1E030-K0i199108-199111

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E030-P0i199108-199111

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E030-W3i199108-199111

COLD AREA SPEC,DARK BLUE,TRIM8#

main58510-1E031-B0i199203-199312

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E031-K0i199111-199312

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E031-P0i199111-199203

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E031-W3i199111-199305

COLD AREA SPEC,DARK BLUE,TRIM8#

main58510-1E032-B0i199312-199505

COLD AREA SPEC,SHADOW GRAY,TRIM1#

main58510-1E032-K0i199312-199505

COLD AREA SPEC,TAUPE,TRIM9#

main58510-1E040-B1i199108-199111

SHADOW GRAY,TRIM1#

main58510-1E040-J0i199108-199111

DARK BLUE,TRIM8#

main58510-1E040-K1i199108-199111

TAUPE,TRIM9#

main58510-1E041-B1i199111-199312

SHADOW GRAY,TRIM1#

main58510-1E041-J0i199111-199312

DARK BLUE,TRIM8#

main58510-1E041-K1i199111-199312

TAUPE,TRIM9#

main58510-1E042-B1i199312-199505

SHADOW GRAY,TRIM1#

main58510-1E042-J0i199312-199505

DARK BLUE,TRIM8#

main58510-1E042-K1i199312-199505

TAUPE,TRIM9#

main58510-1E043-B3i199505-200111

SHADOW GRAY,TRIM1#

main58510-1E043-W3i199505-200111

DARK BLUE,TRIM8#

main58510-1E050-K0i199108-199111

TAUPE,TRIM9#; W(FOOT REST),TAUPE,TRIM9#

main58510-1E050-P0i199108-199111

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E050-W3i199108-199111

DARK BLUE,TRIM8#; W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E051-B0i199203-199312

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E051-K0i199111-199312

TAUPE,TRIM9#; W(FOOT REST),TAUPE,TRIM9#

main58510-1E051-P0i199111-199203

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E051-W3i199305-199312

DARK BLUE,TRIM8#

main58510-1E052-B0i199312-199505

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E052-K0i199312-199505

TAUPE,TRIM9#; W(FOOT REST),TAUPE,TRIM9#

main58510-1E052-W3i199312-199505

DARK BLUE,TRIM8#; W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E053-B0i199505-200111

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E053-W3i199505-200111

DARK BLUE,TRIM8#; W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E230-22i199108-199111

BLACK,TRIM2#; BLACK,TRIM20,21,22

main58510-1E231-22i199111-199305

BLACK,TRIM2#; BLACK,TRIM20,21,22

main58510-1E232-22i199401-199505

BLACK,TRIM2#

main58510-1E240-22i199108-199111

COLD AREA SPEC,BLACK,TRIM2#; COLD AREA SPEC,BLACK,TRIM20,21,22

main58510-1E241-22i199111-199305

COLD AREA SPEC,BLACK,TRIM2#; COLD AREA SPEC,BLACK,TRIM20,21,22

main58510-1E242-22i199401-199505

COLD AREA SPEC,BLACK,TRIM2#

main58510-1E252-B1i199505-199704

W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E252-J0i199505-199704

W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E300-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-1E300-J0i199205-199312

DARK BLUE,TRIM8#

main58510-1E300-K0i199205-199312

TAUPE,TRIM9#

main58510-1E301-B0i199312-199704

SHADOW GRAY,TRIM1#

main58510-1E301-J0i199312-199704

DARK BLUE,TRIM8#

main58510-1E301-K0i199312-199505

TAUPE,TRIM9#

main58510-1E310-B0i199205-199312

SHADOW GRAY,TRIM1#

main58510-1E310-J0i199205-199312

DARK BLUE,TRIM8#

main58510-1E310-K0i199205-199312

TAUPE,TRIM9#

main58510-1E311-B0i199312-199505

SHADOW GRAY,TRIM1#

main58510-1E311-J0i199312-199505

DARK BLUE,TRIM8#

main58510-1E311-K0i199312-199505

TAUPE,TRIM9#

main58510-1E312-B0i199505-199508

SHADOW GRAY,TRIM1#

main58510-1E312-J0i199505-199508

DARK BLUE,TRIM8#

main58510-1E330-B1i199205-199312

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E330-J0i199205-199312

DARK BLUE,TRIM8#; W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E330-K0i199205-199312

TAUPE,TRIM9#; W(FOOT REST),TAUPE,TRIM9#

main58510-1E331-B1i199312-199505

SHADOW GRAY,TRIM1#; W(FOOT REST),SHADOW GRAY,TRIM1#

main58510-1E331-J0i199312-199505

DARK BLUE,TRIM8#; W(FOOT REST),DARK BLUE,TRIM8#

main58510-1E331-K0i199312-199505

TAUPE,TRIM9#; W(FOOT REST),TAUPE,TRIM9#

main58510-1E332-B1i199505-199807

SHADOW GRAY,TRIM1#

main58510-1E332-J0i199505-199807

DARK BLUE,TRIM8#

main58510-1F330-B0i199704-199910

SHADOW GRAY,TRIM1#

main58510-1F340-B0i199704-199910

SHADOW GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-11×2i199108-199209

BLACK,TRIM1#,8#,9#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main90467-09068-22×2i199209-199305

BLACK,TRIM1#,8#,9#; BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

main90467-09068-B0i199704-199910

SHADOW GRAY,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×3i199109-199110

BLACK,TRIM1#

main90467-06016-C0×3i199408-199704

BLACK,TRIM1#

main90467-06016-P0×3i199704-199910

GRAY,TRIM1#

main90467-06023-01i199108-199305

BLACK,TRIM2#,20,21,22,TYPE A; BLACK,TRIM20,21,22,TYPE A

main90467-07049-01×2i199205-199208

BLACK,TRIM1#,8#,9#,TYPE B; W(FOOT REST),BLACK,TRIM1#,8#,9#,TYPE B

main90467-07049-C0×2i199208-199305

BLACK,TRIM1#,8#,9#,TYPE B; BLACK,TRIM2#,20,21,22,TYPE B; BLACK,TRIM20,21,22,TYPE B

58543BBRACKET, FLOOR CARPET, RH

main58543-12010i199108-199111

main58543-12011i199111-199312

58544ABRACKET, FLOOR CARPET, LH

main58544-12010i199108-199111

main58544-12011i199111-199312

main58544-12020i199108-199111

main58544-12021i199111-199401

58544BBRACKET, FLOOR CARPET, LH

main58544-12030i199205-199409

main58544-12031i199505-199508

9165140614

main91651-40614

7 parts on this diagram · 3 diagrams in section
