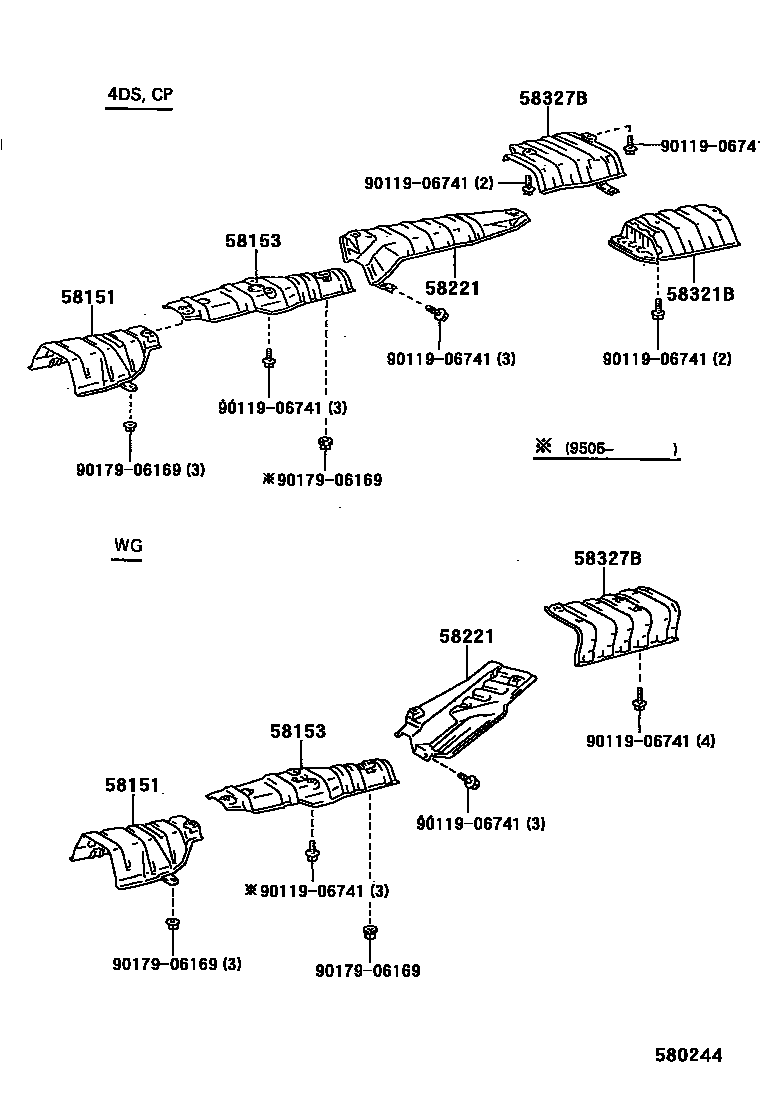

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-12140iAE101..RHD..(GLI,GTAPX,SJ);AE100,EE101,105,108..RHD..(GLI,L,LX,STD,XLI)199205-199211

main58041-12150iAE101..RHD..(GLI,GTAPX,SJ);AE100,EE101,105,108..RHD..(GLI,L,LX,STD,XLI)199211-199310

main58151-12200iEE101,104;AE101..WG..GEN;AE101..LHD..SED..(GLI,XLI)..GEN199505-199706

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12110iAE101..CP;AE100,EE108199108-199205

main58153-12120iAE101..RHD..(GLI,GTAPX,SJ);AE100,EE101,105,108..RHD..(GLI,L,LX,STD,XLI)199211-199310

main58153-12140iAE101,EE104..WG..GEN;AE101..LHD..SED..(GLI,XLI)..GEN199611-199706

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-12010iAE10#,EE100199108-199202

main58044-12040iAE10#,CE100,EE100,101199409-199509

main58221-13030iEE104,105,108199109-199910

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58045-12020iAE101..GTAPX199108-199505

58327BINSULATOR, MAIN MUFFLER HEAT

main58031-12040iAE101..GTAPX199108-199505

main58031-12070iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI199207-199211

main58031-12090iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI199211-199409

main58327-13020iEE105,108199109-199308

main58327-21030iEE104,105,108199308-199910

9011906741

main90119-06741

9017906169

main90179-06169

7 parts on this diagram · 1 diagram in section
