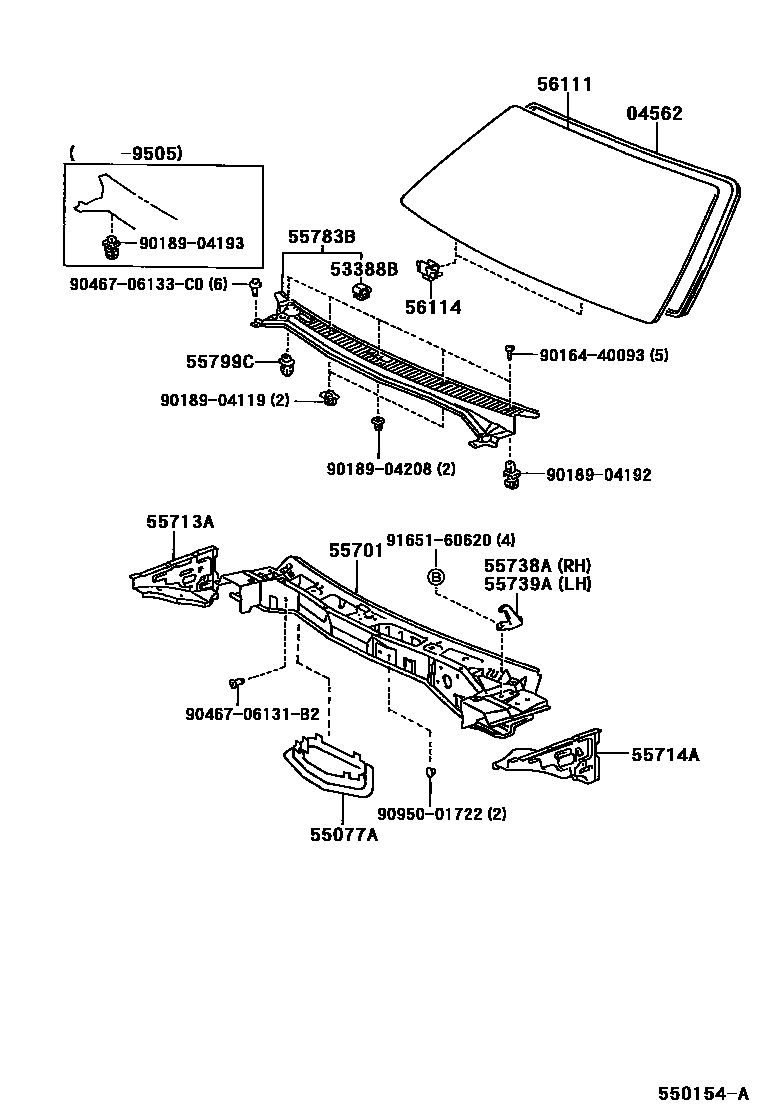

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE10#,CE100,EE10#199108-199409

53388BCUSHION, HOOD, REAR

main53388-12030iAE101..CP199108-199505

main53388-12040iAE10#,CE100,EE10#..SED,WG199409-199509

55077ACOVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12100iAE101,EE100,101,105..RHD..(SED,WG)199108-199308

main55077-12110iAE101,CE100,EE100,105..LHD199205-199308

55701PANEL SUB-ASSY, COWL

main55700-12781iAE100,EE100,105..RHD;AE101..RHD..(GLI,SEG,XLI)199412-199704

main55700-12801iEE101,104;AE101..RHD..(GL,XL)199412-199704

main55700-12810iAE101..SJ199108-199505

main55700-12820iAE101..GTAPX199108-199505

main55700-12860iEE100,105..LHD199205-199509

main55700-12870iCE100199205-199505

main55700-12890iAE101..LHD..(GLI,XLI)199205-199409

main55700-12902iAE100,101..RHD..(GLI,LX,SEG,XLI)199108-199412

main55700-12903iEE100,105,108..RHD199108-199412

main55700-12906iEE101,104;AE101..RHD..(GL,XL)199205-199412

main55700-1A020iAE102199309-199505

main55700-1A031iCE100..RHD199603

main55700-1A150iEE100,105..LHD199509-199910

main55700-1A160iAE10#,CE100..LHD199509-199905

55713APANEL, COWL TOP SIDE, RH

main55713-12080iAE10#,CE100,EE10#..SED,WG199409-199505

main55713-12081iAE10#,CE100,EE10#199509-199704

main55713-12090iAE101..CP199108-199411

main55713-12091iAE101..CP199411-199505

55714APANEL, COWL TOP SIDE, LH

main55714-12080iAE10#,CE100,EE10#..SED,WG199409-199505

main55714-12081iAE10#,CE100,EE10#199704

main55714-12090iAE101..CP199108-199411

main55714-12091iAE101..CP199411-199505

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#,CE100,EE10#199704

main55738-12100iAE101..CP199108-199505

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#,CE100,EE10#199509-199704

main55739-12060iAE101..CP199108-199505

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE100,101,CE100,EE10#..RHD..(SED,WG)199108-199704

main55708-12090iAE100,EE104,108199108-199704

COLD SPEC

main55708-12110iAE101..CP199108-199505

main55708-12120iAE101..CP199108-199505

COLD SPEC OR SNOW VERSION

main55708-12130iAE101,102,CE100,EE100,105..LHD199409-199509

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE10#,CE100,EE10#199505-199509

56111GLASS, WINDSHIELD

main56111-1A440iAE101..3FC..XL;EE100..RHD..GL;AE101..RHD..SED..4FC;AE101..RHD..5F..(GLI,SEG,XLI);AE101..LHD..(4FC,5F)..(GCC,GEN);AE102,CE100,EE10#..(GLI,L,STD,XL,XLI)..(GCC,GEN)199108-199705

*LAM,T=4.7,CLEAR

main56111-1A460iAE10#,CE100,EE10#199509-199805

*TL,T=4.7

main56111-1A470iAE100..GLI;AE101..SEG199108-199510

*TL,T=4.7,TOP SHADE,W(TOP SHADE BAND)

main56111-1A480iAE100..GLI;AE101..SEG199108-199510

*LAM,T=4.7,BRONZE

main56111-1A600iAE101..CP199108-199305

*LAM,T=4.7,GRAY

main56111-1A650iAE101..CP199305-199505

*LAM,T=4.7,BLUE

main56111-1A770iEE105199704-199805

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56110-12010×2iAE10#,CE100,EE10#199108-199409

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131B2

main90467-06131B2

9046706133C0

main90467-06133C0

9095001722

main90950-01722

9165160620

main91651-60620

21 parts on this diagram · 2 diagrams in section
