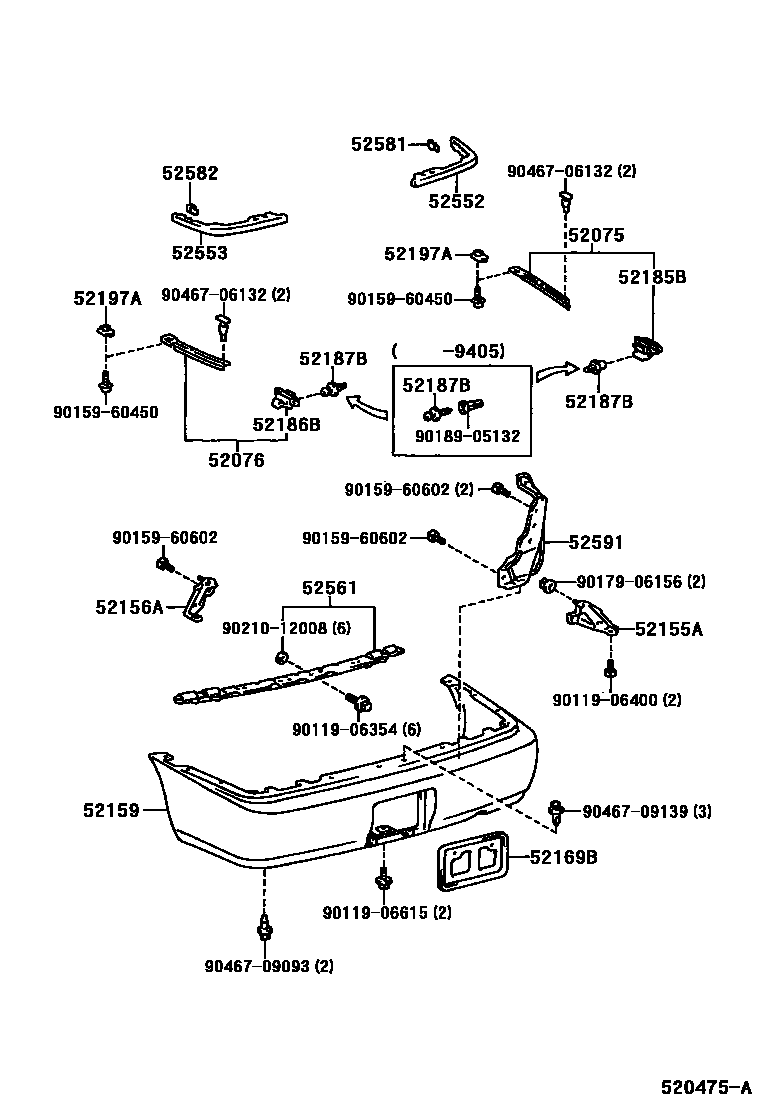

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-12030iAE10#,CE100,EE100,101..SED199108-199409

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-12030iAE10#,CE100,EE100,101..SED199108-199409

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12200iAE101..CP199108-199305

main52155-12210iAE10#,CE100,EE100,101..SED199409-199704

main52155-12260iAE101..CP199305-199505

main52155-13050iAE101,EE100,104,105..WG199509-199910

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12190iAE101..CP199108-199305

main52156-12200iAE10#,CE100,EE100,101..SED199108-199409

main52156-12250iAE101..CP199305-199505

main52156-13050iAE101,EE100,104,105..WG199509-199910

52159COVER, REAR BUMPER

main52159-13080iAE101,EE100,104,105,108..WG199109-199910

main52159-1A440iAE101,102,CE100,EE100,101..SED..(GCC,GEN)199108-200111

main52159-1A540iAE101,CE100,EE100,101..SED..GEN199205-200111

W(REAR LICENSE PLATE ON LUGGAGE DOOR PANEL)

main52159-1A905iAE100199108-199505

main52159-1A906iAE100..GLI199108-199205

W(CORNER SONAR)

main52159-1A907iAE101..CP199108-199305

main52159-1A909iAE101..CP199305-199505

52169BBRACKET, REAR BUMPER, CENTER

main52169-12020iAE101,CE100,EE100,101..SED..GEN199305-199308

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-12130iAE10#,CE100,EE100..SED199704

main52185-12150iAE101..CP199108-199305

main52185-12210iAE101..CP199305-199505

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-12130iAE10#,CE100,EE100..SED199704

main52186-12110iAE101..CP199108-199305

main52186-12130iAE101..CP199305-199505

52187BGUIDE, REAR BUMPER LOCATION

main52187-12140×2iAE10#,CE100,EE100,101..SED199108-199405

main52187-12160×2iAE10#,CE100,EE100,101..SED199405-199409

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-12070×2iAE10#,CE100,EE100,101..SED199409-199704

52552FILLER, REAR BUMPER, RH

main52552-12030iAE10#,CE100,EE100..SED199704

main52552-13020iAE101,EE100,104,105,108..WG199109-199509

52553FILLER, REAR BUMPER, LH

main52553-12030iAE10#,CE100,EE100..SED199704

main52553-13020iAE101,EE100,104,105..WG199509-199910

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-12030iAE10#,CE100,EE100..SED199704

main52561-12160iAE101..CP199108-199505

main52561-13030iAE101,EE100,104,105..WG199509-199910

52581PROTECTOR, REAR BUMPER, RH

main52581-12060iAE10#,CE100,EE100,101..SED199108-199409

52582PROTECTOR, REAR BUMPER, LH

main52581-12060iAE10#,CE100,EE100,101..SED199108-199409

52591SEAL, REAR BUMPER SIDE, RH

main52591-12080iAE10#,CE100,EE100,101..SED199108-199409

main52591-12090iAE101..CP199108-199505

9011906354

main90119-06354

9011906400

main90119-06400

9011906615

main90119-06615

9015960450

main90159-60450

9015960602

main90159-60602

9017906156

main90179-06156

9018905132

main90189-05132

9021012008

main90210-12008

9046706132

main90467-06132

9046709093

main90467-09093

9046709139

main90467-09139

27 parts on this diagram · 3 diagrams in section
