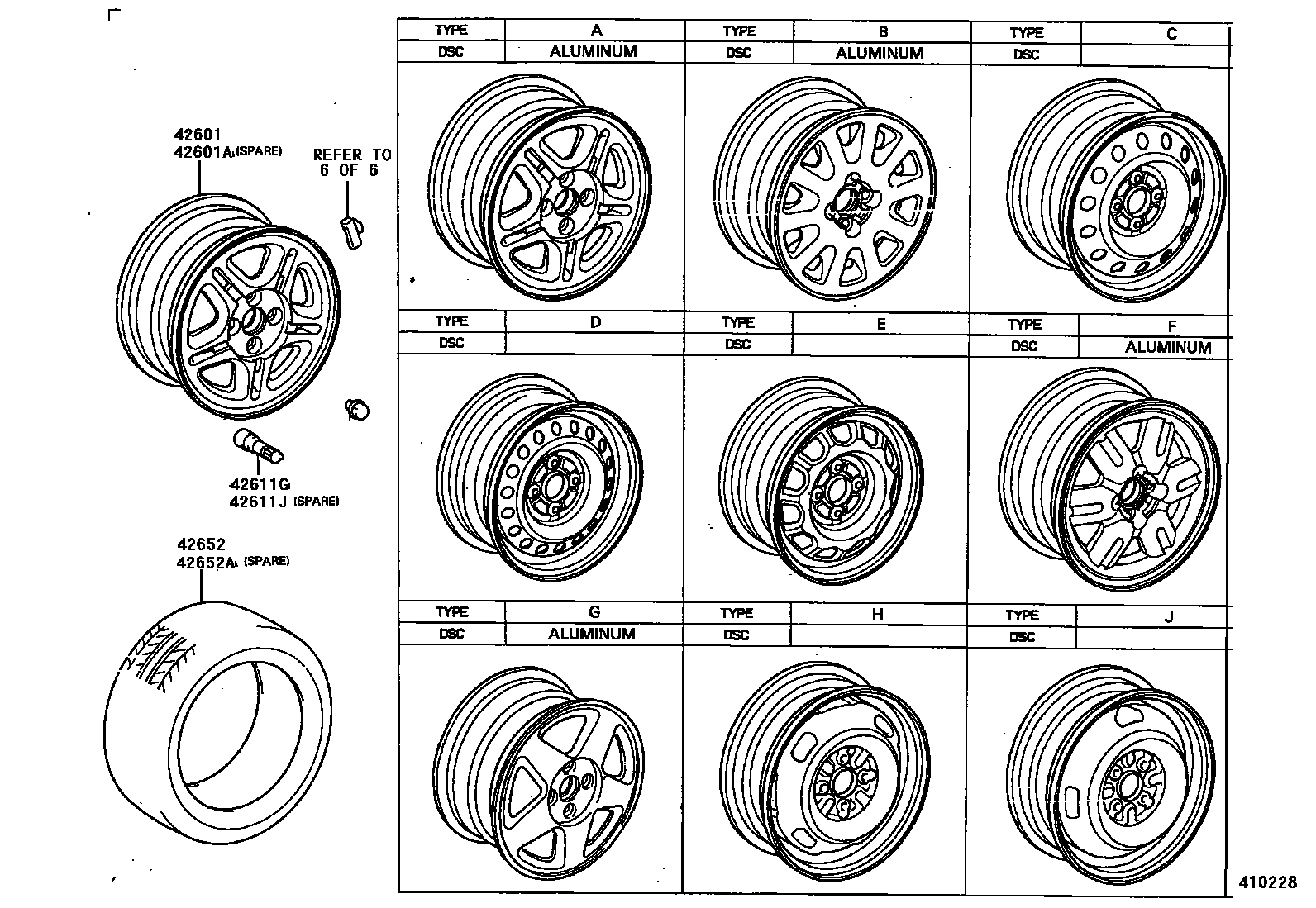

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

42601WHEEL, DISC

main42611-1A110×4iAE101..GTAPX199108-199505

14X5.5JJ,W(ALUMINUM WHEEL),TYPE F

main42611-1A120×4iAE101..LHD..GLI..GEN;EE100..LHD..5F..XL..GEN199505-199711

14X5.5JJ,W(ALUMINUM WHEEL),TYPE A

main42611-1A130×4iEE100..LHD..5F..XL..GEN;AE100,101..(GL,GLI,SEG)..GEN199205-199505

14X5.5JJ,W(ALUMINUM WHEEL)

main42611-1A140-01×4iEE100..RHD..5F..XL;AE10#..(GLI,SEG,XLI)..(GEN,TUR)199509

14X5.5J,TYPE C:REFER TO ILLUSTRATION,BLACK

main42611-1A150×4iAE101,EE100..SED..GCC199610-199702

13X5J,LIMITED EDITION(G.C.C.)

main42611-1A150-01×4iAE100..LX199111-199305

13X5J,LX LIMITED OR L EXTRA TOURING PACKAGE TYPE D,BLACK

main42611-1A160-03×4iCE100,EE10#..XL199905

13X5J,TYPE E:REFER TO ILLUSTRATION,SILVER M.

main42611-1A180×4iAE101..RHD..GLI199301-199304

14X5.5JJ,INTRA,TYPE Q

main42611-1A210-01×4iAE101..GLI,GTAPX,SEG; AE101..GLI,SEG,SJ199108-199202

14X5.5J,BLACK,TYPE C; 14X5.5J,TYPE C,BLACK

main42611-1A230×4iAE101..GTAPX199205-199505

15X6JJ,W(*SSS),TYPE G

main42611-1A250-03×4iAE101..XLI..(GEN,TUR)199509-199905

14X5.5J,OFFSET 45,TYPE P:REFER TO ILLUSTRATION,SILVER M

main42611-1A280×4iAE101..GTAPX199108-199110

15X6JJ,TYPE M

main42611-1A280-03×4iAE101..GTAPX199108-199505

15X6JJ,TYPE M,SILVER

main42611-1A300×4iCE100;EE100..LHD..5F..XL..GEN;AE101..(GL,GLI,SEG)..GEN199505-199607

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

42601AWHEEL, DISC (FOR SPARE)

main42611-16200iAE100199108-199505

14X4T,TYPE H

main42611-17040iAE101..CP199108-199212

14X4T,TYPE H

main42611-1A010iAE100;AE101..CP199108-199505

15X4T,W(*66),TYPE R

main42611-1A110iAE101..GTAPX199108-199505

14X5.5JJ,TYPE F

main42611-1A120iAE101..LHD..GLI..GEN;EE100..LHD..5F..XL..GEN199505-199711

14X5.5JJ,W(ALUMINUM WHEEL),TYPE A

main42611-1A130iCE100;AE101..(GL,GLI)..GEN;EE100..LHD..5F..XL..GEN199607

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-1A140-01iAE101..XLI..TUR199509-199905

14X5.5J,TYPE E:REFER TO ILLUSTRATION,BLACK

main42611-1A150iAE101,EE100..SED..GCC199610-199702

13X5J,LIMITED EDITION(G.C.C.)

main42611-1A150-01iAE100..LX199111-199305

13X5J,LX LIMITED OR L EXTRA TOURING PACKAGE TYPE D,BLACK

main42611-1A160-03iAE100..LX199305-199505

13X5J,BUSINESS PACKAGE,TYPE E,SILVER M.

main42611-1A180iAE101..RHD..GLI199301-199304

14X5.5JJ,INTRA,TYPE Q

main42611-1A210-01iAE101199108-199202

14X5.5J,TYPE A,BLACK

main42611-1A230iAE101..GTAPX199108-199205

15X6JJ,W(*SSS),TYPE G

main42611-1A240iAE101..GTAPX199108-199505

16X4T,W(*66 & *SSS),TYPE L

main42611-1A250-03iAE101..XLI..(GEN,TUR)199409-199509

14X5.5J,OFFSET 45,TYPE P,SILVER M

main42611-1A300iCE100;EE100..LHD..5F..XL..GEN;AE101..(GL,GLI,SEG)..GEN199505-199607

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)

main42611-1A330iAE101..CP199212-199505

14X4T,TYPE N

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAE10#,CE100,EE10#199108-199409

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAE10#,CE100,EE10#199409-199509

42652TIRE

main42605-10060×4iEE100,105..GEN199205-199405

155SR13,W(TUBE)

main42605-12210×4iAE101..RHD..5F..GLI199208-199405

175/70R13 82S,W/TUBE

main42605-16060×4iAE101..RHD..5F..GLI199205-199405

175/70SR13,W(TUBE)

main42605-20100×4iAE101,CE100,EE100,105..(GL,STD,XL)..GEN199205-199405

165SR13,W(TUBE)

main42652-10360×4iEE105199704-199910

155SR13

main42652-12220×4iEE100,101,105..GEN199108-199505

155SR13

main42652-12680×4iEE100,105..GCC,GEN199505-199704

155SR13

main42652-12870×4iAE101..SJ199205-199305

185/60R14 82H

main42652-12880×4iEE101;AE101,CE100,EE100..(GL,XL)..(GEN,TUR)199505-199612

175/70R13 82S,*B/S,*D/L,*T/Y,*Y/H

main42652-12890×4iEE100..RHD..5F..XL;AE101..(GLI,SEG,XLI)..GEN199205-199409

175/65R14 82H

main42652-14140×4iCE100,EE100..GEN199705-199905

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290×4iCE100,EE100,101,105..GEN199207-199705

165SR13,*Y/H

main42652-16230×4iEE101;AE101,CE100,EE100..(3FC,4FC,5F)..(GL,STD,XL)..(GEN,TUR)199205-199505

175/70R13 82S

main42652-16530×4iEE105199801-199910

155/80R13

main42652-1A010×2iAE101..GTAPX199205-199505

195/55R15 83V,RH

main42652-1A020×2iAE101..GTAPX199205-199505

195/55R15 83V,LH

main42652-1A070×4iEE105199704-199910

165SR13

main42652-1A140×4iCE100..LHD;EE100..GCC199612-199704

175/70SR13

main42652-1A150×4iAE102;AE101..SEG199309-199805

185/60R14 82H

main42652-1A210×4iAE101..LHD..GLI..GEN;EE100..LHD..5F..XL..GEN199505-199711

185/65R14 85H,*T/Y

main42652-1A230×4iAE101..(GLI,XLI)..(GCC,GEN)199207

175/70HR13,*Y/H

main42652-1A260×4iCE100;AE101..GL199505

175/65R14 82S

main42652-1A420×4iCE100199803

175/65R14

main42652-20260×4iAE101..(GLI,XLI)..(GCC,GEN)199108

175/70HR13,*B/S,*D/L,*Y/H

main42652-20390×4iAE101..SED199108-199205

185/65R14 85H

main42652-20540×4iEE104199505-199508

165SR13

main42652-2B060×4iAE101..RHD..GLI199301-199304

185/65R14 85H,W(*(B),*(D),*(T)=I,*(Y))

42652ATIRE (FOR SPARE)

main42605-10060iEE100,105..GEN199205-199405

155SR13,W(TUBE)

main42605-12210iAE101..RHD..5F..GLI199208-199405

175/70R13 82S,W/TUBE

main42605-16060iAE101..RHD..5F..GLI199205-199405

175/70SR13,W(TUBE)

main42605-20100iAE101,CE100,EE100,105..(GL,STD,XL)..GEN199205-199405

165SR13,W(TUBE)

main42652-10360iEE105199704-199910

155SR13

main42652-12220iEE100,101,105..GEN199108-199505

155SR13

main42652-12680iEE100,105..GCC,GEN199505-199704

155SR13

main42652-12870iAE101..CP199305-199505

185/60R14 82H

main42652-12880iEE101;AE101,CE100,EE100..(GL,XL)..(GEN,TUR)199505-199612

175/70R13 82S,*B/S,*D/L,*T/Y,*Y/H

main42652-12890iAE101..SED199108-199205

175/65R14 82H

main42652-14140iCE100,EE100199905

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290iCE100,EE100199905

165SR13,*Y/H

main42652-16220iAE101..CP199305-199505

T115/70D14

main42652-16230iEE101;AE101,CE100,EE100..(3FC,4FC,5F)..(GL,STD,XL)..(GEN,TUR)199205-199505

175/70R13 82S

main42652-16320iAE100,EE108..L,LX199109-199505

155SR13

main42652-16530iEE105199801-199910

155/80R13

main42652-1A020iAE101..GTAPX199205-199505

195/55R15 83V,LH

main42652-1A070iEE105199704-199910

165SR13

main42652-1A140iCE100..LHD;EE100..GCC199612-199704

175/70SR13

main42652-1A150iAE102;AE101..SEG199309-199805

185/60R14 82H

main42652-1A210iAE101..LHD..GLI..GEN;EE100..LHD..5F..XL..GEN199505-199711

185/65R14 85H,*T/Y

main42652-1A230iAE101..(GLI,XLI)..(GCC,GEN)199207

175/70HR13,*Y/H

main42652-1A260iCE100;AE101..GL199505

175/65R14 82S

main42652-1A420iCE100199803

175/65R14

main42652-20260iAE101..(GLI,XLI)..(GCC,GEN)199108

175/70HR13,*B/S,*D/L,*Y/H

main42652-20390iAE101..SED199108-199205

185/65R14 85H

main42652-20540iEE104199505-199508

165SR13

main42652-24050iAE101..GTAPX199205-199505

T135/70D16

main42652-2B060iAE101..(GLI,SEG)..GEN;EE100..LHD..5F..XL..GEN199205-199505

185/65R14 85H,*D/L

6 parts on this diagram · 6 diagrams in section
