FRONT SEAT & SEAT TRACK

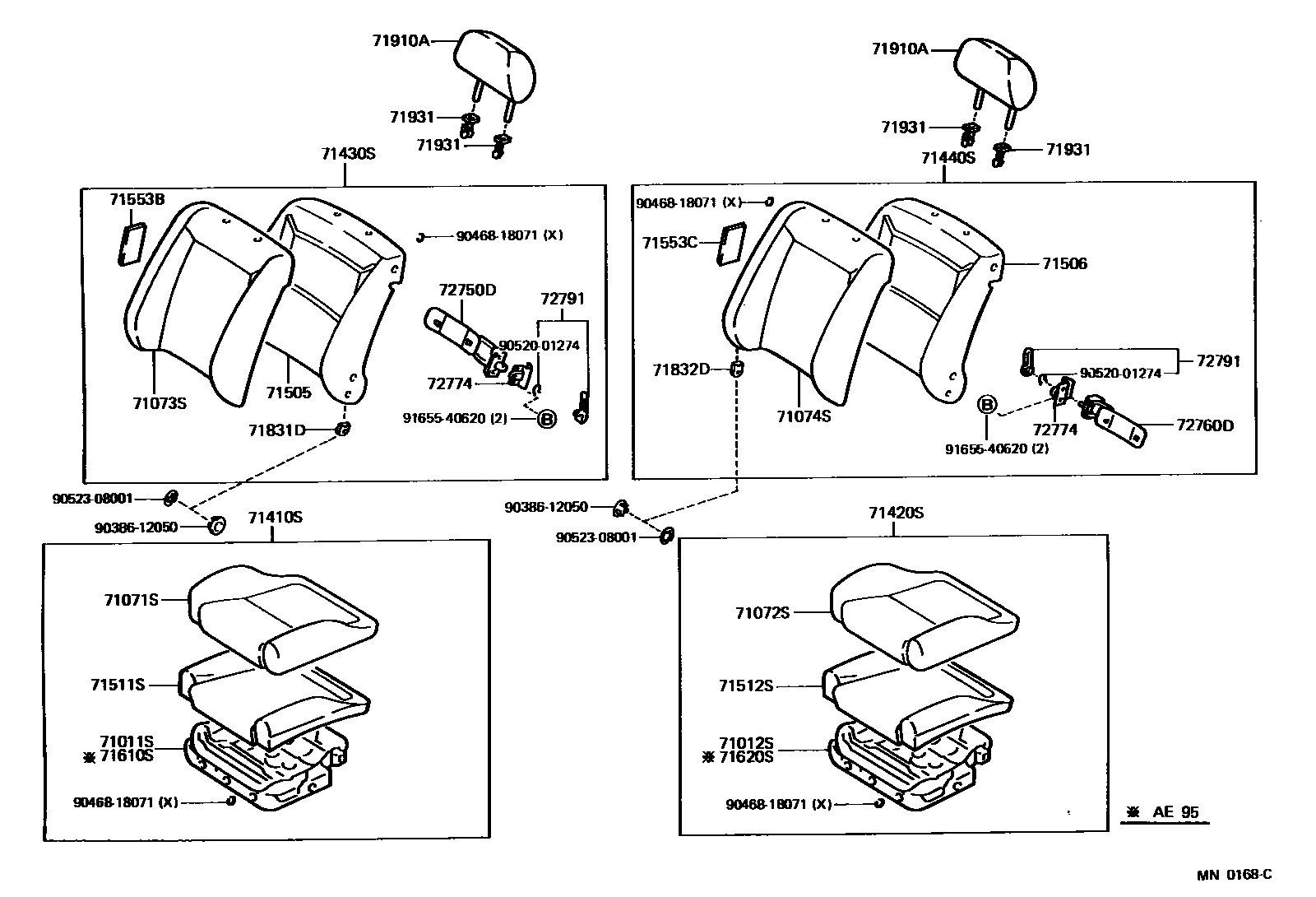

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-12280i198705-199308
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-12280i198705-199308
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H140-03i198705-199308
SADOW GRAY,TRIM1#
main71071-1H141-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H150-03i198808-199205
SHADOW GRAY,TRIM1#
main71071-1H150-04i198705-198808
DARK BLUE,TRIM8#
main71071-1H150-05i198808-198908
DARK BEIGE,TRIM4#
main71071-1H170-02i198705-198908
W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71071-1H170-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H170-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H171-02i198908-199205
W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71071-1H171-03i198908-199205
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H171-04i198908-199205
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H180-02i198705-198908
MAROON,TRIM3#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H181-02i198908-199205
MAROON,TRIM3#
main71071-1H181-03i199105-199205
NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),SHADOW GRAY,TRIM1#
main71071-1H181-04i199105-199205
NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),DARK BLUE,TRIM8#
main71071-1H181-06i199008-199205
BROWN,TRIM4#
main71071-1H280-02i198811-198812
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71071-1H280-03i198808-198811
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H280-04i198708-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71071-1H280-05i198812-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H281-02i198908-199205
W(FULL FABRIC SEAT),MAR00N,TRIM3#
main71071-1H281-03i198908-199205
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H281-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H281-06i199008-199205
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1H340-02i198810-198812
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAROON,TRIM3#
main71071-1H340-03i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H340-05i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H341-02i198908-199205
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAR00N,TRIM3#
main71071-1H341-03i198911-199205
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H341-04i198908-198911
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H640-03i198710-199009
SHADOW GRAY,TRIM1#
main71071-1H640-04i198710-199009
DARK BLUE,TRIM8#
main71071-1H640-05i198710-198908
DARK BEIGE,TRIM1#; DARK BEIGE,TRIM8#
main71071-1H710-02i198710-198908
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71071-1H710-03i198802-198908
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H710-04i198802-198908
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H710-05i198802-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H711-03i198908-199009
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H711-04i198908-199009
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H711-06i198908-199009
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1K010-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1K010-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K010-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1K011-03i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1K011-04i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K011-06i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1K020-03i198708-199207
SHADOW GRAY,TRIM1#
main71071-1K020-04i198908-199207
DARK BLUE,TRIM8#
main71071-1K020-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K020-06i198908-199207
BROWN,TRIM4#
main71071-1K050-03i198802-198908
SHADOW GRAY,TRIM1#
main71071-1K050-04i198802-198908
DARK BLUE,TRIM8#
main71071-1K050-05i198802-198908
DARK BEIGE,TRIM4#
main71071-1K051-03i198908-199009
SHADOW GRAY,TRIM1#
main71071-1K051-04i198908-199009
DARK BLUE,TRIM8#
main71071-1K320-02i199008-199207
MAROON,TRIM3#
main71071-1K320-03i198908-199207
SHADOW GRAY,TRIM1#
main71071-1K320-04i198908-199207
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H150-03i198705-198808
SHADOW GRAY,TRIM1#
main71071-1H150-04i198908-199205
DARK BLUE,TRIM8#
main71071-1H150-05i198808-198908
DARK BEIGE,TRIM4#
main71071-1H180-02i198705-198908
MAROON,TRIM3#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H210-03i198705-199008
SADOW GRAY,TRIM1#
main71071-1H211-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H230-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H230-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H230-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H231-03i198908-199205
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H231-04i198908-199205
W(2WAY VERTICAL SEAT),DARK BLUEE,TRIM8#
main71071-1H231-06i199008-199205
W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H280-02i198810-198811
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAROON,TRIM3#
main71071-1H280-03i198812-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H280-04i198812-198908
W(FULL FABRIC SEAT),BLUE,TRIM8#
main71071-1H280-05i198811-198812
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H281-02i198908-199205
W(FULL FABRIC SEAT),MAR00N,TRIM3#
main71071-1H281-03i198908-199205
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H281-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H281-06i199008-199205
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1H330-03i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H330-04i198812-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H330-05i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H331-03i198908-199108
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H331-04i198908-199205
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H331-06i199008-199205
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H640-03i198802-199009
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71071-1H640-04i198710-199009
DARK BLUE,TRIM8#
main71071-1H640-05i198710-198908
DARK BEIGE,TRIM1#; DARK BEIGE,TRIM8#
main71071-1H710-02i198710-198908
W(FULL FABRIC SEAT),MAROON,TRIM3#
main71071-1H710-03i198802-198908
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H710-04i198802-198908
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H710-05i198802-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H711-03i198908-199009
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H711-04i198908-199009
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H711-06i198908-199009
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1H890-03i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H890-04i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H890-05i198708-198908
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H891-03i198908-199207
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H891-04i198908-199207
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H891-06i198908-199207
W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1K010-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1K010-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K010-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1K011-03i198908-199207
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1K011-04i198908-199207
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1K011-06i198908-199207
W(FULL FABRIC SEAT),BROWN,TRIM4#
main71071-1K020-03i198708-199207
SHADOW GRAY,TRIM1#
main71071-1K020-04i198908-199207
DARK BLUE,TRIM8#
main71071-1K020-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K020-06i198908-199207
BROWN,TRIM4#
main71071-1K050-03i198802-198908
SHADOW GRAY,TRIM1#
main71071-1K050-04i198802-198908
DARK BLUE,TRIM8#
main71071-1K050-05i198802-198908
DARK BEIGE,TRIM4#
main71071-1K100-02i198908-199205
MAROON,TRIM3#
main71071-1K100-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1K100-04i198908-199205
DARK BLUE,TRIM8#
main71071-1K100-06i199008-199205
BROWN,TRIM4#
main71071-1K120-03i198908-199009
SHADOW GRAY,TRIM1#
main71071-1K120-04i198908-199009
DARK BLUE,TRIM8#
main71071-1K320-02i199008-199207
MAROON,TRIM3#
main71071-1K320-03i198908-199207
SHADOW GRAY,TRIM1#
main71071-1K320-04i198908-199207
DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H200-03i198705-199308
SHADOW GRAY,TRIM1#
main71073-1H201-03i198908-199205
SHADOW GRAY,TRIM1#
main71073-1H210-03i198705-199205
W(*HR),SHADOW GRAY,TRIM1#
main71073-1H210-04i198705-198908
W(*HR),DARK BLUE,TRIM8#
main71073-1H210-05i198705-198908
W(*HR),DARK BEIGE,TRIM4#
main71073-1H280-02i198710-198908
W(FULL FABRIC SEAT & *HR),MAROON,TRIM3#
main71073-1H280-03i198802-198908
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#
main71073-1H280-04i198802-198908
BLUE,TRIM8#; W(FULL FABRIC SEAT & *HR),BLUE,TRIM8#
main71073-1H280-05i198802-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#
main71073-1H281-02i198908-199205
W(FULL FABRIC SEAT & *HR),MAR00N,TRIM3#
main71073-1H281-03i198908-199205
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H281-04i198908-199205
W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H281-06i198908-199008
W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#
main71073-1H310-02i198705-198908
MAROON,TRIM3#
main71073-1H310-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H310-04i198705-198908
BLUE,TRIM8#
main71073-1H310-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H311-02i198908-199205
MAROON,TRIM3#
main71073-1H311-03i198908-199205
SHADOW GRAY,TRIM1#
main71073-1H311-04i198908-199205
DARK BLUE,TRIM8#
main71073-1H311-06i198908-199008
BROWN,TRIM4#
main71073-1H320-02i198705-198908
W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71073-1H320-03i198802-198908
SHADOW GRAY,TRIM1#
main71073-1H320-04i198802-198908
BLUE,TRIM8#
main71073-1H320-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71073-1H360-03i198802-199009
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71073-1H360-04i198908-199205
DARK BLUE,TRIM8#
main71073-1H360-05i198802-198908
NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
main71073-1H510-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H510-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H610-03i198708-198908
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H610-04i198710-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H610-05i198708-198908
W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H611-03i198908-199207
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H611-04i198908-199207
W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H611-06i198908-199207
W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#
main71073-1H620-03i198708-199207
SHADOW GRAY,TRIM1#
main71073-1H620-04i198908-199207
DARK BLUE,TRIM8#
main71073-1H620-05i198708-198905
DARK BEIGE,TRIM4#; DARK BEIGE,TRIM8#
main71073-1H620-06i198908-199207
BROWN,TRIM4#
main71073-1H820-02i199008-199207
MAROON,TRIM3#
main71073-1H820-03i198908-199207
SHADOW GRAY,TRIM1#
main71073-1H820-04i198908-199207
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1E160-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E161-03i198908-199205
SHADOW GRAY,TRIM1#
main71074-1E170-03i198705-198908
W(*HR),SHADOW GRAY,TRIM1#
main71074-1E170-04i198705-198908
W(*HR),DARK BLUE,TRIM8#
main71074-1E170-05i198705-198908
W(*HR),DARK BEIGE,TRIM4#
main71074-1E190-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71074-1E190-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71074-1E190-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71074-1E240-02i198808-198908
W(FULL FABRIC SEAT & *HR),MAROON,TRIM3#
main71074-1E240-03i198705-198908
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#
main71074-1E240-04i198802-198908
BLUE,TRIM8#; W(FULL FABRIC SEAT & *HR),BLUE,TRIM8#
main71074-1E240-05i198802-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#
main71074-1E241-02i198908-199205
W(FULL FABRIC SEAT & *HR),MAR00N,TRIM3#
main71074-1E241-03i198908-199205
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E241-04i198908-199205
W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E241-06i199008-199205
W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#
main71074-1E270-02i198705-198908
MAROON,TRIM3#
main71074-1E270-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E270-04i198705-198908
BLUE,TRIM8#
main71074-1E270-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E271-02i198908-199205
MAROON,TRIM3#
main71074-1E271-03i198908-199205
SHADOW GRAY,TRIM1#
main71074-1E271-04i198908-199205
DARK BLUE,TRIM8#
main71074-1E271-06i198908-199008
BROWN,TRIM4#
main71074-1E320-03i198705-198808
SHADOW GRAY,TRIM1#
main71074-1E320-04i198808-198908
DARK BLUE,TRIM8#
main71074-1E320-05i198705-198808
DARK BEIGE,TRIM4#
main71074-1E470-03i198705-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E470-05i198705-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E530-02i199008-199207
MAROON,TRIM3#
main71074-1E530-03i198908-199207
SHADOW GRAY,TRIM1#
main71074-1E530-04i198908-199207
DARK BLUE,TRIM8#
main71074-1E570-03i198708-199207
SHADOW GRAY,TRIM1#
main71074-1E570-04i198908-199207
DARK BLUE,TRIM8#
main71074-1E570-05i198708-198908
DARK BEIGE,TRIM4#
main71074-1E570-06i198908-199207
BROWN,TRIM4#
main71074-1E580-03i198708-198908
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E580-04i198710-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E580-05i198708-198908
W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E581-03i198908-199207
W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E581-04i199008-199207
DARK BLUE,TRIM8#
main71074-1E581-06i198908-199207
W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1H480-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H481-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-03i198705-198808
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198705-198808
***,DARK BLUE,TRIM8#
main71410-1H500-05i198808-198908
***,DARK BEIGE,TRIM4#
main71410-1H510-02i198705-198908
***,W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71410-1H510-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H510-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H511-02i198908-199205
***,W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71410-1H511-03i198908-199205
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H511-04i198908-199205
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H520-02i198705-198908
***,MAROON,TRIM3#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H521-02i198908-199205
***,MAROON,TRIM3#
main71410-1H521-03i199105-199205
***,NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),SHADOW GRAY,TRIM1#
main71410-1H521-04i199105-199205
***,NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),DARK BLUE,TRIM8#
main71410-1H521-06i198908-199008
***,BROWN,TRIM4#
main71410-1H660-02i198705-198808
***,MAROON,TRIM3#
main71410-1H660-03i198808-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198705-198808
***,BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71410-1H660-05i198808-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1H661-02i198908-199205
***,W(FULL FABRIC SEAT),MAR00N,TRIM3#
main71410-1H661-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H661-04i198908-199205
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1H661-06i199008-199205
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1H730-02i198901-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAROON,TRIM3#
main71410-1H730-03i198901-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H730-05i198708-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H731-02i198908-199205
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAR00N,TRIM3#
main71410-1H731-03i198908-198911
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H731-04i198908-199205
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K130-03i198710-199009
***,SHADOW GRAY,TRIM1#
main71410-1K130-04i198710-199009
***,DARK BLUE,TRIM8#
main71410-1K130-05i198802-198908
***,NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
main71410-1K200-02i198710-198908
***,W(FULL FABRIC SEAT),MAROON,TRIM3#
main71410-1K200-03i198802-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K200-04i198802-198908
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K200-05i198802-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K201-03i198908-199009
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-04i198908-199009
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K201-06i198908-199009
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K390-03i198802-198908
***,SHADOW GRAY,TRIM1#
main71410-1K390-04i198802-198908
***,DARK BLUE,TRIM8#
main71410-1K390-05i198802-198908
***,DARK BEIGE,TRIM4#
main71410-1K391-03i198908-199009
***,SHADOW GRAY,TRIM1#
main71410-1K391-04i198908-199009
***,DARK BLUE,TRIM8#
main71410-1K400-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71410-1K400-04i198708-198908
***,DARK BLUE,TRIM8#
main71410-1K400-05i198708-198908
***,DARK BEIGE,TRIM4#
main71410-1K400-06i198908-199207
***,BROWN,TRIM4#
main71410-1K410-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K410-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K410-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K411-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K411-04i198908-199207
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K411-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K520-02i199008-199207
***,MAROON,TRIM3#
main71410-1K520-03i198908-199207
***,SHADOW GRAY,TRIM1#
main71410-1K520-04i198908-199207
***,DARK BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1H490-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H491-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-03i198808-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198808-198908
***,DARK BLUE,TRIM8#
main71410-1H500-05i198705-198808
***,DARK BEIGE,TRIM4#
main71410-1H520-02i198705-198908
***,MAROON,TRIM3#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H530-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H530-04i198705-198908
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H530-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H531-03i198908-199205
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H531-04i198908-199205
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H531-06i198908-199008
***,W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1H660-02i198705-198808
***,MAROON,TRIM3#; ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),MAROON,TRIM3#
main71410-1H660-03i198808-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198705-198808
***,BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),BLUE,TRIM8#
main71410-1H660-05i198808-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1H661-02i198908-199205
***,W(FULL FABRIC SEAT),MAR00N,TRIM3#
main71410-1H661-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H661-04i198908-199205
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1H661-06i198908-199008
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1H740-03i198708-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H740-04i198901-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H740-05i198901-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H741-03i198908-199108
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H741-04i198908-199108
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H741-06i198908-199008
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1K130-03i198802-199009
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71410-1K130-04i198802-199009
***,NEW ZEALAND SPEC,DARK BLUE,TRIM8#
main71410-1K130-05i198710-198908
***,DARK BEIGE,TRIM4#
main71410-1K200-02i198710-198908
***,W(FULL FABRIC SEAT),MAROON,TRIM3#
main71410-1K200-03i198802-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K200-04i198802-198908
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K200-05i198802-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K201-03i198908-199009
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K201-04i198908-199009
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K201-06i198908-199009
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K280-02i198908-199205
***,MAROON,TRIM3#
main71410-1K280-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1K280-04i198908-199205
***,DARK BLUE,TRIM8#
main71410-1K280-06i198908-199008
***,BROWN,TRIM4#
main71410-1K310-03i198908-199009
***,SHADOW GRAY,TRIM1#
main71410-1K310-04i198908-199009
***,DARK BLUE,TRIM8#
main71410-1K390-03i198802-198908
***,SHADOW GRAY,TRIM1#
main71410-1K390-04i198802-198908
***,DARK BLUE,TRIM8#
main71410-1K390-05i198802-198908
***,DARK BEIGE,TRIM4#
main71410-1K400-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71410-1K400-04i198908-199207
***,DARK BLUE,TRIM8#
main71410-1K400-05i198708-198908
***,DARK BEIGE,TRIM4#
main71410-1K400-06i198908-199207
***,BROWN,TRIM4#
main71410-1K410-03i198708-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K410-04i198708-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1K410-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1K411-03i198908-199207
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1K411-04i199008-199207
***,DARK BLUE,TRIM8#
main71410-1K411-06i198908-199207
***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71410-1K420-03i198708-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K420-04i198708-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K420-05i198708-198908
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1K421-03i198908-199207
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K421-04i198908-199207
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K421-06i198908-199207
***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1K520-02i199008-199207
***,MAROON,TRIM3#
main71410-1K520-03i198908-199207
***,SHADOW GRAY,TRIM1#
main71410-1K520-04i198908-199207
***,DARK BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H510-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H511-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71430-1H520-03i198705-199205
***,W(*HR),SHADOW GRAY,TRIM1#
main71430-1H520-04i198705-198908
***,W(*HR),DARK BLUE,TRIM8#
main71430-1H520-05i198705-198908
***,W(*HR),DARK BEIGE,TRIM4#
main71430-1H530-02i198705-198908
***,W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71430-1H530-03i198802-198908
***,SHADOW GRAY,TRIM1#
main71430-1H530-04i198802-198908
***,DARK BLUE,TRIM8#
main71430-1H530-05i198802-198908
***,DARK BEIGE,TRIM4#
main71430-1H531-02i198908-199205
***,W(2WAY VERTICAL SEAT),MAROON,TRIM3#
main71430-1H531-03i198908-199009
***,SHADOW GRAY,TRIM1#
main71430-1H531-04i198908-199205
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71430-1H540-02i198705-198908
***,MAROON,TRIM3#
main71430-1H540-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H540-04i198705-198908
***,BLUE,TRIM8#
main71430-1H540-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H541-02i198908-199205
***,MAROON,TRIM3#
main71430-1H541-03i199105-199205
***,NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),SHADOW GRAY,TRIM1#
main71430-1H541-04i199105-199205
***,NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),DARK BLUE,TRIM8#
main71430-1H541-06i198908-199008
***,BROWN,TRIM4#
main71430-1H610-02i198705-198908
***,W(FULL FABRIC SEAT & *HR),MAROON,TRIM3#
main71430-1H610-03i198705-198908
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#
main71430-1H610-04i198802-198908
***,BLUE,TRIM8#; ***,W(FULL FABRIC SEAT & *HR),BLUE,TRIM8#
main71430-1H610-05i198708-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1H611-02i198908-199205
***,W(FULL FABRIC SEAT & *HR),MAR00N,TRIM3#
main71430-1H611-03i198908-199205
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H611-04i198908-199205
***,W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1H611-06i199008-199205
***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#
main71430-1H680-03i198802-199009
***,NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
main71430-1H680-04i198705-198808
***,DARK BLUE,TRIM8#
main71430-1H680-05i198802-198908
***,NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
main71430-1H860-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H860-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1K080-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71430-1K080-04i198708-198908
***,DARK BLUE,TRIM8#
main71430-1K080-05i198708-198908
***,DARK BLUE,TRIM4#
main71430-1K080-06i198908-199207
***,BROWN,TRIM4#
main71430-1K090-03i198708-198908
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1K090-04i198710-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1K090-05i198708-198908
***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1K091-03i198908-199207
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1K091-04i198908-199207
***,W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71430-1K091-06i198908-199207
***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#; ***,W(FULL FABRIC SEAT),BROWN,TRIM4#
main71430-1K100-02i199008-199207
***,MAROON,TRIM3#
main71430-1K100-03i198908-199207
***,SHADOW GRAY,TRIM1#
main71430-1K100-04i198908-199207
***,DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H450-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H451-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71440-1H460-03i198705-199205
***,W(*HR),SHADOW GRAY,TRIM1#
main71440-1H460-04i198908-199205
***,W(*HR),DARK BLUE,TRIM8#
main71440-1H460-05i198705-198908
***,W(*HR),DARK BEIGE,TRIM4#
main71440-1H470-02i198705-198908
***,MAROON,TRIM3#
main71440-1H470-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H470-04i198705-198908
***,BLUE,TRIM8#
main71440-1H470-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H471-02i198908-199205
***,MAROON,TRIM3#
main71440-1H471-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71440-1H471-04i198908-199205
***,DARK BLUE,TRIM8#
main71440-1H471-06i198908-199008
***,BROWN,TRIM4#
main71440-1H480-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H480-04i198705-198908
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71440-1H480-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71440-1H481-03i198908-199205
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H481-04i198908-199205
***,W(2WAY VERTICAL SEAT),BROWN,TRIM8#
main71440-1H481-06i198908-199008
***,W(2WAY VERTICAL SEAT),MAROON,TRIM4#
main71440-1H540-02i198808-198908
***,W(FULL FABRIC SEAT & *HR),MAROON,TRIM3#
main71440-1H540-03i198705-198808
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#
main71440-1H540-04i198802-198908
***,BLUE,TRIM8#; ***,W(FULL FABRIC SEAT & *HR),BLUE,TRIM8#
main71440-1H540-05i198802-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#
main71440-1H541-02i198908-199205
***,W(FULL FABRIC SEAT & *HR),MAR00N,TRIM3#
main71440-1H541-03i198908-199205
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H541-04i198908-199205
***,W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H541-06i198908-199008
***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4#
main71440-1H600-03i198808-199205
***,SHADOW GRAY,TRIM1#
main71440-1H600-04i198908-199205
***,DARK BLUE,TRIM8#
main71440-1H600-05i198808-198908
***,DARK BEIGE,TRIM4#
main71440-1H780-03i198705-198908
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H780-05i198705-198908
***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H880-03i198708-199207
***,SHADOW GRAY,TRIM1#
main71440-1H880-04i198908-199207
***,DARK BLUE,TRIM8#
main71440-1H880-05i198708-198908
***,DARK BEIGE,TRIM4#
main71440-1H880-06i198908-199207
***,BROWN,TRIM4#
main71440-1H890-03i198708-198908
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H890-04i198710-198908
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71440-1H890-05i198708-198908
***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H891-03i198908-199207
***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H891-04i199008-199207
***,DARK BLUE,TRIM8#
main71440-1H891-06i199008-199207
***,BROWN,TRIM4#
main71440-1K180-02i199008-199207
***,MAROON,TRIM3#
main71440-1K180-03i198908-199207
***,SHADOW GRAY,TRIM1#
main71440-1K180-04i198908-199207
***,DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i198908-199205
W(2WAY VERTICAL SEAT)
main71505-12050i198705-199308
main71505-12060i198705-199308
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12030i198705-199205
W(2WAY VERTICAL SEAT)
main71506-12040i198705-199308
main71506-12050i198705-199308
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12580i198705-199308
main71511-12590i198705-199308
main71511-12610i198705-199308
main71511-12670i198710-199009
main71511-12680i198802-199009
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12580i198705-199308
main71511-12590i198811-198908
W(FULL FABRIC SEAT) & W(VINYL HEAD REST),0
main71511-12610i198705-199308
main71511-12670i198710-199009
main71511-12680i198802-199009
71553BPAD, FRONT SEATBACK, B
main71553-12200i198705-199308
71553CPAD, FRONT SEATBACK, C
main71553-12200i198705-199308
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12320i198710-199009
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12320i198710-199009
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i198705-199308
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i198705-199308
71910AHEADREST ASSY, FRONT SEAT
main71910-12710-02×2i198705-198908
MAROON,TRIM3#
main71910-12710-03×2i198705-198804
SHADOW GRAY,TRIM1#
main71910-12710-04×2i198705-198804
BLUE,TRIM8#
main71910-12710-05×2i198705-198804
DARK BEIGE,TRIM4#
main71910-12710-13×2i198804-198908
SHADOW GRAY,TRIM1#
main71910-12710-14×2i198804-198908
DARK BLUE,TRIM8#
main71910-12710-15×2i198802-198804
DARK BEIGE,TRIM4#
main71910-12711-02×2i198908-199205
MAROON,TRIM3#
main71910-12711-03×2i198908-199205
SHADOW GRAY,TRIM1#
main71910-12711-04×2i198908-199205
DARK BLUE,TRIM8#
main71910-12711-06×2i199008-199205
BROWN,TRIM4#
main71910-12760-03×2i198705-198808
W(VINYL HEADREST),SHADOW GRAY,TRIM1#
main71910-12760-04×2i198705-198908
W(VINYL HEADREST),DARK BLUE,TRIM8#
main71910-12760-05×2i198808-198908
DARK BEIGE,TRIM4#; W(VINYL HEADREST),DARK BEIGE,TRIM4#
main71910-12790-02×2i198808-198908
W(FABRIC HEADREST),MAROON,TRIM3#
main71910-12790-03×2i198708-198908
W(FABRIC HEADREST),SHADOW GRAY,TRIM1#
main71910-12790-04×2i198802-198908
BLUE,TRIM8#; W(FABRIC HEADREST),BLUE,TRIM8#
main71910-12790-05×2i198802-198908
DARK BEIGE,TRIM4#; W(FABRIC HEADREST),DARK BEIGE,TRIM4#
main71910-12791-02×2i198908-199205
W(FABRIC HEADREST),MAROON,TRIM3#
main71910-12791-03×2i198908-199207
SHADOW GRAY,TRIM1#; W(FABRIC HEADREST),SHADOW GRAY,TRIM1#
main71910-12791-04×2i198908-199207
DARK BLUE,TRIM8#; W(FABRIC HEADREST),DARK BLUE,TRIM8#
main71910-12791-06×2i199008-199207
BROWN,TRIM4#; W(FABRIC HEADREST),BROWN,TRIM4#
main71910-12840-13×2i198705-199308
SHADOW GRAY,TRIM1#
main71910-12871-01×2i198908-199205
BLACK,TRIM1#
main71910-1A110-02×2i198908-198909
W(VINYL HEADREST),MAROON,TRIM3#
main71910-1A110-03×2i199008-199207
SHADOW GRAY
main71910-1A110-06×2i198908-198909
BROWN,TRIM4#; W(VINYL HEADREST),BROWN,TRIM4#
main71910-1A110-B0×2i199008-199207
SHADOW GRAY,TRIM1#
main71910-1A110-D0×2i198909-199205
W(VINYL HEADREST),MAROON,TRIM3#
main71910-1A110-E1×2i198909-199008
W(VINYL HEADREST),BROWN,TRIM4#
main71910-1A110-J0×2i199105-199205
NEW ZEALAND GL EXTRA & W(VINYL HEAD REST),DARK BLUE,TRIM8#
main71910-1A120-02×2i199008-199207
MAROON,TRIM3#
main71910-1A120-03×2i198908-199207
SHADOW GRAY,TRIM1#
main71910-1A120-04×2i198908-199207
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-02×2i198812-198908
W(LOCK),MAROON,TRIM3#
main71930-12050-03×2i198812-198911
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04×2i198802-199009
W(LOCK),DARK BLUE,TRIM8#
main71930-12050-05×2i198811-198812
W(LOCK),DARK BEIGE,TRIM4#
main71930-12050-16×2i198908-199008
W(LOCK),BROWN,TRIM4#
main71930-12060-03×2i198705-199308
W(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-02×2i198908-199008
W/O(LOCK),MAROON,TRIM3#
main71931-12010-03×2i199107-199308
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198911-199205
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-05×2i198802-198908
W/O(LOCK),DARK BEIGE,TRIM4#
main71931-12010-16×2i199008-199107
W/O(LOCK),BROWN,TRIM4#
main71931-12030-03×2i198705-199308
W/O(LOCK),SHADOW GRAY,TRIM1#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i198908-199205
main72750-12070i198705-199308
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-12070i198705-199205
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i198908-199205
main72774-12030i198808-199308
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198705-198908
SHADOW GRAY,TRIM1#
main72791-20030-05i198705-198908
DARK BEIGE,TRIM4#
main72791-20030-12i198705-198908
MAROON,TRIM3#
main72791-20030-14i198908-199205
DARK BLUE,TRIM8#
main72791-20030-26i199008-199308
BROWN,TRIM4#
main72791-22020-23i198705-199308
GRAY,TRIM1#
9038612050
main90386-12050
9046818071
main90468-18071
9052001274
main90520-01274
9052308001
main90523-08001
9165540620
main91655-40620

31 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
