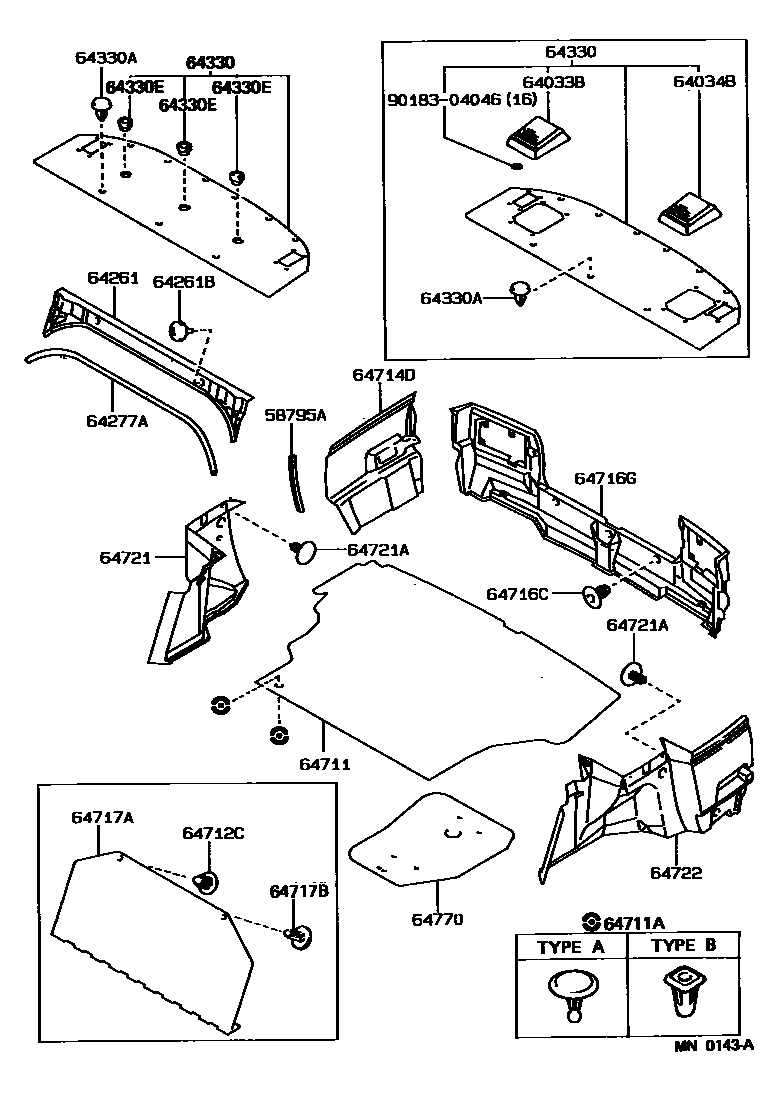

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58795ATRIM, JACK HOUSE OPENING
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
64261GARNISH, ROOM PARTITION
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
64261BCUSHION(FOR ROOM PARTITION GARNISH)
64277AMOULDING, ROOM PARTITION TRIM
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
W(REAR SPEAKERS),MAROON,TRIM3#
main64330-12790-03iAE92..LHD..SED..3FC..XL; AE92..RHD..3FC..XL..GEN;EE90..SED..(STD,XL)..GEN;AE92,CE90..SED..(4FC,5F)..(STD,XL)..GEN198905-199205
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
W(REAR SPEAKERS),DARK BLUE,TRIM8#
main64330-12790-05iAE92..LHD..SED..3FC..XL; AE92..RHD..XL..GEN;EE90..SED..(STD,XL)..GEN;AE92,CE90..5F..(STD,XL)..GEN198905-198908
W(REAR SPEAKERS),DARK BEIGE,TRIM4#
main64330-12790-06iAE92..3FC..XL..GEN; EE90..LHD..SED..XL..GEN;AE92,CE90..LHD..5F..XL..GEN198908-199205
W(REAR SPEAKERS),BROWN,TRIM4#
W(REAR SPEAKERS),MAROON,TRIM3#
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
W(REAR SPEAKERS),DARK BLUE,TRIM8#
W(REAR SPEAKERS),DARK BEIGE,TRIM4#
W(REAR SPEAKERS),BROWN,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(3POINT TYPE REAR SEAT BELT),MAROON,TRIM3#
W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(3POINT TYPE REAR SEAT BELT),MAROON,TRIM3#
W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),MAROON,TRIM3#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),MAROON,TRIM3#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),MAR00N,TRIM3#
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),MARRON,TRIM3#
main64330-1A190-03iAE92..LHD..SED..3FC..XL; AE92..RHD..3FC..XL..GEN;EE90..SED..(STD,XL)..GEN;AE92,CE90..SED..(4FC,5F)..(STD,XL)..GEN198905-199205
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),SHADOW GRAY,TRIM1#
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),DARK BLUE,TRIM8#
main64330-1A190-05iAE92..LHD..SED..3FC..XL; AE92..RHD..XL..GEN;EE90..SED..(STD,XL)..GEN;AE92,CE90..5F..(STD,XL)..GEN198905-198908
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),DARK BEIGE,TRIM4#
main64330-1A190-06iAE92..3FC..XL..GEN; EE90..LHD..SED..XL..GEN;AE92,CE90..LHD..5F..XL..GEN198908-199205
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),BROWN,TRIM4#
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),MAROON,TRIM3#
SHADOW GRAY,TRIM1#; W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#; W(REAR SPEAKERS),DARK BEIGE,TRIM4#
W(3-POINT TYPE REAR SEAT BELT & REAR SPEAKERS),BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
GRAY,TRIM1#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BEIGE,TRIM4#
LIGHT BLUE,TRIM8#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-02×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN198908-198909
MAROON,TRIM3#
main90950-01436-13×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN198908-199009
GRAY,TRIM1#
main90950-01436-24×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN198908-198909
DARK BLUE,TRIM8#
main90950-01436-B1×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN199009-199205
SHADOW GRAY,TRIM1#
main90950-01436-D0×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN198909-199205
MAROON,TRIM3#
main90950-01436-J0×3iAE92..SED..4FC..GL;EE90..RHD..SED..5F..XL..GEN;AE92..RHD..SED..5F..(GL,XL)..GEN198909-199205
DARK BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
LIGHT GRAY,TRIM1#,4#; LIGHT GRAY,TRIM1#,8#
LIGHT GRAY,TRIM1#,4#,8#
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
main90467-07079-B3×4iAE92,EE90..LHD..SED..GL; AE92,EE90..RHD..SED..GL..GEN; AE92..GT..GEN199008-199205
LIGHT GRAY,TRIM1#,3#,8#,MALE; LIGHT GRAY,TRIM1#,4#,8#,MALE; LIGHT GRAY,TRIM1#,MALE
FEMALE
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-10034-01×2iAE9#,CE90,EE90..LHD..SED..XL; AE9#,EE90..RHD..SED..XL..GEN; AE92,EE90..STD;AE92,EE90..XL..SA198705-198908
BLACK,TRIM1#,3#,4#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-12100-03iAE92,CE90,EE90..LHD..SED..(GL,XL); AE92,EE90..(GL,SE,XL)..SA; AE92..GT198908-199308
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,4#; LIGHT GRAY,TRIM1#,4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05014-23×15iAE92,EE90..LHD..SED..GL; AE92,EE90..RHD..SED..GL..GEN; AE92..(GL,SE)..SA; AE92..GT198705-198809
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#; GRAY,TRIM1#,4#,8#
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,3#,8#; LIGHT GRAY,TRIM1#,4#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-01010-B0iAE92,CE90,EE90..LHD..SED..XL; AE92,EE90..STD..(GCC,GEN); AE92..SE..GCC;AE92,EE90..RHD..SED..XL..GEN199106-199207
LIGHT GRAY,TRIM1#,3#,8#; LIGHT GRAY,TRIM1#,4#,8#; LIGHT GRAY,TRIM1#,8#
main64717-12020-03iAE92,CE90,EE90..LHD..SED..XL; AE92,EE90..STD..(GCC,GEN); AE92..SE..GCC;AE92,EE90..RHD..SED..XL..GEN199008-199308
GRAY,TRIM1#,3#,8#; GRAY,TRIM1#,4#,8#; GRAY,TRIM1#,8#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,4#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-03iAE9#,CE90,EE90..LHD..SED..(GL,XL)..GEN; AE9#,EE90..RHD..SED..(GL,XL); AE92,EE90..STD..GEN198801-198807
GRAY,TRIM1#,4#,TYPE A; W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#,3#,4#,TYPE A; W(3POINT TYPE REAR SEAT BELT),GRAY,TRIM1#,4#,8#,TYPE A
main90467-07042-B0×2iAE9#,CE90,EE90..LHD..SED..(GL,XL); AE9#,CE90,EE90..LHD..SED..(GL,XL)..GEN; AE9#,EE90..RHD..SED..(GL,XL)..GEN; AE92,EE90..(3FC,4FC,5F)..SA; AE92,EE90..STD..GEN198807-198908
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#; LIGHT GRAY,TRIM1#,4#,TYPE A; W(3POINT TYPE REAR SEAT BELT),LIGHT GRAY,TRIM1#,3#,4#,TYPE A; W(3POINT TYPE REAR SEAT BELT),LIGHT GRAY,TRIM1#,4#,8#,TYPE A
main90468-04132-03iAE9#,CE90,EE90..LHD..SED..(GL,XL)..GEN; AE9#,EE90..RHD..SED..(GL,XL)..GEN; AE92,EE90..STD..GEN198801-198908
LIGHT GRAY,TRIM1#,4#,TYPE B; W(3POINT TYPE REAR SEAT BELT),LIGHT GRAY,TRIM1#,3#,4#,TYPE B; W(3POINT TYPE REAR SEAT BELT),LIGHT GRAY,TRIM1#,4#,8#,TYPE B
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LIGHT GRAY,TRIM1#; LIGHT GRAY,TRIM1#,4#
LIGHT GRAY,TRIM1#,3#,4#; LIGHT GRAY,TRIM1#,4#,8#
64770COVER ASSY, SPARE WHEEL
9018304046
main90183-04046
22 parts on this diagram · 1 diagram in section
