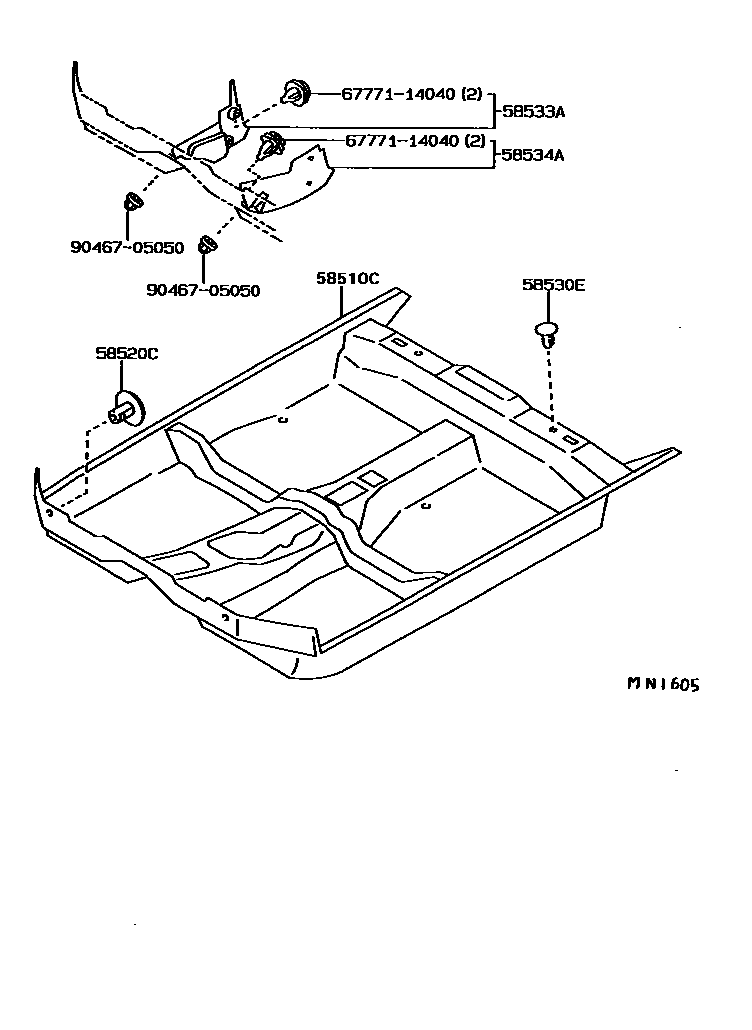

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
W(FOOTREST),SHADOW GRAY,TRIM1#
W(FOOTREST),DARK BLUE,TRIM8#
W(FOOTREST),DARK BEIGE,TRIM4#
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
W(FOOTREST),SHADOW GRAY,TRIM1#
W(FOOTREST),DARK BLUE,TRIM8#
W(FOOTREST),DARK BEIGE,TRIM1#
W(FOOTREST & FRONT SEAT BELT),SAHDOW GRAY,TRIM1#
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM1#
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
MAROON,TRIM3#; W(FOOTREST),MAROON,TRIM3#
SHADOW GRAY,TRIM1#; W(FOOTREST),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#; W(FOOTREST),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#; W(FOOTREST),DARK BEIGE,TRIM4#
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#; W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#; W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
W(FOOTREST & FRONT SEAT BELT),BROWN,TRIM4#; W(FRONT SEAT BELT),BROWN,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#; W(FOOTREST),SHADOW GRAY,TRIM1#
W(FOOTREST),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#; W(FOOTREST),DARK BEIGE,TRIM4#
BROWN,TRIM4#; W(FOOTREST),BROWN,TRIM4#
MAROON,TRIM3#
VENEZUELA SPEC & W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#; W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#; W(FRONT SEAT BELT),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
VENEZUELA SPEC & W(FRONT SEAT BELT),BROWN,TRIM4#; W(FRONT SEAT BELT),BROWN,TRIM4#
W(FRONT SEAT BELT),MAROON,TRIM3#
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
W(FOOTREST & FRONT SEAT BELT),MAROON,TRIM3#; W(FRONT SEAT BELT),MAROON,TRIM3#
main58510-1A260-03iAE92,EE90..RHD..(GL,GT)..GEN; AE92,EE90..RHD..(LB,SED)..(STD,XL)..GEN198908-199205
W(FOOTREST & FRONT SEAT BELT),SHADOW GRAY,TRIM1#; W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FOOTREST & FRONT SEAT BELT),DARK BLUE,TRIM8#; W(FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FOOTREST & FRONT SEAT BELT),DARK BEIGE,TRIM4#; W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
BROWN,TRIM8#
DARK BEIGE,TRIM4#
W(FRONT SEAT BELT),MAROON,TRIM3#
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#; W(FRONT SEAT BELT),DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
W(FRONT SEAT BELT),DARK BEIGE,TRIM4#
W(FRONT SEAT BELT),BROWN,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-09068-01×2iAE92,EE90..RHD..(LB,SED)..(GL,XL); AE92..GTI; AE92..LHD..LB..5F;AE92..LHD..3FC..GL;AE92,CE90,EE90..LHD..(LB,SED)..XL; EE90..STD;EE90..LHD..GL;AE92..LHD..SED..5F..(GL,STD)198705-198802
BLACK,TRIM1#; BLACK,TRIM1#,3#,4#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#
SHADOW GRAY,TRIM1#
DARK BEIGE,TRIM4#
main90467-09068-11×2iAE9#,CE90,EE90..LHD..(GL,XL); AE92,EE90..RHD..SED..(GL,XL)..GEN; EE97;AE9#,EE90..RHD..(LB,WG);AE92,EE90..(SE,STD)..(GCC,GEN)198908-199008
BLACK,TRIM1#,3#,8#; BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
DARK BLUE,TRIM8#
58530ECLIP(FOR FRONT FLOOR REAR CARPET)
main90467-06049-01×2iAE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN; AE92,EE90..STD;AE92,EE90..(GL,SE,XL)..SA; AE92..GT,GTI; AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL)198705-198908
BLACK,TRIM1#; BLACK,TRIM1#,3#,4#; BLACK,TRIM1#,4#; BLACK,TRIM1#,4#,8#
GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
main90467-06049-16×2iAE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA198908-198909
BROWN,TRIM4#
main90467-06049-24×2iAE92,CE90,EE90..LHD..XL..GEN; AE95..WG;EE90..XL..GCC;AE95..LHD..SED;AE92,EE90..LHD..GL198705-198809
DARK BLUE,TRIM8#
LIGHT BEIGE,TRIM4#
LIGHT BROWN,TRIM4#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
main90467-06049-E4×2iEE90..LHD..SED..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA;AE9#,CE90..LHD..(SED,WG)..(GL,XL)..GEN199008-199308
BROWN,TRIM4#
DARK BLUE,TRIM8#
58533ACOVER, FLOOR CARPET, CENTER RH
58534AMAT, TRANSMISSION COVER
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
9046705050
main90467-05050
7 parts on this diagram · 5 diagrams in section
