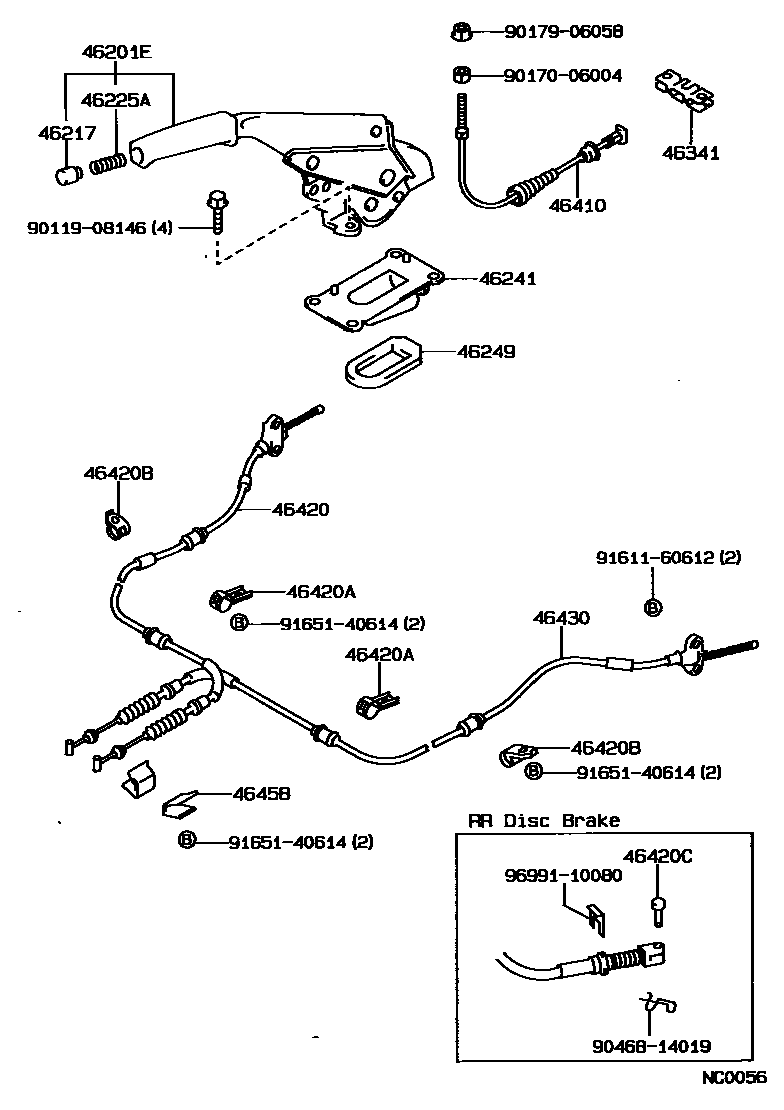

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12100-02iAE9#,EE90..RHD..(LB,SED)..XL198705-198801

MAROON,TRIM3#

main46201-12100-03iAE9#,CE90,EE9#..STD,XL198705-198801

SHADOW GRAY,TRIM1#

main46201-12100-04iAE9#,CE90,EE9#..LHD..XL198705-198801

DARK BLUE,TRIM8#

main46201-12100-05iAE9#,CE90,EE9#..STD,XL198705-198801

DARK BEIGE,TRIM4#

main46201-12101-03iAE92..SE..GCC;AE9#,CE90,EE9#..STD,XL198801-199009

SHADOW GRAY,TRIM1#

main46201-12101-06iEE90..SA;AE92..XL..(GCC,SA);AE9#,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL199008-199308

BROWN,TRIM4#

main46201-12101-B0iAE92..SE..GCC;AE92,CE90,EE9#..STD,XL199009-199308

SHADOW GRAY,TRIM1#

main46201-12101-D0iAE9#,EE90..RHD..(LB,SED)..XL..GEN198809-198908

MAROON,TRIM3#

main46201-12101-E0iAE9#,CE90,EE9#..STD,XL198809-198908

DARK BEIGE,TRIM4#

main46201-12101-J0iAE9#,CE90,EE9#..(SE,STD,XL)..(ARL,GCC,GEN)198908-199207

DARK BLUE,TRIM8#

main46201-12110-02iAE92,EE90..RHD..GL198705-198801

MAROON,TRIM3#

main46201-12110-03iAE92,EE90..GL,GTI198705-198801

SHADOW GRAY,TRIM1#

main46201-12110-04iAE92,EE90..LHD..GL198705-198801

DARK BLUE,TRIM8#

main46201-12110-05iAE92,EE90..GL198705-198801

DARK BEIGE,TRIM4#

main46201-12111iAE92,EE90..(3FC,5F)..GL..GEN198908-199203

main46201-12111-03iAE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA)198909-199308

SHADOW GRAY,TRIM1#

main46201-12111-06iAE92..(GL,SE)..SA;AE92,EE90..LHD..GL198908-199008

BROWN,TRIM4#

main46201-12111-D0iAE92,EE90..RHD..GL..GEN198809-198908

MAROON,TRIM3#

main46201-12111-E0iAE9#,EE90..GL,SE,SR5198809-198908

DARK BEIGE,TRIM4#

main46201-12111-J0iAE95..SR5;AE92,EE90..LHD..GL198809-198908

DARK BLUE,TRIM8#

main46201-12140-03iAE92..GT..GEN198909-199205

SHADOW GRAY,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iAE92..GT199203-199308

main46217-12020-03iAE9#,CE90,EE9#198908-199009

SHADOW GRAY,TRIM1#

main46217-12020-D0iAE92,EE90..RHD..SED..(GL,XL)..GEN198908-199205

MAROON,TRIM3#

main46217-12020-E0iAE9#,CE90,EE9#..GL,SE,SR5,STD,XL198802-198908

DARK BEIGE,TRIM4#

main46217-12020-E1iAE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA198908-199008

BROWN,TRIM4#

main46217-12020-J0iAE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL)198801-198908

DARK BLUE,TRIM8#

main46217-20020-15iAE9#,CE90,EE9#..GL,STD,XL198705-198712

BEIGE,TRIM4#

main46217-20020-42iAE9#,EE90..RHD..(LB,SED)..(GL,XL)198705-198712

MAROON,TRIM3#

main46217-20020-43iAE9#,CE90,EE9#198705-198712

SHADOW GRAY,TRIM1#

main46217-20020-54iAE9#,CE90,EE9#..LHD..(GL,XL)198705-198712

DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAE92,EE90199205-199308

46241BOOT, PARKING BRAKE LEVER

main46241-12080iAE92,EE90199205-199308

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iAE9#,CE90,EE9#198705-198811

46341EQUALIZER, PARKING BRAKE

main46341-12010iAE92,CE90,EE9#198705-198712

main46341-32010iAE9#,CE90,EE9#198712-198811

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12160iAE92,EE90199205-199308

main46410-12190iAE95198710-199009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12340iAE92..GT..SA;AE92,CE90,EE90..GL,SE,STD,XL198908-199308

main46420-12360iAE92..GT..GEN198811-199205

main46420-12370iAE95198710-198801

main46420-12371iAE95198908-199009

main46420-13050iEE97198708-199205

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121iAE95198801-199009

LH

main90949-01016×2iAE92,CE90,EE9#..GL,GT,SE,STD,XL198811-198903

main90949-01479iAE95198801-199009

RH

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015×2iAE92,CE90,EE9#..GL,GT,SE,STD,XL198811-198903

main90949-01746×2iAE92,CE90,EE9#199107-199205

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iAE92..GT..GEN198811-199205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12240iAE92,CE90,EE90..GL,GT,SE,STD,XL198705-198903

main46430-12260iAE92..GT..GEN198811-199205

main46430-12271×2iAE95198801-198908

main46430-12280iAE95198710-198801

main46430-13050iEE97198708-199205

46458RETAINER, CABLE

main46458-20020×2iAE9#,CE90,EE9#198705-198906

main46458-50010×2iAE9#,CE90,EE9#..ARL,GCC,GEN198908-199205

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
