EXHAUST PIPE

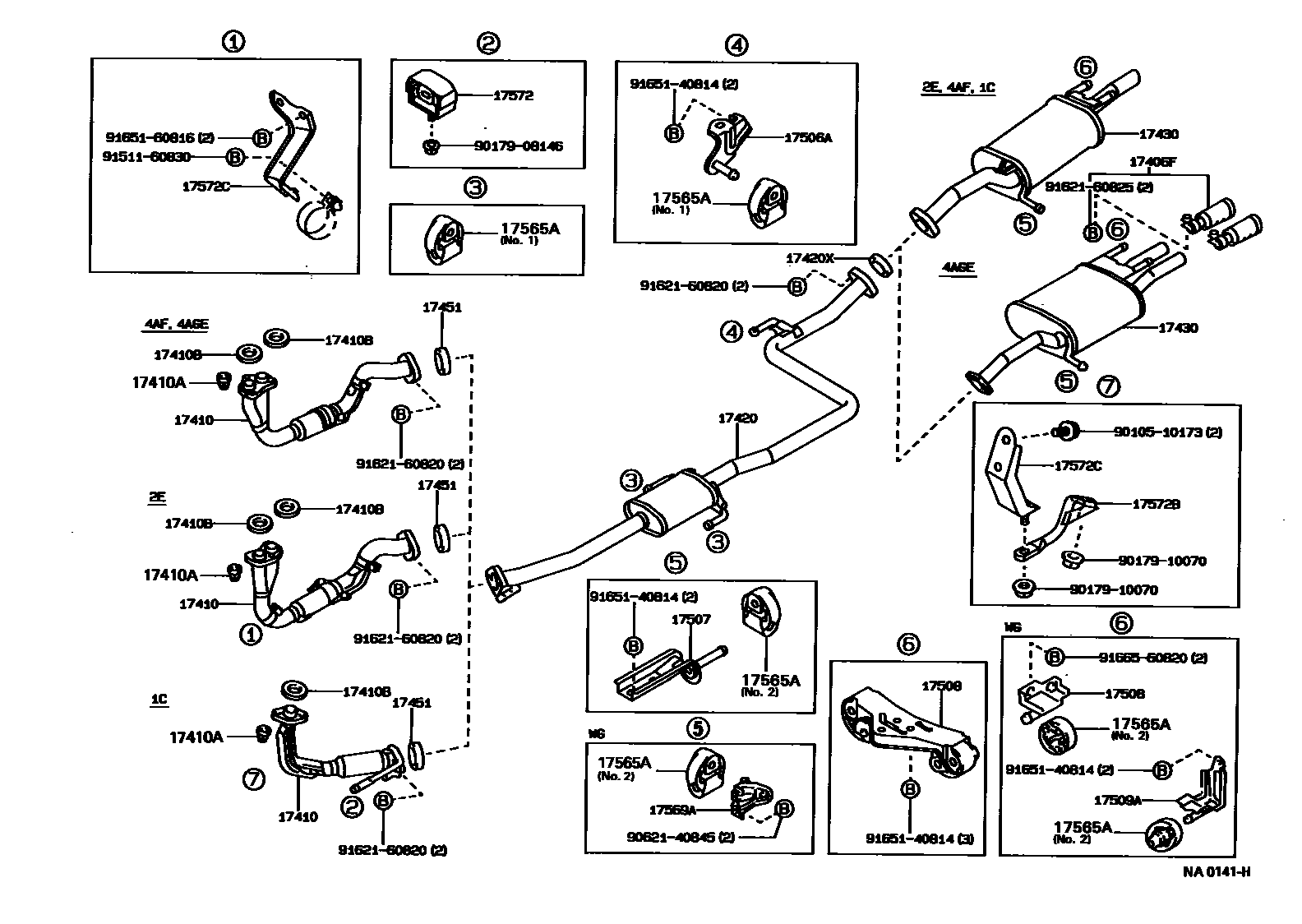

Parts diagram
17406FDIFFUSER SUB-ASSY, EXHAUST GAS
main17406-19015×2i198705-198908
main17406-19025×2i198908-199205
17410PIPE ASSY, EXHAUST, FRONT
main17410-11280i198705-199308
main17410-16410i198705-198908
main17410-16420i198705-199308
main17410-16550i198802-199008
main17410-16551i199008-199009
main17410-16560i198908-199004
main17410-16561i199004-199009
main17410-16700i198908-199308
main17410-64270i198705-199205
17410ANUT, EXHAUST PIPE SET STUD BOLT
main90179-10070×2i198908-199205
17410BGASKET, EXHAUST PIPE
main90917-06001×2i198705-198903
main90917-06004i198705-198903
main90917-06006×2i198705-198903
main90917-06037×2i198903-199308
main90917-06038×2i198903-198908
main90917-06039i198908-199205
main90917-06045i198802-198908
main90917-06047i198908-199009
main90917-06064×2i199111-199308
17420PIPE ASSY, EXHAUST, CENTER
main17420-11060i198705-198905
main17420-11061i198905-198908
main17420-11110i198908-199207
main17420-16140i198705-198908
main17420-16150i198908-199308
main17420-16180i198710-198905
main17420-16190i198802-198905
main17420-16191i198908-199009
main17420-16241i198908-199004
main17420-16242i199004-199009
main17420-16390i198908-199207
main17420-16430i198908-199308
main17420-64090i198705-198905
main17420-64091i198905-199205
17420XGASKET, EXHAUST PIPE, CENTER
main90917-06001i198705-198903
main90917-06004i198705-198903
main90917-06012i198705-198903
main90917-06038i198903-199111
main90917-06039i198903-199308
main90917-06045i198908-199308
main90917-06047i198903-198908
main90917-06060i199111-199308
17430PIPE ASSY, EXHAUST, TAIL
main17430-11190i198908-199308
main17430-11210i198708-198908
main17430-11230i198708-198905
main17430-11231i198908-199108
main17430-11340i198908-199207
main17430-11360i198908-199207
main17430-16390i198705-198908
main17430-16430i198908-199308
main17430-16530i198802-198908
main17430-16531i198908-199009
main17430-16550i198710-198905
main17430-16560i198802-198905
main17430-16561i198908-199006
main17430-16810i198908-199308
main17430-16840i198908-199207
main17430-16870i199006-199009
main17430-1A020i198908-199207
main17430-64450i198705-198908
17451GASKET, EXHAUST PIPE
main90917-06004i198705-198903
FR
main90917-06012i198705-198903
main90917-06023i198802-198903
CTR
main90917-06039i198903-199308
FR
main90917-06041i198903-198908
CTR
main90917-06045i198908-199308
main90917-06047i198908-199104
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
main17506-15050i198705-199308
main17506-16040i198710-199009
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
main17507-11030i198708-199108
main17507-15030i198705-199308
main17507-16020i198710-199009
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
main17508-11020i198708-199108
main17508-15030i198705-199308
main17508-16040i198710-199009
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
main17509-11020i198708-199108
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-15050i198705-199308
NO.2
main17565-15070×4i198705-199308
NO.1
main17565-15110i199010-199108
NO.3
main17565-63030×6i198908-199009
NO.2
main17565-63071×2i198710-199009
NO.1
17569APLATE, EXHAUST PIPE SUPPORT
main17569-11010i198708-199108
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
main17572-15050i198705-199308
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-64120i198705-199205
17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
main17571-11110i198705-199308
main17571-64130i198705-198908
9010510173
main90105-10173
9017908146
main90179-08146
9017910070
main90179-10070
9062140845
main90621-40845
9151160830
main91511-60830
9162160820
main91621-60820
9162160825
main91621-60825
9165140814
main91651-40814
9165160816
main91651-60816
9166560820
main91665-60820

27 parts on this diagram · 6 diagrams in section
