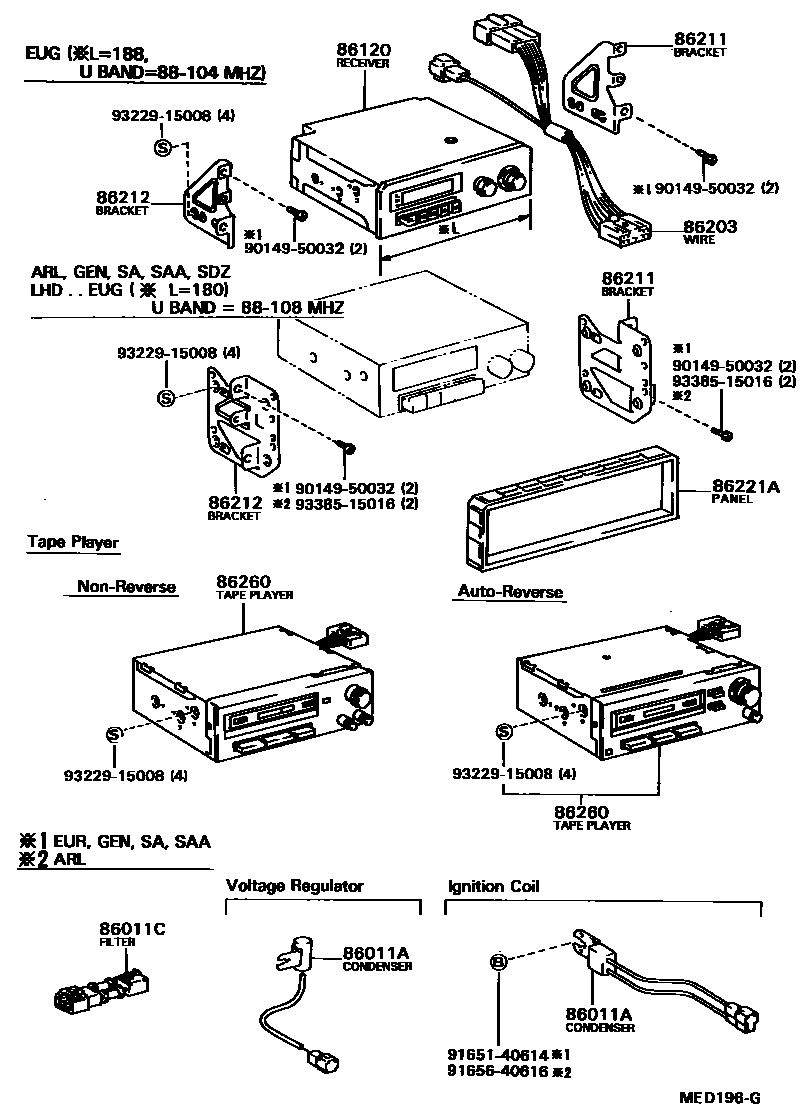

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04041iAE8#198305-198410

IGNITION COIL

main90980-04043iAE8#..(5D,5DS)..(CS,CSX);AE82..4DS..(3FC,5F)..ARL198605-198807

VOLTAGE REGULATOR

main90980-04055iAE8#,EE80..EUR,GEN,SA,SAA198410-198804

IGNITION COIL

86011CFILTER, NOISE

main90980-05049iAE8#,CE80,EE80..EUR198305-198704

W/AM/FM,LW/MW/UKW OR LW/MW/FM

86120RECEIVER ASSY, RADIO

main86120-14391iAE8#,CE80,EE80..GEN,SAA198305-198505

MW/SW

main86120-14392iAE82,CE80,EE80..GEN,SAA198505-198707

MW/SW

main86120-14420iAE8#,CE80..GEN,SAA; AE8#,CE80..LHD..EUG198305-198406

AM; AM,L=180

main86120-14421iAE8#,CE80,EE80..LHD..(EUG,FRG)198406-198704

AM,L=180

main86120-14430iAE8#,CE80..GEN,SAA198305-198408

AM/FM

main86120-14431iAE8#,CE80,EE80..GEN,SAA198408-198707

AM/FM

main86120-14451iAE82,CE80,EE80..LHD..EUG198410-198505

AM/FM MULTIPLEX,L=180

main86120-14452iAE82,CE80,EE80..LHD..(EUG,FRG)198505-198608

AM/FM MULTIPLEX,L=180

main86120-14460iAE8#,CE80,EE80..(DX,GL,GT,XL)..GEN198305-198412

AM/FM MULTIPLEX

main86120-14461iAE82..5DS..GT198511-198605

AM/FM MULTIPLEX

main86120-14480iAE82..4DS..GL..SA198402-198410

*18

main86120-16260iAE8#,CE80..EUG198305-198409

LW/MW/UKW,L=188(U BAND=88-104)

main86120-16261iAE8#..SA198409-198410

LW/MW/UKW,L=188(U BAND=88-104)

main86120-17100iAE82,EE80..RHD..(GL,GT)..EUG198603-198608

*67,L=180,TEN

main86120-19016iAE82..5DS..GT..ARL198605-198807

FUJITSU TEN,AM/FM MULTIPLEX

main86120-22390iAE8#,CE80..LHD..EUG198305-198409

LW/MW/UKW,L=180(U BAND=88-108)

main86120-22391iAE8#,CE80,EE80..LHD..(EUG,FRG)198409-198704

FUJITSU TEN,LW/MW/UKW,(1 SPEAKER),L=180

main86120-22400iCE80..LHD..EUG198310-198409

LW/MW/UKW,W/ARI,L=180

main86120-22401iAE82,EE80..FRG,SDZ; CE80..LHD..EUG198409-198603

LW/MW/UKW,W/ARI; LW/MW/UKW,W/ARI,L=180

main86120-22402iAE82,EE80..FRG,SDZ; CE80..LHD..EUG198603-198608

FUJITSU TEN,LW/MW/UKW,W/ARI,L=180

main86120-32070iAE82,CE80,EE80..LHD..(DX,GL,GT)..(EUG,FRG); AE82..RHD..EUG198505-198608

LW/MW/FM,L=188,W/CASSETTE

main86120-32100iAE82,CE80,EE80..EUR198608-198704

*67,L=180,MATSUSHITA

main86120-32110iAE82,CE80,EE80..EUR198608-198704

LW/MW/UKW(2SP)W/ARI,L=180,*ELT

main86120-32240iAE82,CE80,EE80..EUR198608-198704

LW/MW/UKW,(2SP),L=180,*ELT

main86120-39015iAE82..5D..GT..ARL198511-198807

*18,W/CASSETTE

86203WIRE, RADIO

main86203-17010iAE82,EE80..RHD..(GL,GT)..EUG198603-198608

W/*67

main86203-20160iAE82,CE80,EE80..EUR198608-198704

W/LW/MW/UKW(2 SPEAKERS),L=180

main86203-20170iAE82,CE80,EE80..EUR198608-198704

W/*67

86211BRACKET, RADIO, NO.1

main86211-12140iAE82..4DS..(3FC,5F)..ARL;AE8#..(5D,5DS)..(CS,CSX,GT)..ARL198605-198807

main86211-12150iAE82,CE80,EE80..EUR198608-198704

W/RADIO RECEIVER PANEL

main86211-12160iAE82,CE80,EE80..LHD..(DX,GL,GT)..(EUG,FRG); AE82..RHD..EUG198505-198608

RADIO SIZE:L=188,W/CASSETTE

86212BRACKET, RADIO, NO.2

main86212-12120iAE8#,CE80,EE80..GEN,SA,SAA198305-198804

main86212-12130iAE82,EE80..RHD..(GL,GT)..EUG198603-198608

RADIO SIZE:L=180,W/CASSETTE

main86212-12140iAE82,CE80,EE80..LHD..(DX,GL,GT)..(EUG,FRG); AE82..RHD..EUG198505-198608

RADIO SIZE:L=188,W/CASSETTE

86221APANEL, RADIO RECEIVER

main86220-12010iAE82,EE80..RHD..(GL,GT)..EUG198603-198608

W/*67

86260TAPE PLAYER ASSY

main86260-14210iEE80..XL..SAA198505-198707

NON-REVERSE

main86260-14271iAE82,CE80,EE80..LHD..EUR198610-198704

main86260-19045iAE8#,CE80,EE80..GEN,SAA; AE8#,CE80,EE80..LHD..EUR198305-198610

AUTO-REVERSE

9014950032

main90149-50032

9165140614

main91651-40614

9165640616

main91656-40616

9322915008

main93229-15008

9338515016

main93385-15016

13 parts on this diagram · 3 diagrams in section
