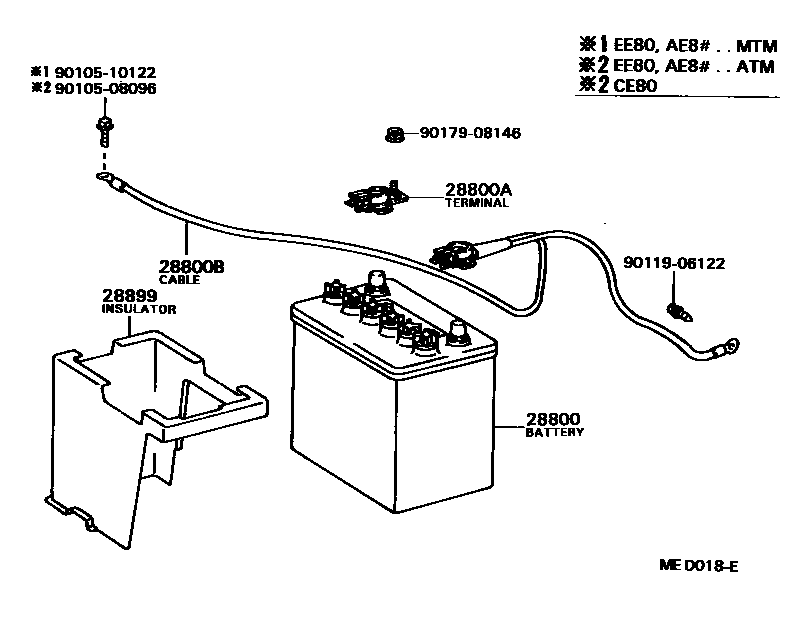

BATTERY & BATTERY CABLE

28800BATTERY

main28800-13010i2AL,2EL..AE80,EE80..GEN,SAA198305-198707

28B19L(NS40SL)

main28800-26040i4AGEL,4AL..AE82..GEN198305-198704

34B19L,34B19L(NS40ZAL)

main28800-31031i4ALC,2ELC..AE82,EE80..FRG;2AL,4AGEL,4AL,2EL..AE8#,EE80198305-198804

32C24L,32C24L(N40L)

main28800-54020i1CL..CE80198305-198704

80D26L,80D26L(NX110-5L)

main28800-54030i1CL..CE80198305-198704

95D31L,95D31L(NX120-7L)

main28800-64010i2AL,4AGEL,4AL#..AE8#..EUR198305-198704

55D23L,55D23L

main28800-64030i2EL#..EE80..EUR198410-198704

55D20L,50D20L

28800ATERMINAL, BATTERY POSITIVE

main90982-05018i2AL,4AGEL,4AL..AE8#..GEN,SAA198305-198411

28B19L(NS40SL),34B19L(NS40ZAL)

main90982-05019i2EL..EE80..GEN,SAA198410-198411

28B19L(NS40SL)

main90982-05022i1CL..CE80; 2AL,4AGEL,4AL#..AE8#198305-198411

32C24L(N40L),55D23L; 95D31L(NX120-7L)

main90982-05023i2EL..EE80198410-198411

32C24L(N40L),50D20L

main90982-05027i2EL..EE80..GEN,SAA198505-198610

28B19L(NS40SL)

main90982-05028i2AL,4AGEL,4AL..AE8#..GEN198411-198707

28B19L(NS40SL),34B19L(NS40ZAL)

main90982-05029i2EL#..EE80198411-198610

32C24L(N40L),50D20L

main90982-05030i2AL,4AGEL,4AL#..AE8#..EUR,GEN198411-198804

32C24L(N40L),55D23L

28800BCABLE, BATTERY TO GROUND

main82123-12050i2AL,4AGEL,4AL,2EL..AE8#,EE80..GEN,SAA198305-198707

28B19L(NS40SL),34B19L(NS40ZAL)

main82123-12060i2AL,4AGEL,4AL#,2EL#..AE8#,EE80..EUR,GEN,SA,SAA198305-198804

32C24L(N40L),50D20L,55D23L

main82123-12070i1CL..CE80198305-198505

80D26L(NX110-5L)

main82123-12100i1CL..CE80198505-198704

80D26L(NX110-5L)

28899INSULATOR, BATTERY

main28899-64010i1CL..CE80198504-198704

BATTERY=80D26L(NX110-5L)

main28899-64020i1CL..CE80198504-198704

BATTERY=95D31L(NX120-7L)

9010508096

main90105-08096

9010510122

main90105-10122

9011906122

main90119-06122

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
