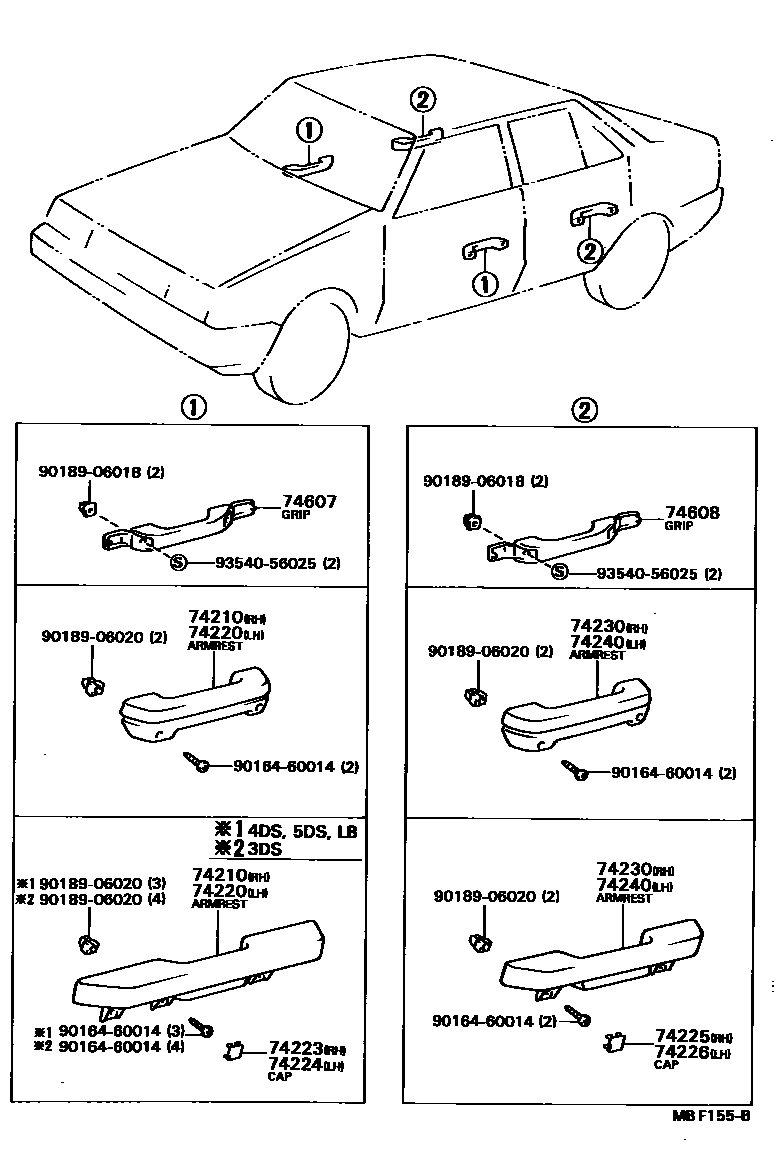

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
MAROON,RED/MAROON,TRIM3#
MALAYSIA SPEC,GRAY,GRAY,TRIM1#; W/FB-B SEAT,GRAY,GRAY,TRIM1#
MALAYSIA SPEC,BLUE,BLUE,TRIM8#; W/FB-B SEAT,BLUE,BLUE,TRIM8#
main74210-12080-06iAE82..XL;EE80..5DS..LHD..5F..XL;EE80..5DS..RHD..(DX,XL);CE80..(4DS,5D,5DS)..(DX,XL);EE80..5DS..LHD..(3FC,4F)..(DX,XL);AE82..(4DS,5D,5DS)..DX..(EUG,FRG);EE80..5DS..LHD..5F..DX..(EUG,FRG);EE80..(4DS,5D)..(DX,XL)..(EUR,GEN)198505-198704
W/FB-B SEAT,BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
MALAYSIA SPEC,GRAY,GRAY,TRIM1#; W/FB-B SEAT,GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MALAYSIA SPEC,BROWN,BROWN,TRIM4#; W/FB-B SEAT,BROWN,BROWN,TRIM4#
W/FB-B SEAT,GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
74223CAP, DOOR ARMREST, RH
MAROON,RED/MAROON,TRIM3#
main74237-12010-03×3iAE82,CE80,EE80..(4DS,5D,5DS)..DX..EUG; CE80,EE80..3DS..DX; EE80..4DS..RHD..5F..XL198410-198505
MALAYSIA SPEC,GRAY,GRAY,TRIM1#; W/FB-B SEAT,GRAY,GRAY,TRIM1#
MALAYSIA SPEC,BLUE,BLUE,TRIM8#; W/FB-B SEAT BLUE,BLUE,TRIM8#
main74237-12010-06×3iAE82,CE80,EE80..(4DS,5D,5DS)..DX..EUG; CE80,EE80..3DS..DX; EE80..4DS..RHD..5F..XL198410-198505
MALAYSIA SPEC,BROWN,BROWN,TRIM4#; W/FB-B SEAT,BROWN,BROWN,TRIM4#
74224CAP, DOOR ARMREST, LH
MAROON,RED/MAROON,TRIM3#
main74237-12010-03×3iAE82,CE80,EE80..(4DS,5D,5DS)..DX..EUG; CE80,EE80..3DS..DX; EE80..4DS..RHD..5F..XL198410-198505
MALAYSIA SPEC,GRAY,GRAY,TRIM1#; W/FB-B SEAT,GRAY,GRAY,TRIM1#
MALAYSIA SPEC,BLUE,BLUE,TRIM8#; W/FB-B SEAT BLUE,BLUE,TRIM8#
main74237-12010-06×4iAE82,CE80,EE80..(4DS,5D,5DS)..DX..EUG; CE80,EE80..3DS..DX; EE80..4DS..RHD..5F..XL198410-198505
MALAYSIA SPEC,BROWN,BROWN,TRIM4#; W/FB-B SEAT,BROWN,BROWN,TRIM4#
74225CAP, DOOR ARMREST, REAR RH
MAROON,RED/MAROON,TRIM3#
MALAYSIA SPEC,GRAY,GRAY,TRIM1#; W/FB-B SEAT,GRAY,GRAY,TRIM1#
main74237-12010-04×2iAE82..XL;AE82..(4DS,5D)..DX..(EUG,FRG);CE80,EE80..(4DS,5D)..(DX,XL)..(EUR,GEN)198505-198704
W/FB-B SEAT,BLUE,BLUE,TRIM8#
MALAYSIA SPEC,BROWN,BROWN,TRIM4#; W/FB-B SEAT,BROWN,BROWN,TRIM4#
74226CAP, DOOR ARMREST, REAR LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
MALAYSIA SPEC,BLUE,BLUE,TRIM8#; W/FB-B SEAT BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MALAYSIA SPEC,BROWN,BROWN,TRIM4#; W/FB-B SEAT,BROWN,BROWN,TRIM4#
74607GRIP SUB-ASSY, FRONT DOOR ASSIST
BEIGE,BEIGE,TRIM3#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
74608GRIP SUB-ASSY, REAR DOOR ASSIST
BEIGE,BEIGE,TRIM3#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
9016460014
main90164-60014
9018906018
main90189-06018
9018906020
main90189-06020
9354056025
main93540-56025
14 parts on this diagram · 2 diagrams in section
