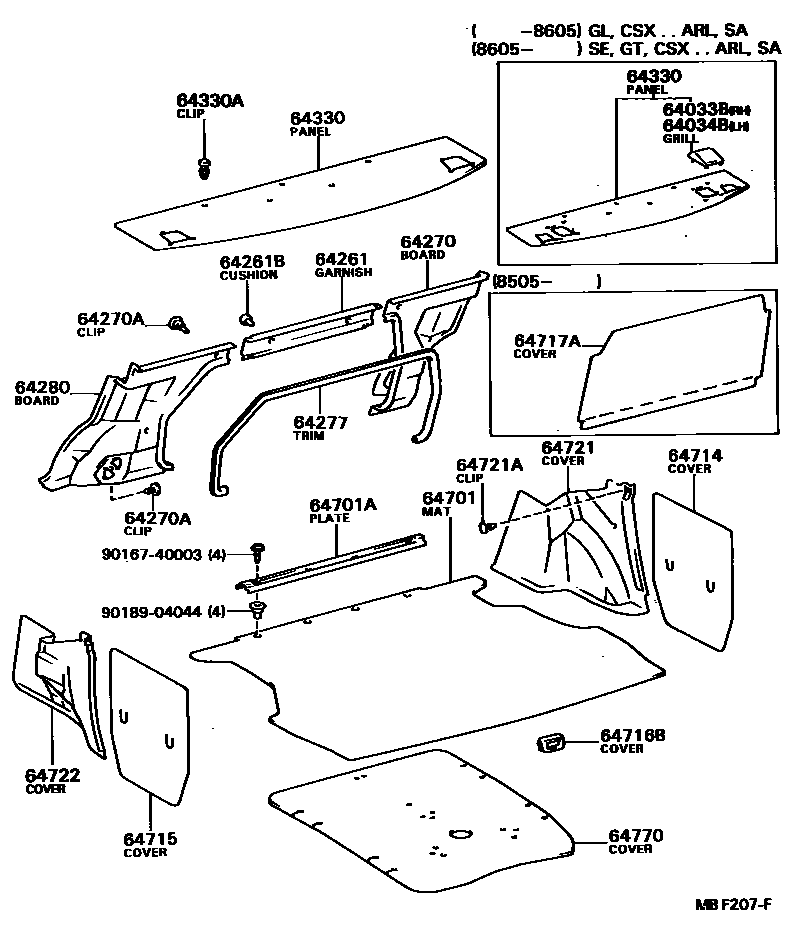

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12020-02iAE82..4DS..GL..SA198402-198408

MAROON,RED/MAROON,TRIM3#

main64033-12020-03iAE82..4DS..(CSX,GL)..(ARL,SA)198402-198605

GRAY,GRAY,TRIM1#

main64033-12020-04iAE82..SE198605-198807

BLUE,BLUE,TRIM8#

main64033-12020-06iAE82..4DS..(CSX,GL)..(ARL,SA)198408-198605

BROWN,BROWN,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-12020-02iAE82..4DS..GL..SA198402-198408

MAROON,RED/MAROON,TRIM3#

main64033-12020-03iAE82..4DS..(GT,SE);AE82..4DS..5F..CSX198605-198807

GRAY,GRAY,TRIM1#

main64033-12020-04iAE82..4DS..GL..SA198402-198605

BLUE,BLUE,TRIM8#

main64033-12020-06iAE82..4DS..(CSX,GL)..(ARL,SA)198408-198605

BROWN,BROWN,TRIM4#

64261GARNISH, ROOM PARTITION

main64261-12030-02iAE8#,CE80..4DS..GL198305-198408

MAROON,RED/MAROON,TRIM3#

main64261-12030-03iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198305-198807

GRAY,GRAY,TRIM1#

main64261-12030-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,SE)198305-198807

BLUE,BLUE,TRIM8#

main64261-12030-06iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198408-198807

BROWN,BROWN,TRIM4#

64261BCUSHION(FOR ROOM PARTITION GARNISH)

main90541-09010×2iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198305-198807

64270BOARD ASSY, ROOM PARTITION, RH

main64271-12100-02iAE8#,CE80..4DS..GL..(EUR,GEN)198305-198408

W/RR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64271-12100-03iAE82,EE80..4DS..(CS,CSX,GL,GT,SE)198605-198807

W/RR SEAT BELT,GRAY,GRAY,TRIM1#

main64271-12100-04iAE82,EE80..4DS..(GL,SE)198605-198807

W/RR SEAT BELT,BLUE,BLUE,TRIM8#

main64271-12100-06iAE8#,CE80,EE80..4DS..(CS,CSX,GL)..(ARL,EUR,GEN)198408-198605

W/RR SEAT BELT,BROWN,BROWN,TRIM4#

main64271-12120-02iAE80,CE80..4DS..GL;AE82..4DS..GL..EUG;AE82..4DS..GL..(GEN,SA)198305-198408

W/O RR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64271-12120-03iEE80..4DS..GL;AE82..4DS..GL..GEN;AE82..4DS..GL..(EUG,FRG)198605-198704

W/O RR SEAT BELT,GRAY,GRAY,TRIM1#

main64271-12120-04iEE80..4DS..GL;AE82..4DS..GL..GEN;AE82..4DS..GL..(EUG,FRG)198605-198704

W/O RR SEAT BELT,BLUE,BLUE,TRIM8#

main64271-12120-06iEE80..4DS..GL;AE82..4DS..GL..GEN;AE82..4DS..GL..(EUG,FRG)198605-198704

W/O RR SEAT BELT,BROWN,BROWN,TRIM4#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-06049-02×2iAE8#,CE80..4DS..GL198305-198408

L=18.8,MAROON,RED/MAROON,TRIM3#

main90467-06049-03×2iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT)198305-198505

L=18.8,GRAY,GRAY,TRIM1#

main90467-06049-04×2iAE8#,CE80,EE80..4DS..(CS,CSX,GL)198305-198505

L=18.8,BLUE,BLUE,TRIM8#

main90467-06049-06×2iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT)198408-198505

L=18.8,BROWN,BROWN,TRIM4#

main90467-07041-02×4iAE8#,CE80..4DS..GL198305-198408

L=10.0,MAROON,RED/MAROON,TRIM3#

main90467-07041-03×4iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198305-198807

L=10.0,GRAY,GRAY,TRIM1#

main90467-07041-04×4iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,SE)198305-198807

L=10.0,BLUE,BLUE,TRIM8#

main90467-07041-06×4iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198408-198807

L=10.0,BROWN,SEPIA BROWN,TRIM4#

64277TRIM, ROOM PARTITION LOWER

main64277-12030-02iAE8#,CE80..4DS..GL198305-198408

MAROON,RED/MAROON,TRIM3#

main64277-12030-03iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198305-198807

GRAY,GRAY,TRIM1#

main64277-12030-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(GL,SE)198305-198807

BLUE,BLUE,TRIM8#

main64277-12030-06iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT,SE)198408-198807

BROWN,BROWN,TRIM4#

64280BOARD ASSY, ROOM PARTITION, LH

main64272-12040-02iAE8#,CE80..4DS..GL..(EUR,GEN)198305-198408

W/RR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64272-12040-03iAE82,EE80..4DS..(CS,CSX,GL,GT,SE)198605-198807

W/RR SEAT BELT,GRAY,GRAY,TRIM1#

main64272-12040-04iAE8#,CE80,EE80..4DS..GL..(EUR,GEN)198305-198605

W/RR SEAT BELT,BLUE,BLUE,TRIM8#

main64272-12040-06iAE82,EE80..4DS..(CS,CSX,GL,GT,SE)198605-198807

W/RR SEAT BELT,BROWN,BROWN,TRIM4#

main64272-12060-02iAE80,CE80..4DS..GL;AE82..4DS..GL..EUG;AE82..4DS..GL..(GEN,SA)198305-198408

W/O RR SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64272-12060-03iAE80,CE80,EE80..4DS..GL;AE82..4DS..GL..(EUG,FRG);AE82..4DS..(GL,GT)..(GEN,SA)198305-198605

W/O RR SEAT BELT,GRAY,GRAY,TRIM1#

main64272-12060-04iAE80,CE80,EE80..4DS..GL;AE82..4DS..GL..(GEN,SA);AE82..4DS..GL..(EUG,FRG)198305-198605

W/O RR SEAT BELT,BLUE,BLUE,TRIM8#

main64272-12060-06iEE80..4DS..GL;AE82..4DS..GL..GEN;AE82..4DS..GL..(EUG,FRG)198605-198704

W/O RR SEAT BELT,BROWN,BROWN,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12540-02iAE82..DX..SA;AE82..4DS..DX..EUG;AE80,CE80..4DS..(DX,STD,XL)198305-198408

W/O RR 3-POINT SEATBELT,MAROON,RED/MAROON,TRIM3#

main64330-12540-03iAE82..4DS..DX..(EUG,FRG);AE82..4DS..(DX,STD,XL)..(GEN,SA);AE80,CE80,EE80..4DS..(DX,STD,XL)198305-198807

W/O RR 3-POINT SEAT BELT,GRAY,GRAY,TRIM1#

main64330-12540-04iAE82..4DS..DX..(EUG,FRG);AE82..4DS..(DX,STD,XL)..(GEN,SA);AE80,CE80,EE80..4DS..(DX,STD,XL)198305-198807

W/O RR 3-POINT SEAT BELT,BLUE,BLUE,TRIM8#

main64330-12540-06iAE82..4DS..DX..(EUG,FRG);AE82..4DS..(DX,STD,XL)..(GEN,SA);AE80,CE80,EE80..4DS..(DX,STD,XL)198408-198807

W/O RR 3-POINT SEAT BELT,BROWN,BROWN,TRIM4#

main64330-12560-02iAE8#,CE80..4DS..(DX,STD)..EUR; AE80,CE80..4DS..RHD..(DX,STD)..GEN198305-198408

W/RR 3-POINT SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64330-12560-03iAE8#..4DS..S198411-198807

GRAY,GRAY,TRIM1#

main64330-12560-04iCE80..GEN;AE82..RHD..XL; EE80..4DS..(STD,XL)..GEN198410-198505

W/RR 3-POINT SEAT BELT,BLUE,BLUE,TRIM8#

main64330-12560-06iAE8#,CE80..4DS..RHD..(DX,STD,XL)..GEN; CE80..XL;AE80..LHD..4F..GEN198408-198410

W/RR 3-POINT SEAT BELT,BROWN,BROWN,TRIM4#

main64330-12570-02iAE82..4DS..GL..SA198402-198408

W/O SPEAKER GRILLE,MAROON,RED/MAROON,TRIM3#

main64330-12570-03iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC,GRAY,GRAY,TRIM1#

main64330-12570-04iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC,BLUE,BLUE,TRIM8#

main64330-12570-06iAE82..4DS..(GL,GT)..SA198408-198605

W/O SPEAKER GRILLE,BROWN,BROWN,TRIM4#

main64330-12580-02iAE82..4DS..GL..SA198402-198408

W/SPEAKER GRILLE,MAROON,RED/MAROON,TRIM3#

main64330-12580-03iAE82..4DS..GL..SA198402-198605

W/SPEAKER GRILLE,GRAY,GRAY,TRIM1#

main64330-12580-04iAE82..4DS..GL..SA198402-198605

W/SPEAKER GRILLE,BLUE,BLUE,TRIM8#

main64330-12580-06iAE82..4DS..GL..SA198408-198605

W/SPEAKER GRILLE,BROWN,BROWN,TRIM4#

main64330-12590-02iAE8#,CE80..4DS..GL..EUR; AE8#..4DS..RHD..GL..GEN198305-198408

W/RR 3-POINT SEAT BELT,MAROON,RED/MAROON,TRIM3#

main64330-12590-03iAE82..4DS..RHD..GL..GEN;AE82..4DS..LHD..3FC..GL..GEN; EE80..4DS..GL..GEN198410-198505

W/RR 3-POINT SEAT BELT,GRAY,GRAY,TRIM1#

main64330-12590-04iAE82..4DS..LHD..5F..GEN198402-198410

W/RR 3-POINT SEAT BELT,BLUE,BLUE,TRIM8#

main64330-12590-06iAE8#..4DS..RHD..GL..GEN; AE82..4DS..LHD..5F..GEN198408-198410

W/RR 3-POINT SEAT BELT,BROWN,BROWN,TRIM4#

main64330-12590-16iAE82,EE80..4DS..(GL,GT,SE)198605-198807

W/RR 3-POINT SEAT BELT,BROWN,BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-02×5iAE8#,CE80..4DS198305-198408

MAROON,RED/MAROON,TRIM3#

main90467-08046-03×5iAE8#,CE80,EE80..4DS198305-198807

GRAY,GRAY,TRIM1#

main90467-08046-04×5iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..4DS..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

main90467-08046-06×5iAE8#,CE80,EE80..4DS198408-198807

BROWN,BROWN,TRIM4#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-12090iAE8#,EE80..4DS..(S,STD)..(ARL,EUR,GEN); AE8#..4DS..(DX,STD)..SA198408-198502

main64711-12100iAE82,EE80..4DS..DX..SA198505-198605

main64711-12101iAE82,CE80,EE80..4DS..(DX,XL)198605-198807

main64711-12110iAE8#..4DS..(3FC,4F,5F)..(CS,CSX)198411-198807

main64711-12130iAE82,CE80,EE80..4DS..DX..EUR198506-198704

CARPET

main64711-12150iAE80,EE80..STD..SAA198408-198505

64701ASET PLATE, LUGGAGE COMPARTMENT

main58573-16020iAE8#,CE80,EE80..4DS..(CS,CSX,GL,GT)198305-198807

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-12090iAE8#,CE80,EE80..4DS..(CSX,GL,GT,SE); AE8#,CE80,EE80..4DS..DX..(EUR,SA)198305-198807

64715COVER, LUGGAGE COMPARTMENT, LH

main64714-12090iAE8#,CE80,EE80..4DS..(CSX,GL,GT,SE); AE8#,CE80,EE80..4DS..DX..(EUR,SA)198305-198807

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12040iAE8#,CE80,EE80..4DS198305-198807

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12010iAE82,CE80,EE80..4DS..(DX,XL)..(EUR,GEN,SAA)198505-198707

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12010iAE8#,CE80,EE80..4DS..(CSX,GL,GT,SE)198305-198807

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-01×2iAE8#,CE80,EE80..4DS..(CSX,GL,GT,SE)198305-198807

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12020iAE8#,CE80,EE80..4DS..(CSX,GL,GT,SE)198305-198807

64770COVER ASSY, SPARE WHEEL

main64770-12050iAE8#,CE80,EE80..4DS198308-198807

main64770-16070iAE8#,CE80..4DS198305-198308

9016740003

main90167-40003

9018904044

main90189-04044

22 parts on this diagram · 1 diagram in section
