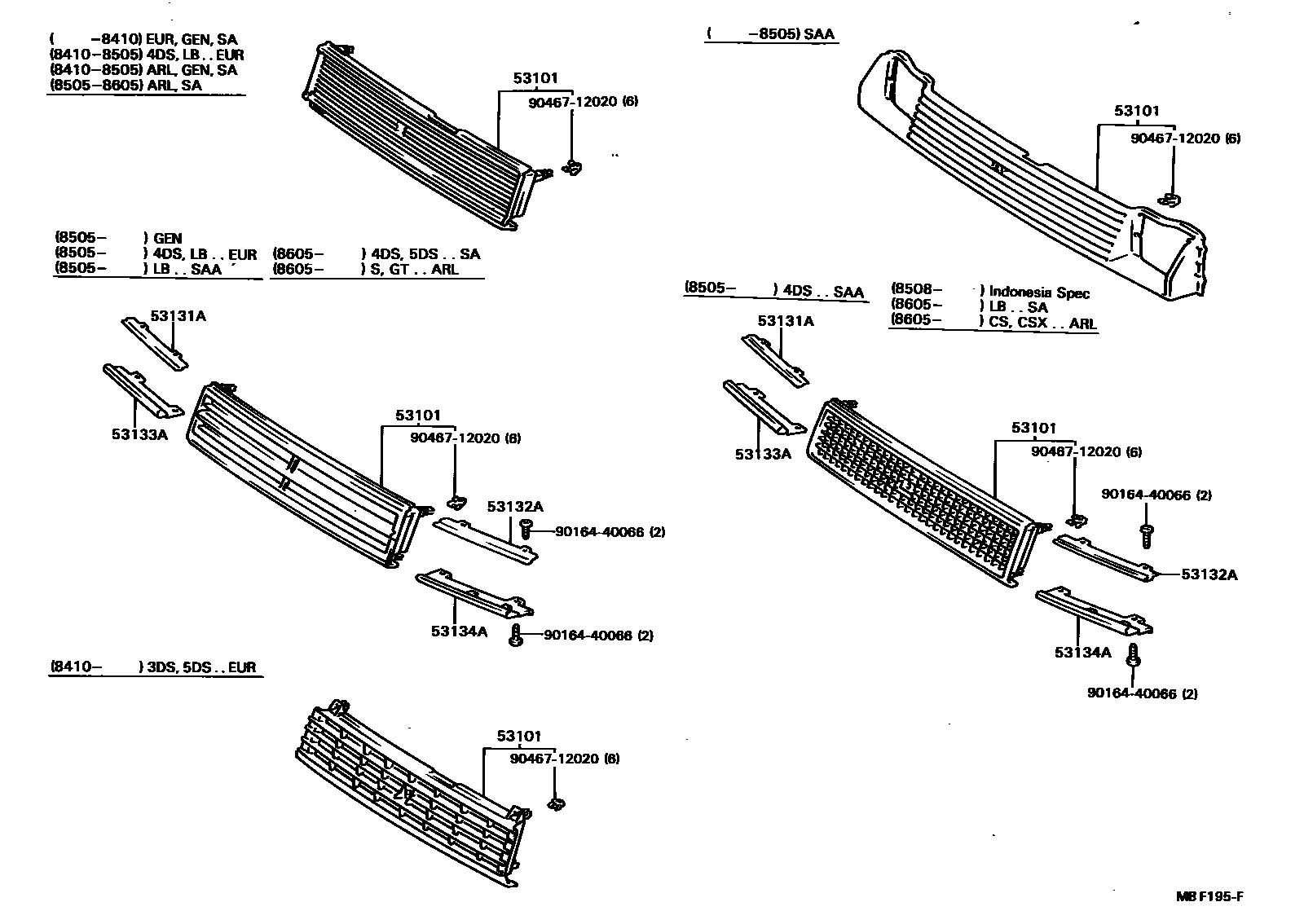

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-12500iAE8#,CE80,EE80..(CS,CSX,DX,GL,S,STD,XL)..(ARL,GEN,SA); AE82,CE80,EE80..(4DS,5D)..EUR198410-198505

main53101-12510iAE80,EE80..SAA198308-198505

main53101-12530iAE82..GT..(GEN,SA)198410-198505

main53101-12560iAE82..5D..SA198605-198807

main53101-12570-08iAE82..GT..EUG198410-198704

WHITE,WHITE

main53101-12580iAE8#..(5D,5DS)..(CS,CSX);AE82..4DS..(3FC,5F)..ARL198605-198807

main53101-12590iAE8#..(GT,S)..ARL; AE82,EE80..SED..SA198605-198807

main53101-12600-03iAE82,CE80,EE80..(3DS,5DS)..EUR198410-198608

SILVER,SILVER

main53101-12600-23iAE82,CE80,EE80..(3DS,5DS)..EUR198608-198704

SILVER,SILVER METALLIC

53131ADOOR, HEADLAMP, RH

main53131-12340iAE82,CE80,EE80..GEN,SAA198505-198605

main53131-12350iAE8#..ARL198605-198807

53132ADOOR, HEADLAMP, LH

main53132-12250iAE82,CE80,EE80..GEN,SAA198505-198605

main53132-12260iAE8#..ARL198605-198807

53133ADOOR, HEADLAMP, LOWER RH

main53133-12030iAE82,CE80,EE80..(4DS,5D)..EUR198505-198609

main53133-12031iAE82,CE80,EE80..(4DS,5D)..EUR198609-198704

main53133-12040iAE8#..ARL198605-198807

53134ADOOR, HEADLAMP, LOWER LH

main53134-12040iAE82,CE80,EE80..(4DS,5D)..EUR198505-198609

main53134-12041iAE82,CE80,EE80..(4DS,5D)..EUR198609-198704

main53134-12050iAE8#..ARL198605-198807

9016440066

main90164-40066

9046712020

main90467-12020

7 parts on this diagram · 1 diagram in section
