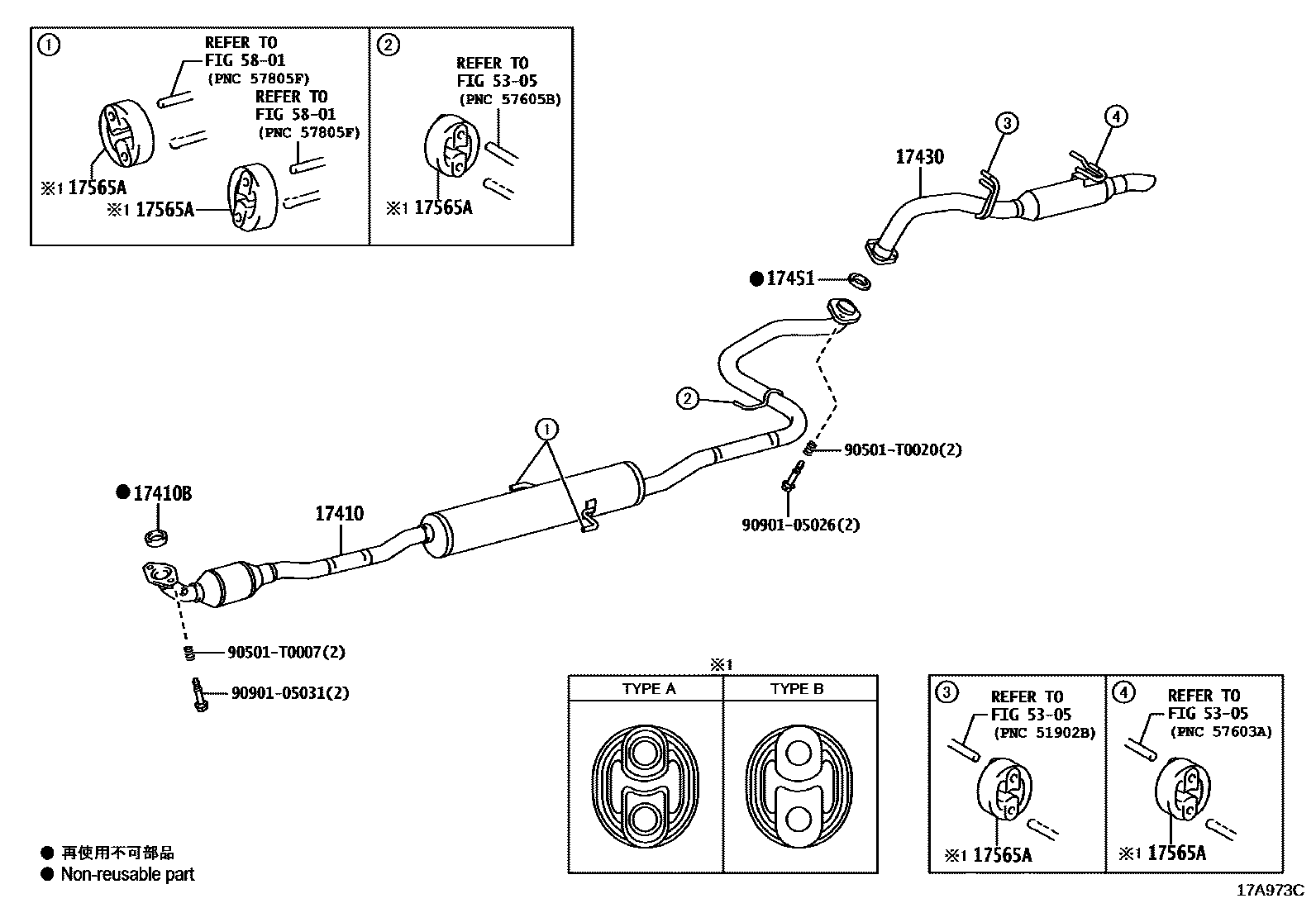

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Y640i2NRFE..NSP151..4D..AGT201911-202201

main17410-0Y650supersedes 17410-0Y880i2NRFBE..NSP151..4D201911-202104

main17410-0Y660i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..5D..CVT..GEN..(D,G)201911

main17410-0Y670supersedes 17410-0YB00i1NRFBE,2NRFBE..NSP15#..5D201911-202104

main17410-0Y880i2NRFBE..NSP151..4D..CVT..(G,R,V)202201-202501

main17410-0YB00i2NRFBE..NSP151..5D..CVT202104-202201

main17410-0YB20i2NRFE..NSP151..4D..AGT;2NRFE..NSP151..4D..GEN..(R,V)202311-202501

main17410-0YB30i2NRFE..NSP151..5D..6F..(G,R,V)202311-202501

17410BGASKET, EXHAUST PIPE

main17451-0M020i2NRFBE..NSP151..CVT..D202201-202206

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y240i2NRFBE..NSP151..4D202104-202108

main17430-0Y241i2NRFBE..NSP151..4D..CVT..(G,R,V)202201-202501

main17430-0Y300i1NRFBE..NSP150;2NRFBE..NSP151..5D..6F202104

main17430-0Y340i2NRFE..NSP151..4D201911-202108

main17430-0Y341supersedes 17430-0Y241i2NRFBE..NSP151..4D..CVT..(D,G); 2NRFE..NSP151..4D..AGT202109-202201

PARAGUAY SPEC

main17430-0Y350supersedes 17430-0Y300i2NRFE..NSP151..5D..AGT;2NRFE..NSP151..5D..6F..GEN..G201911-202201

17451GASKET, EXHAUST PIPE

main17451-0M032i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G202201

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M040×5i2NRFBE..NSP151..4D..CVT..D; 2NRFBE..NSP151..5D..D202201-202206

TYPE B:REFER ILLUST.

main17565-0Y020×5i2NRFE..NSP151..4D..AGT;2NRFE..NSP151..4D..GEN..(R,V);2NRFBE..NSP151..4D..CVT..(G,R,V); 2NRFE..NSP151..5D..6F..(G,R,V);2NRFBE..NSP151..5D..CVT..(G,R,V)202201-202501

TYPE A:REFER ILLUST.

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90501T0007

main90501-T0007

90501T0020

main90501-T0020

9090105026

main90901-05026

9090105031

main90901-05031

11 parts on this diagram · 2 diagrams in section
