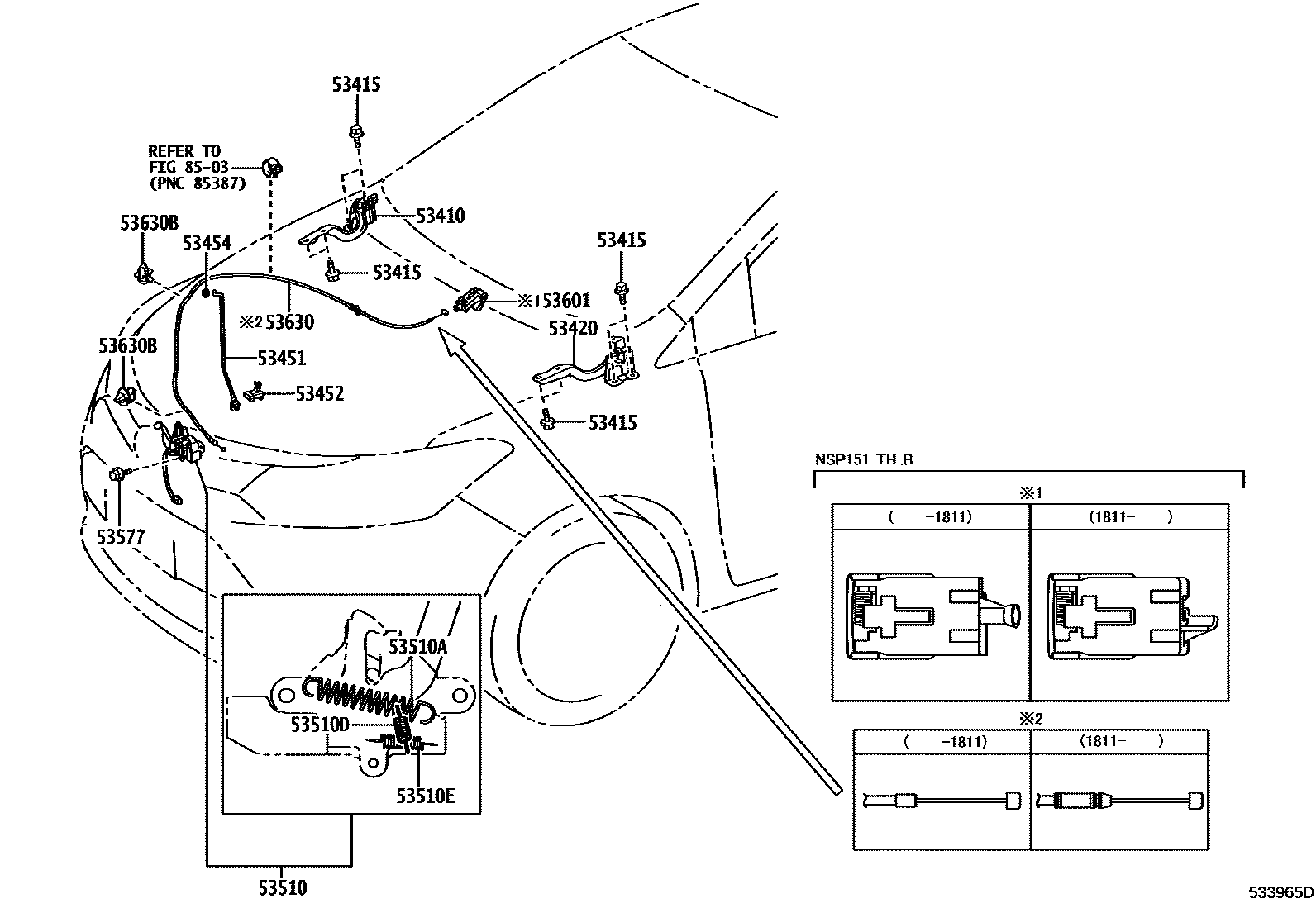

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D400iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202207

main53410-0D490iNSP150,151..D201307-201910

main53410-0D520iNCP150,NSP151..TAIW201404-201802

main53410-0D520iNSP151..F201803-202101

MARK 0

main53410-0D540iNSP151..F201803-202101

MARK -

main53410-0D630iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main53410-0D760iNSP151..G201804-201908

main53410-0D790iNSP151..H201807-201910

MARK 0

main53410-0D800iNSP151..H201807-201910

MARK +

main53410-0D810iNSP151..H201807-201910

MARK -

main53410-0D820iNSP150,151..I202003-202406

53415BOLT, HOOD HINGE

main90105-T0120iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..IND,MA,PKN201304-202406

main91551-80820iNSP151..TAIW201404-202101

53420HINGE ASSY, HOOD, LH

main53420-0D400iNSP150,151..GCC..B201304-202207

main53420-0D490iNSP150,151..D201307-201910

main53420-0D520iNSP151..F201803-202101

MARK 0

main53420-0D520iNCP150..TAIW201404-201802

main53420-0D530iNSP151..F201803-202101

MARK +

main53420-0D630iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main53420-0D760iNSP151..G201804-201908

main53420-0D790iNSP151..H201807-201910

MARK 0

main53420-0D800iNSP151..H201807-201910

MARK +

main53420-0D810iNSP151..H201807-201910

MARK -

main53420-0D820iNSP150,151..I202003-202406

53451ROD, HOOD SUPPORT

main53440-0D140iNCP15#..MA,VN201304-201707

main53440-0D141iNSP150,151..GCC..B201708-201812

main53440-0D160iNCP150..TAIW201404-201802

main53440-0D170iNCP15#..PH201307-201806

main53440-0D180iNCP15#..C201312-201712

main53440-0D220iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP151..RHD..(GEN,MA);NSP150..5F..GCC..R..A;NSP151..(GCC,TH,VN)..(A,E);NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,TH,VN)..(D,201708-202207

main53440-0D230iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main53440-0D240iNSP150,151..D201807-201910

main53440-0D250iNSP151..F201803-202101

main53440-0D260iNSP151..G201804-201908

main53440-0D270iNSP151..H201807-201910

main53440-0D280iNSP150,151..I202003-202406

53452HOLDER, HOOD STAY

main53452-0D090iNCP15#..PH201304-202406

main53452-0D110iNSP151..F201404-202101

main53452-0D120iNSP151..TH..G..C201312-202207

main53452-0D140iNSP151..G201804-201908

53454CLIP, HOOD SUPPORT ROD

main90480-15025iNSP151..G201804-201908

(J)

main90480-15025iNSP151..H201807-201910

main90480-T0009iNSP150,151..VN201304-202406

main90480-T0009iNSP151..G201804-201908

(L)

53510LOCK ASSY, HOOD

main53510-0D360iNCP15#..GCC201308-201412

main53510-0D361iNCP15#..LHD..GEN201501-201807

main53510-0D370iNCP150..VN..G201403-201412

main53510-0D371iNSP151..VN..G201501-201807

main53510-0D380iNCP151..RHD..4FC;NCP150..(IDN,TH)..D..B201304-201412

main53510-0D381iNCP150..IDN..D..B201501-201709

main53510-0D390iNCP151..5F..G;NCP150..(IDN,TH)..(G,R,V)..B201304-201412

main53510-0D391iNCP150..IDN..(G,R)..B201501-201709

main53510-0D440iNCP150..TAIW..D201404-201412

main53510-0D441iNSP151..TAIW..D201501-201802

main53510-0D450iNCP150..TAIW..(R,V)201404-201412

main53510-0D451iNCP150..TAIW..(R,V)201501-201802

main53510-0D490iNCP15#..PH..(G,R)201307-201806

main53510-0D500iNCP151..PH..D201307-201806

main53510-0D520iNCP150..MA201310-201812

main53510-0D540iNSP150,151..GCC..C201402-201712

main53510-0D550iNSP151..D..C201312-201712

main53510-0D560iNCP150..RHD..(G,R)..C201312-201712

main53510-0D580iNSP151..AGT,BZ201807-201910

main53510-0D590iNSP151..BZ..G201807-201910

PARAGUAY SPEC

main53510-0D590iNSP151..GEN..H201807-201910

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0D600iNSP150..D..I202003-202406

main53510-0D620iNSP150,151..GCC..B201312-201712

main53510-0D710iNSP151..G201804-201908

main53510-0D730iNSP151..F201803-202101

main53510-0D740iNSP151..IDN..(G,R)201801-202207

main53510-0D750iNSP151..CVT..D..C201801-202207

main53510-0D760iNSP150..5F..D..C201801-202207

main53510-0D770iNSP150..5F..G..A201708-202207

main53510-0D780iNSP150,151..RHD..CVT..GEN201710-202207

main53510-0D790iNSP151..E201808-201912

main53510-0D800iNSP151..LHD..GEN..A;NSP150..LHD..(GEN,VN)..(A,E)201710-202207

main53510-0D810iNSP150..D..D201807-201910

main53510-0D820iNSP150,151..(G,R)..D201807-201910

main53510-0D830iNSP151..MA201901-202011

main53510-0D850iNSP150..5F..GCC..D..A201801-202207

main53510-0D860iNSP150,151..G..I202003-202406

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201304-202406

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iNCP15#..PH201307-201910

WD=1.2,CW=8.5

main90506-T0004iNCP150..IDN..B201304-202406

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP15#..PH201307-201910

WD=0.9,CW=21

main90506-T0005iNCP15#..MA,VN201304-202406

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90119-06939iNCP150..TAIW201404-202101

main90119-T0273iNCP15#..MA,VN201304-202406

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-A1iNCP150..VN201304-201811

IVORY,TRIM0#

main53601-02030-A3iNSP151..GEN..D;NSP150..GCC,GEN;NSP151..(GCC,GEN,IDN,TH,VN)..(G,R)201610-201704

SHELL,TRIM0#

main53601-02030-C0iNCP15#..MA,VN201304-201802

BLACK,TRIM2#

main53601-02030-C1iNSP151..TH..B201802-201812

BLACK,TRIM2#

main53601-0D040-A0iNSP151..TH..(G,R)..B201708-202406

IVORY,TRIM0#

main53601-0D040-C1iNSP150..CVT..G..A;NSP151..AGT,BZ,MA;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,GEN,PH,TH)..(A,D,H);NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)201708-202207

BLACK,TRIM2#

main53601-0D070-A0iNSP150..5F..D..C201801-202207

IVORY,TRIM0#

main53601-0D070-C1iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

BLACK,TRIM2#

main53601-0D080-A0iNSP151..R..F201803-202101

IVORY,TRIM0#

main53601-0D080-C0iNSP151..F201803-202101

BLACK,TRIM2#

main53601-0D090-A0iNSP151..G201804-201908

IVORY,TRIM0#

main53601-52010-01iNCP150..TAIW..R201503-201802

IVORY,TRIM0#

main53601-52010-C0iNSP151..TAIW201503-201612

BLACK,TRIM2#

main53601-52010-C1iNSP151..TAIW201612-201802

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D180iNSP150,151..VN201304-201811

main53630-0D181iNSP151..TH..B201811

main53630-0D200iNSP150,151..PH201307-201806

main53630-0D210iNCP150..MA201310-201812

main53630-0D220iNSP151..TAIW201404-201802

main53630-0D230iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main53630-0D320iNSP151..H201807-201910

main53630-0D330iNSP151..G201804-201908

main53630-0D340iNSP152..HTWC;NSP150,151..I201708-202406

main53630-0D350iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main53630-0D360iNSP151..F201803-202101

main53630-0D370iNSP150,151..D201807-201910

main53630-0D380iNSP151..MA201901-202011

main53630-0D390iNSP150,151..E201808-201912

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP152..HTWC;NSP150,151..G,I201903-202302

(J)

main90469-06005iNSP151..AGT,BZ,MA;NSP150,151..(GEN,PH,TAIW,VN)..(D,E,F,H)201304-202101

main90469-T0003iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D201903-202406

(L)

8503WINDSHIELD WASHER

→ Go to FIG 85-03

15 parts on this diagram · 2 diagrams in section
