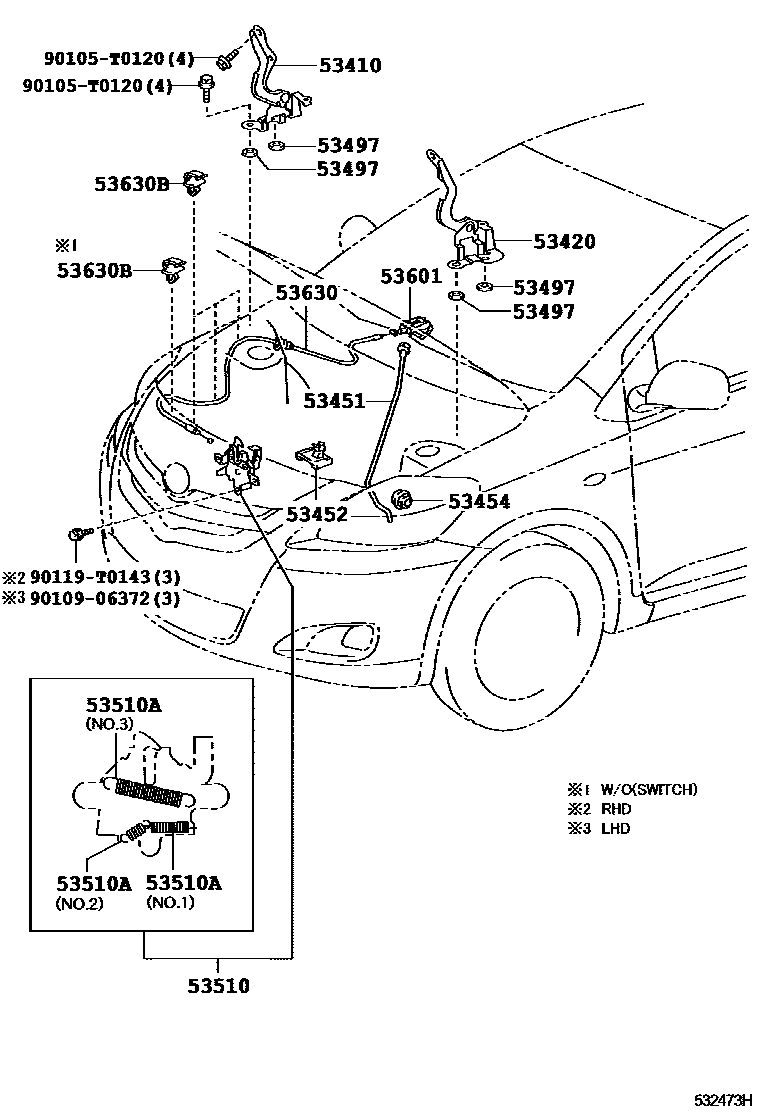

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
T=1.5
T=0.5
53510LOCK ASSY, HOOD
SINGAPORE & BRUNEI SPEC; SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT
SINGAPORE & BRUNEI SPEC; SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21,NO.1
WD=1.2,CW=8.5,NO.2
WD=1.6,CW=12,NO.3
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-02030-B1iNCP93..(15G,E,G)..(IDN,MA,VN); NCP93..PH;NCP93..15E..IDN;NCP9#..(13E,13J,15J,15S,J,LIMO,S)..(MA,PH,TH,VN)200702-201004
DK.GRAY,TRIM1#; DK.GRAY,TRIM40
main53601-02030-E0iNCP93..MTM..15G..IDN;NCP93..MTM..(15E,E)..(TH,VN);NCP93..ATM..(15E,15G,E,G)..(IDN,MA,TH,VN)200702-201004
GREGE,TRIM40
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
main90469-06005×3iNCP93..15E..TH; NCP93..15G..TH; NCP93..RHD..(15E,15G); NCP93..RHD..(15J,LIMO)201003-201211
SINGAPORE & BRUNEI SPEC; SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT
main90469-T0003×3iNCP93..15E..TH; NCP93..15G..TH; NCP93..RHD..(15E,15G); NCP93..RHD..(15J,LIMO)201211-201304
SINGAPORE & BRUNEI SPEC; SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT
90105T0120
main90105-T0120
9010906372
main90109-06372
90119T0143
main90119-T0143
14 parts on this diagram · 1 diagram in section
