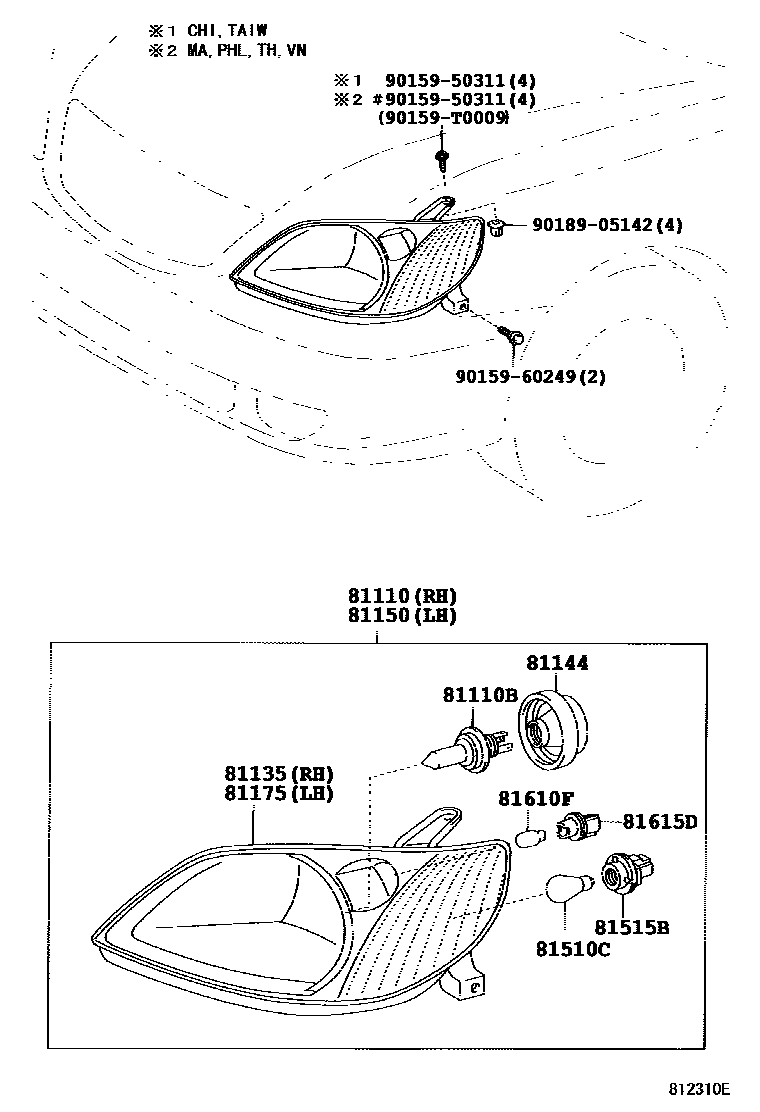

HEADLAMP

0001 1 0005 1

81110HEADLAMP ASSY, RH

main81110-0D040iAXP4#200210-200307

main81110-0D041iAXP4#200307-200406

main81110-0D042iAXP4#200407-200511

main81110-0D050iNCP42..VN200303-200404

main81110-0D060iNCP42..RHD200212-200512

main81110-0D100iNCP4#..PHL200305-200603

main81110-0D110iNCP42..MTM..15E200403-200510

SILVER PAINTED

main81110-0D140iNCP42..VN200603-200709

SILVER PAINTED

main81110-0D150iSCP4#200608-200611

main81110-0D151iSCP4#200611

main81110-0D160iNCP42..TAIW200510-200911

main81110-0D170iNCP42..(15E,15G)..TAIW200510-200710

DISCHARGE HEADLAMP

main81110-0D180iNCP42..RHD200510-200708

main81110-0D190iNCP4#..PHL,VN200510-200709

main81110-0D200iNCP42..ATM..15S200510-200702

DISCHARGE HEADLAMP

main81110-0D430iNCP42200911

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81055×2iNCP42..MTM..15E200510-200702

12V 60/55W,SILVER PAINTED

main90981-13058×2iAXP4#200210-200511

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0D040iAXP4#200210-200307

main81130-0D041iAXP4#200307-200511

main81130-0D060iNCP42..RHD200212-200512

main81130-0D100iNCP4#..PHL200305-200603

main81130-0D110iNCP42..MTM..15E200510-200702

SILVER PAINTED

main81130-0D140iNCP42..VN200603-200709

SILVER PAINTED

main81130-0D150iSCP4#200608

main81130-0D180iNCP42..RHD200510-200708

main81130-0D190iNCP4#..PHL,VN200510-200709

main81130-8C008iNCP42..TAIW200303-200510

main81130-8C015iNCP42..TAIW200510-200911

81144COVER, HEADLAMP, NO.1

main81135-8C004×2iNCP42..15E..TAIW;NCP42..ATM..(15G,15S)..(TAIW,TH)200510-200710

W(DISCHARGE HEADLAMP)

main90069-81036×2iAXP4#200210-200511

main90069-81046×2iNCP4#..MA,PHL,TH200212-200603

main90075-8C003×2iNCP42..VN200303-200404

81150HEADLAMP ASSY, LH

main81150-0D040iAXP4#200210-200307

main81150-0D041iAXP4#200307-200406

main81150-0D042iAXP4#200407-200511

main81150-0D050iNCP42..VN200303-200404

main81150-0D060iNCP42..RHD200212-200512

main81150-0D100iNCP42..VN200404-200603

main81150-0D110iNCP42..MTM..15E200510-200702

SILVER PAINTED

main81150-0D140iNCP42..VN200409-200603

SILVER PAINTED

main81150-0D150iAXP4#200511-200608

main81150-0D151iSCP4#200611

main81150-0D160iNCP42..TAIW200510-200911

main81150-0D170iNCP42..(15E,15G)..TAIW200510-200710

DISCHARGE HEADLAMP

main81150-0D180iNCP42..RHD200510-200708

main81150-0D190iNCP4#..PHL,VN200510-200709

main81150-0D200iNCP42..ATM..15S200510-200702

DISCHARGE HEADLAMP

main81150-0D430iNCP42200911

81175UNIT ASSY, HEADLAMP, LH

main81170-0D040iAXP4#200210-200307

main81170-0D041iAXP4#200307-200511

main81170-0D060iNCP42..RHD200212-200512

main81170-0D100iNCP4#..PHL200305-200603

main81170-0D110iNCP42..MTM..15E200403-200510

SILVER PAINTED

main81170-0D140iNCP42..VN200603-200709

SILVER PAINTED

main81170-0D150iAXP4#200511-200608

main81170-0D180iNCP42..RHD200510-200708

main81170-0D190iNCP4#..PHL,VN200510-200709

main81170-8C008iNCP42..TAIW200303-200510

main81170-8C015iNCP42..TAIW200510-200911

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iNCP4#..MA,PHL,TH,VN200510-200709

12V 21W,AMBER

main90981-15021×2iAXP4#200511-200608

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81035×2iAXP4#200210-200511

main90069-81048×2iNCP42..VN200404-200603

main90069-81068×2iSCP4#200608

main90075-60028×2iNCP42..ATM..15S200510-200702

W(DISCHARGE HEADLAMP)

main9008C-07006×2iNCP42..TAIW200303-200510

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP4#200510

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81034×2iAXP4#200210-200511

main90069-81047×2iNCP42..VN200404-200603

SILVER PAINTED

main90069-81067×2iSCP4#200608

main90075-60046×2iNCP42..ATM..15S200510-200702

W(DISCHARGE HEADLAMP)

main9008C-07005×2iNCP42..TAIW200303-200510

9015950311

main90159-50311

9015960249

main90159-60249

90159T0009

main90159-T0009

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
