EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

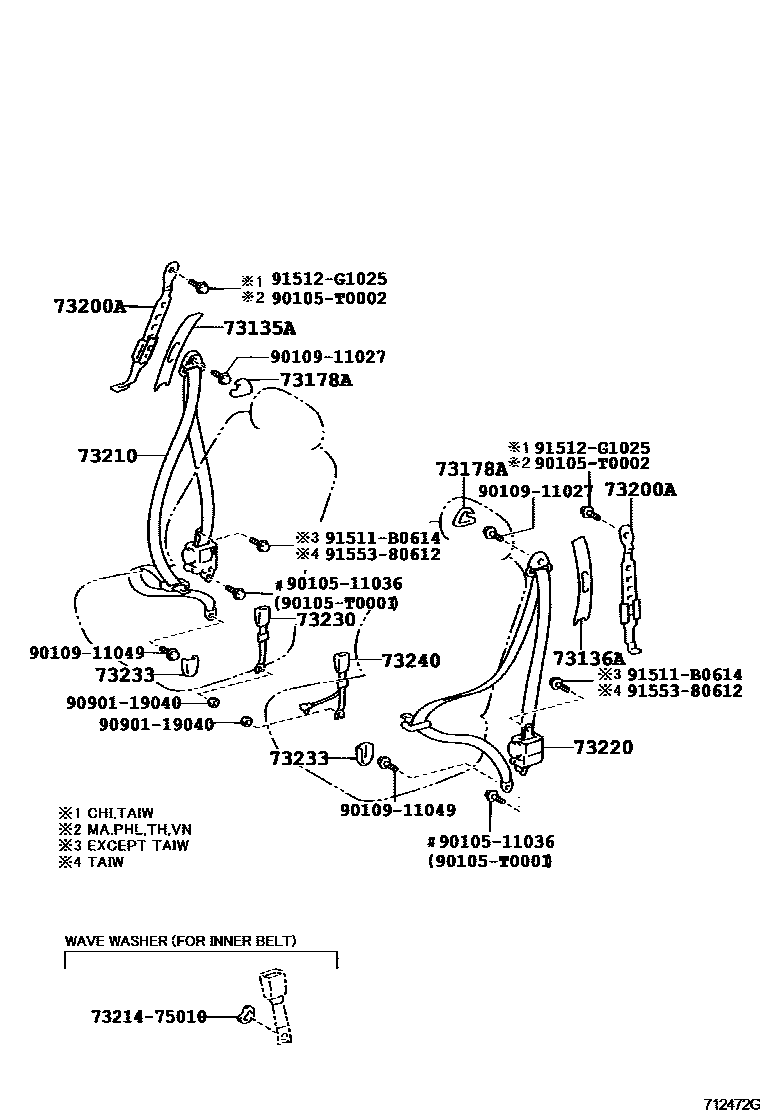

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-0D010-A0i200212-201303
IVORY,TRIM0#
main73135-0D010-B0i200212-201309
LT.GRAY,TRIM1#
main73135-30030-A0i200210-200608
IVORY,TRIM0#
main73135-30030-B2i200511-200608
LT.GRAY,TRIM1#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73135-0D010-A0i200212-201303
IVORY,TRIM0#
main73135-0D010-B0i200212-201309
LT.GRAY,TRIM1#
main73135-30030-A0i200210-200608
IVORY,TRIM0#
main73135-30030-B2i200511-200608
LT.GRAY,TRIM1#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33020-A1i200210-201303
IVORY,TRIM0#
main73178-33020-B3i200511-201309
LT.GRAY,TRIM1#
main73178-34010-A1i200212-200911
IVORY,TRIM0#
main73178-34010-B8i200212-200911
LT.GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02020-B0i200212-200404
LT.GRAY,TRIM1#
main73200-02040-A0i200303-201303
IVORY,TRIM0#
main73200-02040-B0i200303-201309
LT.GRAY,TRIM1#
main73200-02090-A0i200405-200708
IVORY,TRIM0#
main73200-02090-B0i200405-200709
LT.GRAY,TRIM1#
main73200-0D010-A0i200210-200608
IVORY,TRIM0#
main73200-0D010-B0i200511-200608
LT.GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-02110-A0i200512-200708
IVORY,TRIM0#
main73210-02110-C1i200305-200708
BLACK,TRIM1#
main73210-0D080-A0i200303-200911
IVORY,TRIM0#
main73210-0D080-C0i200303-200911
BLACK,TRIM1#
main73210-0D090-A0i200212-200702
IVORY,TRIM0#
main73210-0D090-C0i200212-200709
BLACK,TRIM1#
main73210-0D110-A0i200212-200702
W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73210-0D110-C0i200212-200702
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-0D120-A0i200210-200301
IVORY,TRIM0#
main73210-0D121-A0i200301-200410
IVORY,TRIM0#
main73210-0D122-A0i200410-200608
IVORY,TRIM0#
main73210-0D122-C0i200511-200608
BLACK,TRIM1#
main73210-0D130-C0i200212-200702
BRUNEI OR SINGAPORE SPEC,BLACK,TRIM1#
main73210-0D130-C0i200305-200702
BLACK,TRIM1#
main73210-0D130-C0i200403-200702
INDONESIA SPEC & TAXI SPEC,BLACK,TRIM1#
main73210-0D150-A0i200212-200510
BRUNEI SPEC & W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73210-0D150-A0i200510-200702
BRUNEI SPEC & W(PRETENSIONER SEAT BELT);SINGAPORE SPEC & W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73210-0D150-C0i200212-200510
BRUNEI SPEC & W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-0D150-C0i200510-200702
BRUNEI SPEC & W(PRETENSIONER SEAT BELT);SINGAPORE SPEC & W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73210-0D280-A0i200911-201303
IVORY,TRIM0#
main73210-0D280-C0i200911-201309
BLACK,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-02080-A0i200512-200708
IVORY,TRIM0#
main73220-02080-C1i200305-200708
BLACK,TRIM1#
main73220-0D070-A0i200210-200301
IVORY,TRIM0#
main73220-0D071-A0i200301-200410
IVORY,TRIM0#
main73220-0D072-A0i200410-200608
IVORY,TRIM0#
main73220-0D072-C0i200511-200608
BLACK,TRIM1#
main73220-0D080-A0i200303-200911
IVORY,TRIM0#
main73220-0D080-C0i200303-200911
BLACK,TRIM1#
main73220-0D090-A0i200212-200702
IVORY,TRIM0#
main73220-0D090-C0i200212-200709
BLACK,TRIM1#
main73220-0D110-A0i200212-200702
W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73220-0D110-C0i200212-200702
W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73220-0D130-C0i200212-200702
BRUNEI OR SINGAPORE SPEC,BLACK,TRIM1#
main73220-0D130-C0i200403-200702
INDONESIA SPEC & TAXI SPEC,BLACK,TRIM1#
main73220-0D130-C0i200305-200702
BLACK,TRIM1#
main73220-0D150-A0i200212-200510
BRUNEI SPEC & W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73220-0D150-A0i200510-200702
BRUNEI SPEC & W(PRETENSIONER SEAT BELT);SINGAPORE SPEC & W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
main73220-0D150-C0i200510-200702
BRUNEI SPEC & W(PRETENSIONER SEAT BELT);SINGAPORE SPEC & W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73220-0D150-C0i200212-200510
SINGAPORE SPEC & W(PRETENSIONER SEAT BELT),BLACK,TRIM1#
main73220-0D260-A0i200911-201303
IVORY,TRIM0#
main73220-0D260-C0i200911-201309
BLACK,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-02100-A0i200512-200708
IVORY,TRIM0#
main73230-02100-B0i200305-200708
DK.GRAY,TRIM1#
main73230-02110-A0i200303-201303
IVORY,TRIM0#
main73230-02110-B0i200303-201309
DK.GRAY,TRIM1#
main73230-02110-B0i200303-200510
DK.GRAY,TRIM12,13
main73230-0D020-A0i200210-200608
IVORY,TRIM0#
main73230-0D020-B0i200511-200608
DK.GRAY,TRIM1#
main73230-0D100-B0i200305-200603
DK.GRAY,TRIM1#
main73230-0D110-A0i200311-200702
IVORY,TRIM0#
main73230-0D110-B0i200212-200510
DK.GRAY,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
main73233-02020-A0i200212-200708
IVORY,TRIM0#
main73233-02020-B0i200212-200709
DK.GRAY,TRIM1#
main73233-06020-A0i200303-201303
IVORY,TRIM0#
main73233-06020-B1i200303-201309
DK.GRAY,TRIM1#
main73233-33010-A1i200210-200608
IVORY,TRIM0#
main73233-33010-B8i200511-200608
DK.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-02090-A0i200512-200708
IVORY,TRIM0#
main73230-02090-B0i200305-200708
DK.GRAY,TRIM1#
main73230-0D030-A0i200210-200608
IVORY,TRIM0#
main73230-0D030-B0i200511-200608
DK.GRAY,TRIM1#
main73230-0D100-A0i200311-200702
IVORY,TRIM0#
main73230-0D100-B0i200212-200510
DK.GRAY,TRIM1#
main73230-0D110-B0i200305-200603
DK.GRAY,TRIM1#
main73230-0D120-A0i200303-201303
IVORY,TRIM0#
main73230-0D120-B0i200303-201309
DK.GRAY,TRIM1#
main73230-0D120-B0i200303-200510
DK.GRAY,TRIM12,13
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511036
main90105-11036
90105T0001
main90105-T0001
90105T0002
main90105-T0002
9010911027
main90109-11027
9010911049
main90109-11049
9090119040
main90901-19040
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9155380612
main91553-80612

19 parts on this diagram · 2 diagrams in section
