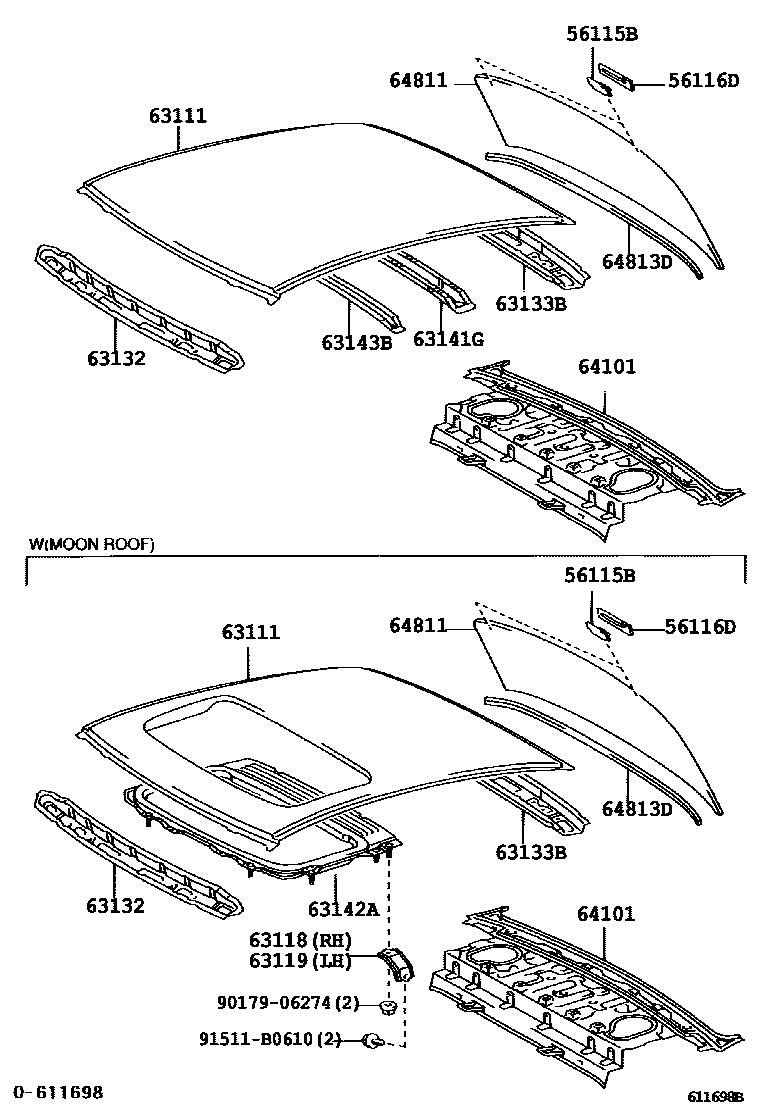

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iNCP4#200212-200603

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iAXP4#200210-200511

63111PANEL, ROOF

main63111-0D030iNCP4#200510

main63111-0D040iAXP42..GLI,GLXI200210-200511

W(MOON ROOF)

main63111-0D900iNCP42..(15E,15G)..TAIW200303-200510

W(MOON ROOF)

main63111-0D901iNCP42..(15E,15G)..TAIW200510-200710

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-0D010iAXP42..GLI,GLXI200210-200511

63119SUPPORT, ROOF PANEL, LH

main63118-0D010iAXP42..GLI,GLXI200210-200511

63132PANEL, WINDSHIELD HEADER, INNER

main63132-0D020iAXP4#200210-200511

main63132-0D030iNCP4#..PHL,TH200510-200702

main63132-0D060iNCP42..MA,TAIW,VN200510

63133BFRAME, BACK WINDOW

main63133-0D010iAXP4#200210-200511

main63133-0D020iNCP4#..PHL,TH200510-200702

main63133-0D050iNCP42..MA,TAIW,VN200510

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0D020iAXP4#200210-200511

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-12100iAXP42..GLI,GLXI200210-200511

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0D020iAXP4#200210-200511

64101PANEL SUB-ASSY, UPPER BACK

main64101-0D010iSCP4#200608

main64101-0D020iNCP42..TAIW200303-200510

main64101-0D030iNCP4#..MA,PHL,TH200212-200603

main64101-0D110iNCP42200911-201309

64811GLASS, BACK WINDOW

main64811-0D010iAXP4#200210-200302

*EHTT,T=3.1,GREEN

main64811-0D011iAXP4#200511-200603

*EHTT,T=3.1,GREEN

main64811-0D020iAXP4#200210-200302

*EHTT,T=3.1,GREEN,COLD SPEC

main64811-0D021iSCP4#200608

*EHTT,T=3.1,GREEN

main64811-0D030iNCP4#200212-200603

*EHTT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0D010iSCP4#200608

main64813-0D020iNCP42..TAIW200510

main64813-52010iNCP42..TH200510-200702

main64813-52050iNCP4#..MA,PHL,VN200510-200709

9017906274

main90179-06274

91511B0610

main91511-B0610

15 parts on this diagram · 3 diagrams in section
