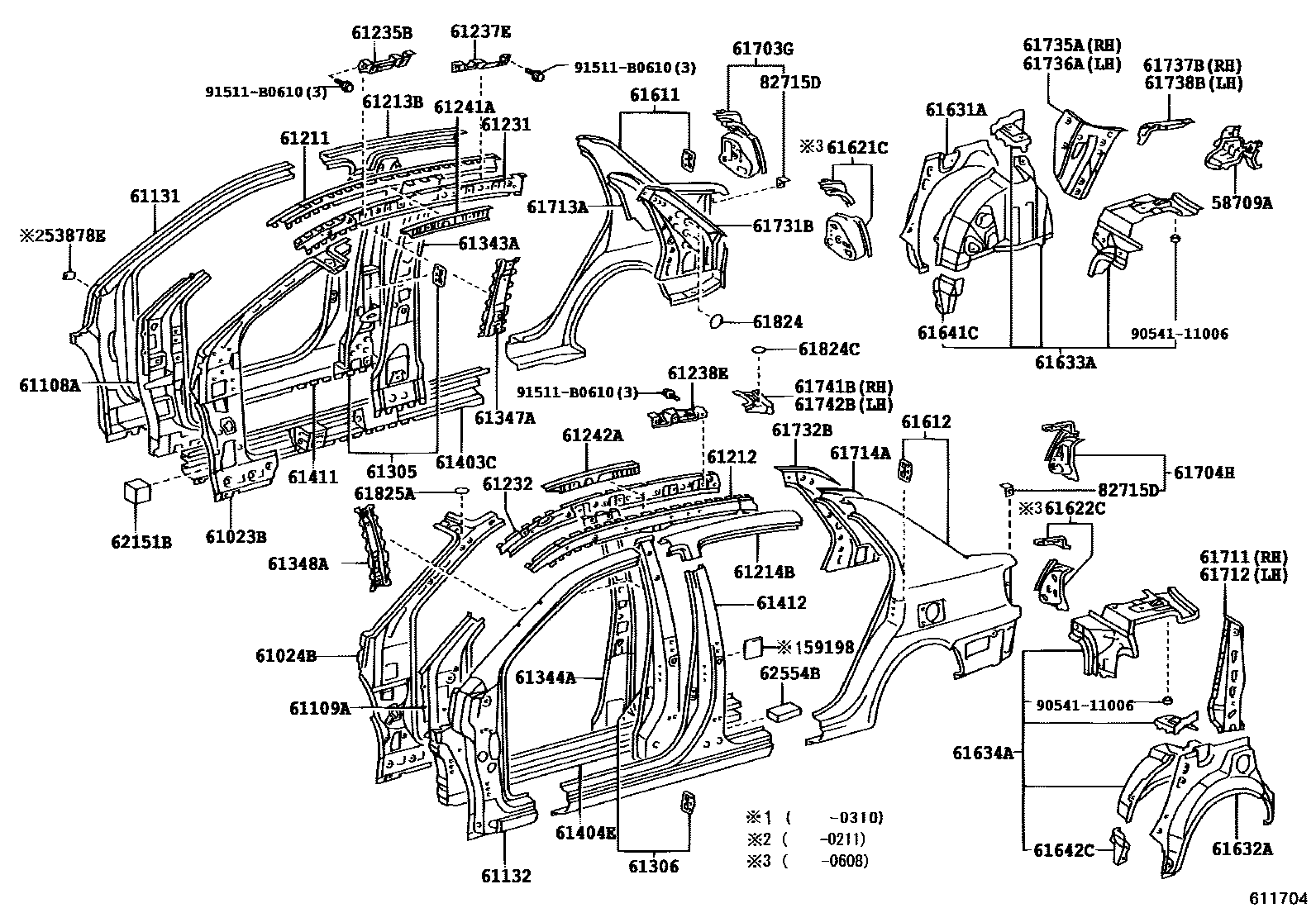

SIDE MEMBER

0001 1 0002 1

53878ESPACER, FRONT FENDER

main53878-44040iNCP4#200210-200603

58709ACARRIER SUB-ASSY, JACK

main58709-0D010iAXP4#200210-200608

main58709-0D020iNCP4#..MA,PHL,TH200212-200708

59198SEAL, NOISE SHUTTER

main59198-0D010iNCP4#..MA,PHL,TH200212-200310

main59198-12010iNCP42..TAIW,VN200210-200310

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D020iAXP4#200210-200608

main61023-0D030iNCP42..TAIW200303-201309

main61023-0D040iNCP4#..PHL,TH200212-200702

main61023-0D070iNCP42..VN200305-200709

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0D020iAXP4#200210-200608

main61024-0D030iNCP42..TAIW200303-201309

main61024-0D040iNCP4#..PHL,TH200212-200702

main61024-0D070iNCP42..MA,VN200305-200709

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0D020iAXP4#200210-200608

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0D020iAXP4#200210-200608

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0D020iSCP4#200210-200608

main61131-0D030iSCP42..GLS200210-200608

W(SIDE MUDGUARD)

main61131-0D040iNCP4#200212-200603

main61131-0D050iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0D020iAXP4#200210-200608

main61132-0D030iAXP42..GLI,GLXI200210-200608

W(SIDE MUDGUARD)

main61132-0D040iNCP4#200212-200603

main61132-0D050iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61211RAIL, ROOF SIDE, OUTER RH

main61211-0D030iAXP4#200210-200608

61212RAIL, ROOF SIDE, OUTER LH

main61212-0D030iAXP4#200210-200608

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D020iAXP4#200210-200608

main61213-0D030iNCP4#200212-200603

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0D020iAXP4#200210-200608

main61214-0D030iNCP4#200212-200603

61231RAIL, ROOF SIDE, INNER RH

main61231-0D050iNCP42..TAIW200303-200510

main61231-0D070iNCP4#..MA,PHL,TH200212-200709

main61231-0D090iAXP4#200210-200608

61232RAIL, ROOF SIDE, INNER LH

main61232-0D050iNCP42..TAIW200303-200510

main61232-0D070iNCP42..VN200212-200709

main61232-0D090iAXP4#200210-200608

61235BBRACKET, ASSIST GRIP

main61235-52020iAXP42..GLS,GLXI200210-200608

61237EBRACKET, ASSIST GRIP, NO.1

main61237-52010iAXP42..GLI,GLXI200210-200608

61238EBRACKET, ASSIST GRIP, NO.2

main61238-52010iAXP42..GLS,GLXI200210-200608

61241AGUSSET, ROOF SIDE RAIL, REAR RH

main61241-0D010iAXP4#200210-200608

61242AGUSSET, ROOF SIDE RAIL, REAR LH

main61242-0D010iAXP4#200210-200608

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-0D020iNCP4#200212-200603

main61305-0D900iSCP4#200210-200608

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-0D020iNCP4#200212-200603

main61306-0D900iAXP4#200210-200608

61343APILLAR, CENTER BODY, INNER RH

main61343-0D903iSCP4#200210-200608

61344APILLAR, CENTER BODY, INNER LH

main61344-0D903iNCP4#200210-200608

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-0D010iAXP4#200210-200608

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-0D010iAXP4#200210-200608

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D030iAXP4#200210-200608

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0D030iAXP4#200210-200608

61411PANEL, ROCKER, OUTER RH

main61411-0D030iSCP4#200210-200608

main61411-0D040iAXP42..GLS200210-200608

W(SIDE MUDGUARD)

main61411-0D050iNCP4#200212-200603

main61411-0D060iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61412PANEL, ROCKER, OUTER LH

main61412-0D030iSCP4#200210-200608

main61412-0D040iSCP42..GLS200210-200608

W(SIDE MUDGUARD)

main61412-0D050iNCP4#200212-200603

main61412-0D060iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61611PANEL, QUARTER, RH

main61601-0D020iAXP4#200210-200608

main61601-0D030iAXP42..GLI,GLXI200210-200608

W(SIDE MUDGUARD)

main61601-0D040iNCP4#200212-200603

main61601-0D050iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61612PANEL, QUARTER, LH

main61602-0D030iAXP4#200210-200608

main61602-0D040iAXP42..GLS200210-200608

W(SIDE MUDGUARD)

main61602-0D050iNCP4#200212-200603

main61602-0D060iNCP42..ATM..(15G,15S)..(TAIW,TH)200212-200709

W(SIDE MUDGUARD)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-0D901iNCP4#200212-200603

main61621-0D902iAXP4#200210-200608

main61621-0D903iNCP4#..MA,PHL,TH200510-200708

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-0D901iNCP4#200212-200603

main61622-0D902iAXP4#200210-200608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0D020iAXP4#200210-200608

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-0D020iAXP4#200210-200608

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-0D900iAXP4#..DLX,DLXI200210-200511

main61633-0D901iAXP4#..GL,GLI,GLXI200210-200511

W(ABS)

main61633-0D901iAXP4#200511-200608

main61633-0D902iNCP42..VN200212-200911

main61633-0D903iNCP42..15E..(TAIW,TH);NCP42..(15G,15S)..(MA,PHL,TAIW,TH)200212-200512

W(ABS)

main61633-0D903iNCP42..15J200911

main61633-0D904iNCP42..TAIW200303-200510

main61633-0D905iNCP42..(15E,15G)..TAIW200303-200510

W(ABS)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-0D900iAXP41..GL200210-200511

main61634-0D901iAXP4#..GL,GLI,GLXI200210-200511

W(ABS)

main61634-0D901iAXP4#200511-200608

main61634-0D902iNCP42..VN200212-200911

main61634-0D903iNCP42..15E..(TAIW,TH);NCP42..(15G,15S)..(MA,PHL,TAIW,TH)200212-200512

W(ABS)

main61634-0D903iNCP42..15J200911

main61634-0D904iNCP42..TAIW200303-200510

main61634-0D905iNCP42..(15E,15G)..TAIW200303-200510

W(ABS)

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D020iAXP4#200210-200608

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-0D020iAXP4#200210-200608

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-0D010iAXP4#200511-200608

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-0D030iAXP4#200511-200608

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D010iAXP4#200210-200608

61712PANEL, ROOF SIDE, OUTER LH

main61712-0D010iAXP4#200210-200608

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-0D010iAXP4#200210-200608

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-0D010iAXP4#200210-200608

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D010iAXP4#200210-200608

main61731-0D020iNCP4#..MA,PHL,TH200212-200708

61732BPANEL, ROOF SIDE, INNER LH

main61732-0D010iAXP4#200210-200608

main61732-0D020iNCP4#..PHL,TH200212-200708

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0D010iNCP42..TAIW200303-200510

main61735-0D020iNCP42..VN200212-200709

main61735-0D040iAXP4#200210-200608

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-0D020iNCP4#..MA,PHL,TH,VN200212-200709

main61736-0D040iNCP42..VN200303-200510

main61736-0D050iAXP4#200210-200608

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-0D010iAXP4#200210-200608

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61738-0D010iAXP4#200210-200608

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-0D010iSCP4#200210-200702

main61741-0D020iNCP42..MA,TAIW,VN200303-200603

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-0D010iNCP4#..PHL,TH200210-200702

main61742-0D020iNCP42..MA,TAIW,VN200303-200603

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020iNCP4#200301-200603

main61824-52030iAXP4#200210-200608

61824CPAD, NOISE SHUTTER, NO.1

main61824-52010iAXP4#200210-200608

61825APLATE, NOISE CONTROL, NO.2

main61824-52010iAXP4#200210-200608

62151BPAD, COWL SIDE SILENCER

main62151-0D030iNCP4#200212-200603

main62151-0D050iSCP4#200608

main62151-52010iAXP4#200210-200607

62554BPAD, PILLAR, NO.4

main62554-0D040iNCP4#200212-200603

main62554-44010iAXP4#200210-200608

82715DBRACKET, WIRING HARNESS CLAMP

main82715-33250iAXP4#200210-200608

9054111006

main90541-11006

91511B0610

main91511-B0610

62 parts on this diagram · 2 diagrams in section
