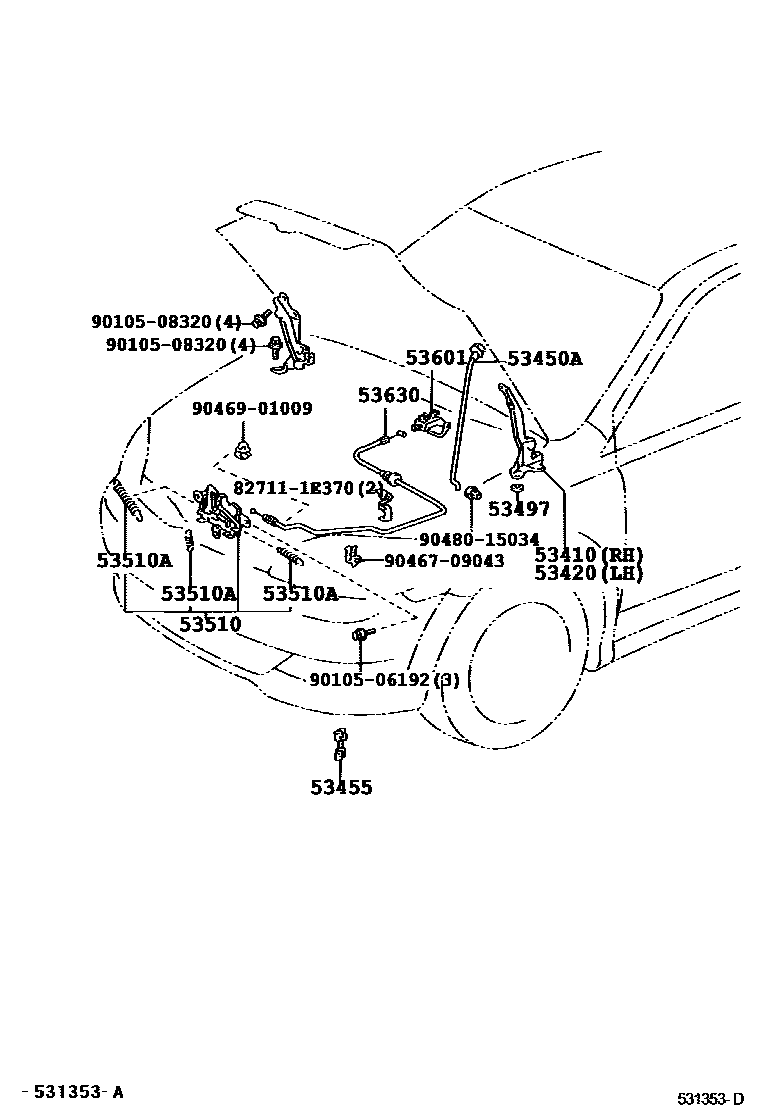

HOOD LOCK & HINGE

0001 1 0002 1 0003 1

53410HINGE ASSY, HOOD, RH

main53410-0D040iNCP4#200212-200603

53420HINGE ASSY, HOOD, LH

main53420-0D040iAXP4#200210-200511

53450ASUPPORT ASSY, HOOD, LH

main53440-52050iAXP4#200511-200608

53455CLAMP, HOOD SUPPORT ROD

main53455-0D030iNCP4#200510

main53455-28020iSCP4#200608

53497PAD, HOOD HINGE, NO.1

main53497-0D020×4iNCP4#..PHL,TAIW,TH,VN200501-200603

T=1.0

main53497-0D030×4iNCP4#..PHL,TAIW,TH,VN200501-200603

T=1.5

main53497-0D060×4iNCP42..MA200212-200512

T=2.0

53510LOCK ASSY, HOOD

main53510-0D030iAXP42..GLI200210-200404

main53510-0D040iAXP41200603-200608

main53510-0D090iNCP4#..PHL,VN;NCP42..15J..TAIW200510

main53510-0D100iNCP42..MA200212-200512

main53510-0D130iNCP42..(15E,15G)..TAIW200510-200807

main53510-0D131iNCP42..15E200808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50350iSCP4#200608

WD=0.9,CW=21

main90080-50351iAXP4#200210-200511

WD=1.2,CW=8.5

main90080-50352iSCP4#200608

WD=1.6,CW=12

main90506-09055iNCP4#200510

WD=0.9,CW=21

main90506-12063iNCP4#..LHD200303-200603

WD=1.2,CW=8.5

main90506-18067iNCP42..MA200212-200512

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-A0iNCP42..RHD..ATM..(15E,15S)200510-200708

IVORY,TRIM0#

main53601-02030-B0iNCP42..PHL;NCP4#..(13E,13STD,15E,15J)..(MA,PHL,TH)200212-200603

STONE,TRIM1#

main53601-02030-B1iNCP42..ATM..15S200510-200702

DK.GRAY,TRIM18

main53601-0D010-A0iAXP4#200210-200511

IVORY,TRIM0#

main53601-0D010-B3iAXP42..15GLI,GLS200511-200608

STONE,TRIM1#

main53601-52010-A0iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main53601-52010-B2iNCP42..VN200307-200404

STONE,TRIM1#

main53601-52010-B3iNCP42..TAIW200303-200510

DK.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D020iAXP4#200210-200511

main53630-0D030iNCP42..TAIW200510

main53630-0D040iNCP4#..PHL,TH200212-200510

main53630-0D060iNCP42..MA,VN200512-200709

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9010506192

main90105-06192

9010508320

main90105-08320

9046709043

main90467-09043

9046901009

main90469-01009

9048015034

main90480-15034

15 parts on this diagram · 3 diagrams in section
