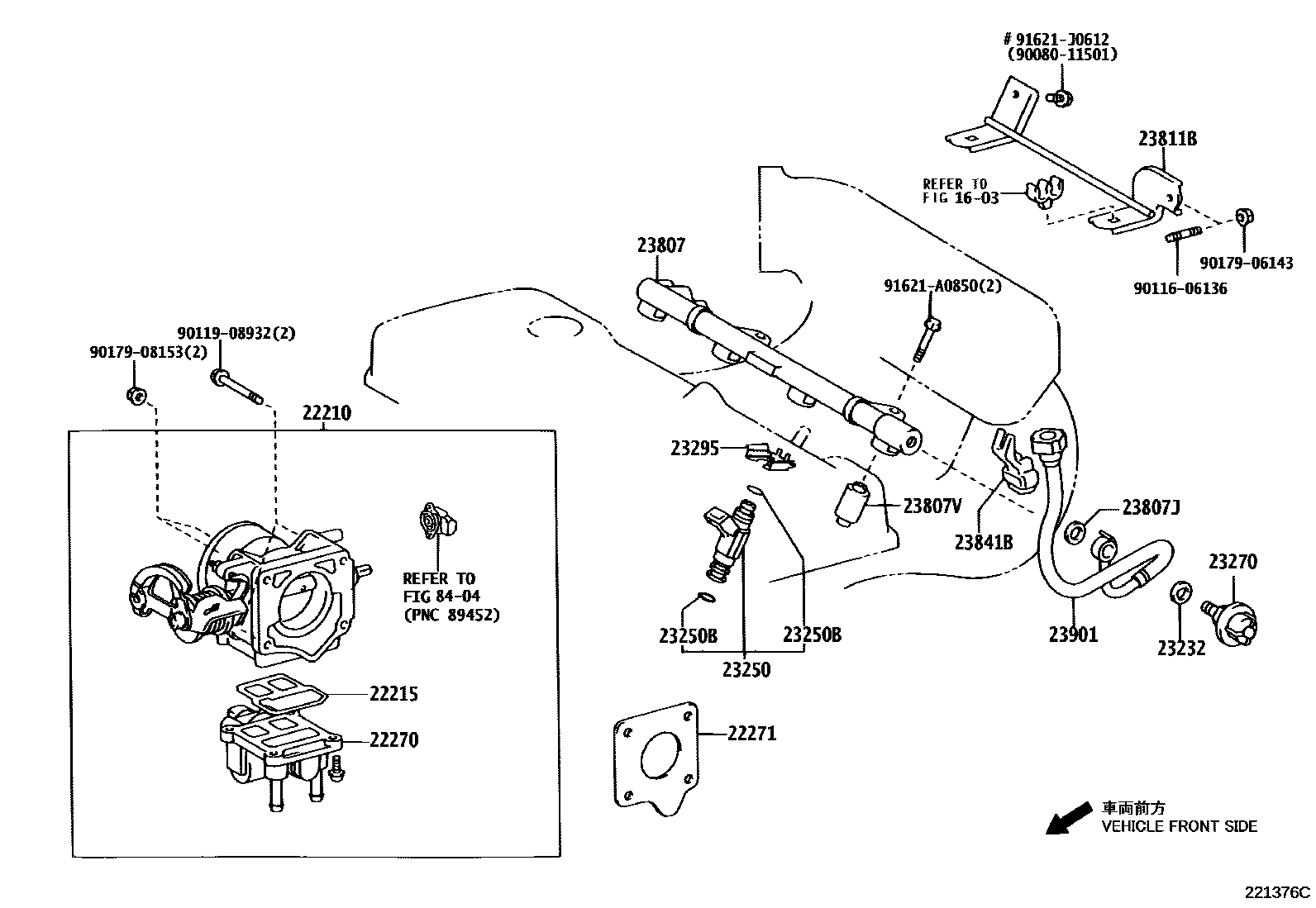

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
(L)
(J)
22215GASKET, THROTTLE BODY COVER
(L)
(L)
(J)
(J)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
(L)
(J)
(J)
22271GASKET, THROTTLE BODY
(L)
(J)
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23295HOLDER, INJECTOR, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811BPIPE, FUEL, NO.1
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23901TUBE SUB-ASSY, FUEL
(L)
(J)
8404ELECTRONIC FUEL INJECTION SYSTEM
9008011501
main90080-11501
9011606136
main90116-06136
9011908932
main90119-08932
9017906143
main90179-06143
9017908153
main90179-08153
91621A0850
main91621-A0850
91621J0612
main91621-J0612
24 parts on this diagram · 5 diagrams in section
