ALTERNATOR

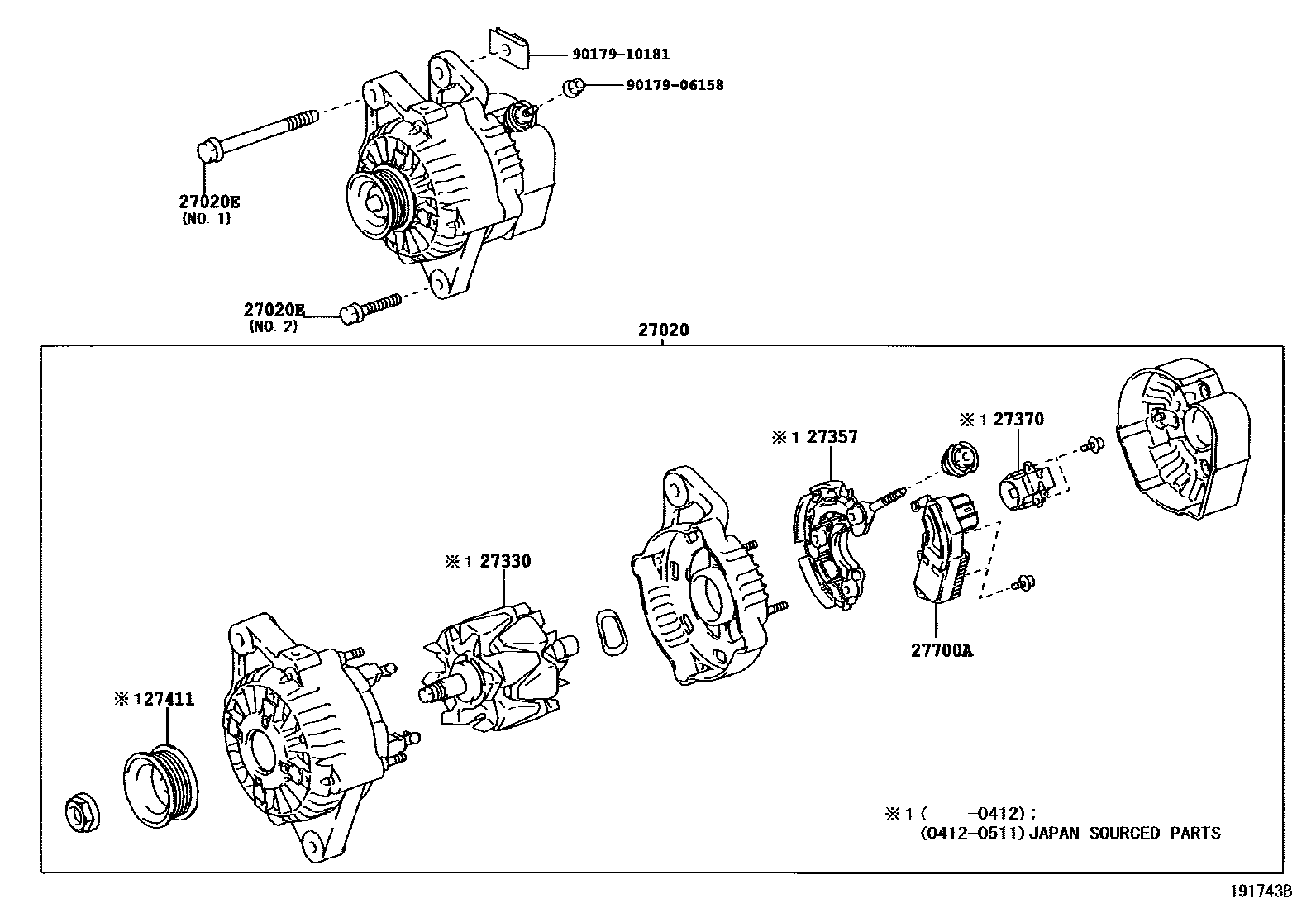

Parts diagram

27020ALTERNATOR ASSY

main27060-02110i200511-200608

12V 60A

main27060-02150i200511-200608

12V 70A

main27060-0J070i200608

12V 80A

main27060-0M010i200303-200506

12V 70A

main27060-0M011i200507-200510

12V 70A

main27060-0M020i200212-200510

12V 70A

main27060-0M021i200602-200702

12V 70A

main27060-0M030i200305-200512

12V 70A

main27060-14020i200412-200511

12V 70A,JAPAN SOURCED PARTS

main27060-21041i200603-200709

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i200212-200603

main90105-10336i200210-200511

NO.1

main90105-10548i200608

main90119-08875i200511-200608

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-02090i200212-200512

main27330-02100i200511-200608

main27330-0H110i200608

main27330-0M010i200507-200510

main27330-67100i200603-200709

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11170i200210-200511

main27357-21060i200307-200603

main27357-22180i200510-200708

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0H110i200608

main27370-35060i200212-200603

27411PULLEY, ALTERNATOR

main27411-0J070i200608

main27411-0M010i200510

main27411-16150i200210-200511

main27411-65010i200510-200708

main27411-70140i200603-200709

main27411-72120i200210-200511

27700AREGULATOR ASSY, GENERATOR

main27700-15080i200210-200511

main27700-21020i200212-200603

main27700-74040i200511-200608

9017906158

main90179-06158

9017910181

main90179-10181

9 parts on this diagram · 4 diagrams in section
