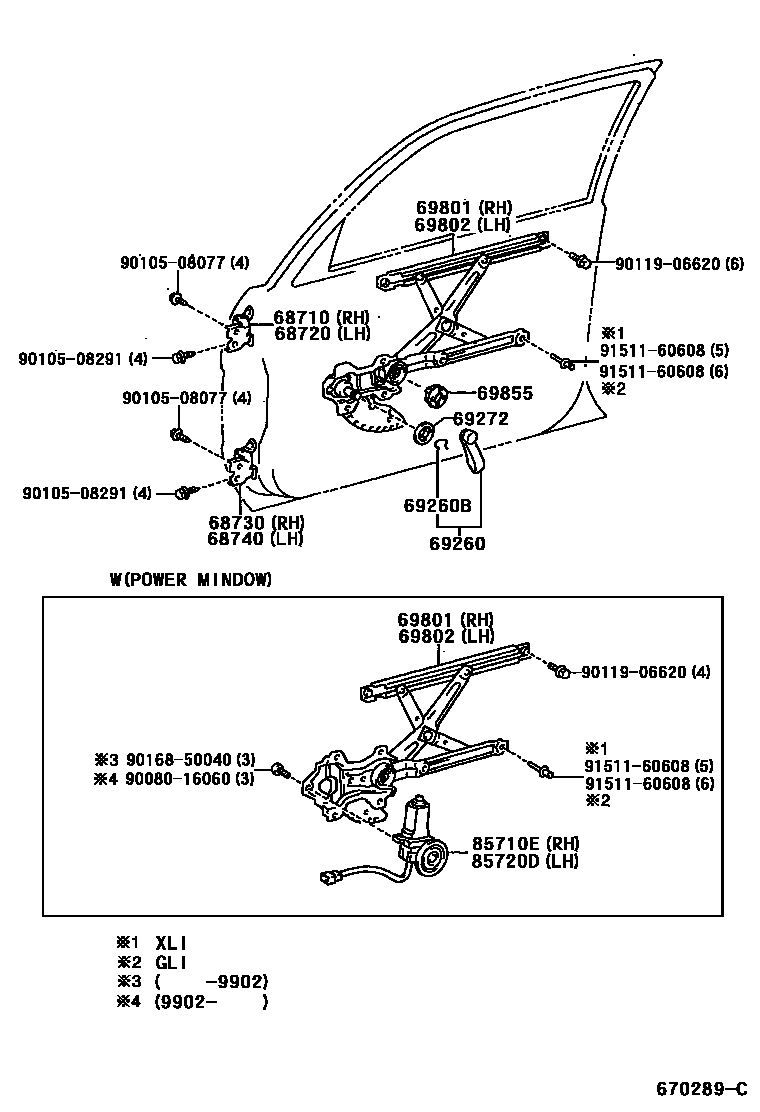

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0A010×2iAL50..GEN199711

main68710-16060iAL50199612-199711

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0A010×2iAL50..GEN199711

main68720-16060iAL50199612-199711

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-16060iAL50199612-199711

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-16060iAL50199612-199711

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0A010-B0×2iAL50..SLI,XLI;AL50..(3FC,5F)..GLI199612-199910

GRAY,TRIM1#

main69260-0A010-B1×2iAL50..XLI..IDN200003

BLUISH GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iAL50..SLI,XLI199612-200111

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAL50..XLI200111

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0A010iAL50..GLI199910-200111

main69801-0A020iAL50..GLI199902-199910

main69801-16070iAL50..GLI199612-199902

main69810-0A010iAL50..SLI,XLI199612-200111

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0A010iAL50..GLI199902-200111

main69802-16070iAL50..GLI199612-199902

main69820-0A010iAL50..XLI200111

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iAL50199612

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0A030iAL50..GLI199902-199910

main85710-16110iAL50..GLI199612-199902

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0A010iAL50..GLI199902-199910

main85720-16110iAL50..GLI199612-199902

9008016060

main90080-16060

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

9151160608

main91511-60608

18 parts on this diagram · 1 diagram in section
