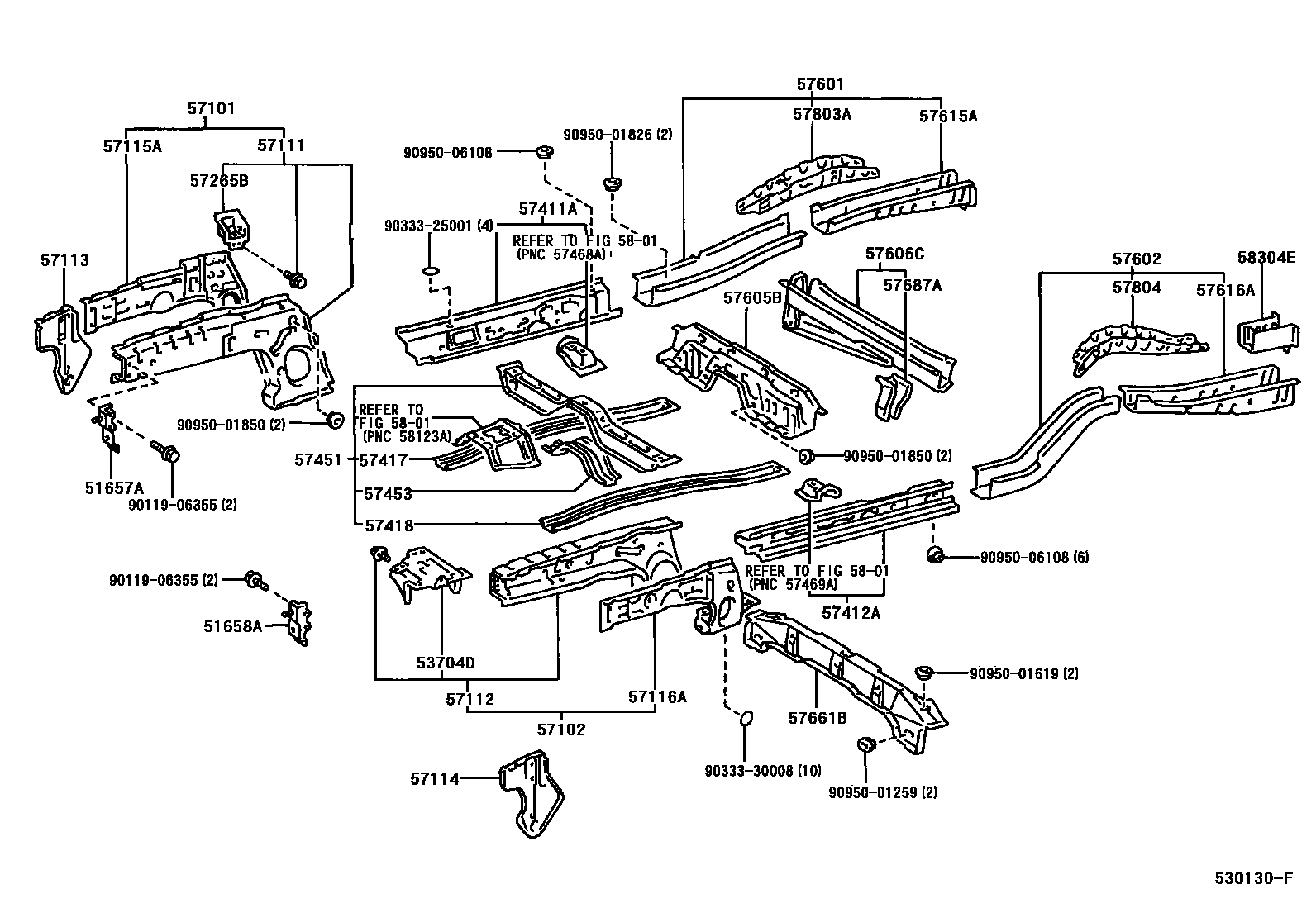

FLOOR SIDE MEMBER

51657ABRACKET, FRONT BUMPER ARM, RH

main51657-0A010iAL50200104-200105

main51657-0A020iAL50..IDN200105

51658ABRACKET, FRONT BUMPER ARM, LH

main51658-0A010iAL50..GEN199910-200104

main51658-0A020iAL50..IDN200105

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-0A010iAL50199612

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0A010iAL50199612-199902

main57101-0A020iAL50199902

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0A010iAL50199612-199902

main57102-0A020iAL50199902

57111MEMBER, FRONT SIDE, RH

main57111-0A900iAL50199612-199910

main57111-0A901iAL50..GEN200104

57112MEMBER, FRONT SIDE, LH

main57112-0A900iAL50199612-199910

main57112-0A901iAL50..GEN199910

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0A010iAL50..IDN199910

main57113-0A020iAL50..GEN199910

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0A010iAL50199612-199910

main57114-0A020iAL50..GEN199910

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-0A900iAL50199612-199910

main57115-0A901iAL50..GEN199910

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-0A900iAL50199612-199902

main57116-0A901iAL50199902

57265BBRACKET, ENGINE MOUNTING, RH

main57265-0A010iAL50199612

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-0A900iAL50199612

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-0A900iAL50199612

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0A010iAL50199612

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0A010iAL50199612

57451MEMBER, FRONT FLOOR CROSS

main57408-0A900iAL50199612-199910

main57408-0A901iAL50..GLI..GEN199910

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10021iAL50199612

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0A010iAL50199612-199810

main57601-0A020iAL50199903

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0A900iAL50199612-199810

main57602-0A901iAL50199810-199903

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0A010iAL50199612-199810

main57605-0A020iAL50..GEN199903

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0A010iAL50199612

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0A010iAL50199612-199810

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0A010iAL50199612-199810

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-0A010iAL50..GEN199910

main57661-16020iAL50..IDN199810

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57687-16020iAL50199612

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-16021iAL50199612-199810

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-16060iAL50199612-199810

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-16080iAL50199612-199810

9011906355

main90119-06355

9033325001

main90333-25001

9033330008

main90333-30008

9095001259

main90950-01259

9095001619

main90950-01619

9095001826

main90950-01826

9095001850

main90950-01850

9095006108

main90950-06108

38 parts on this diagram · 1 diagram in section
