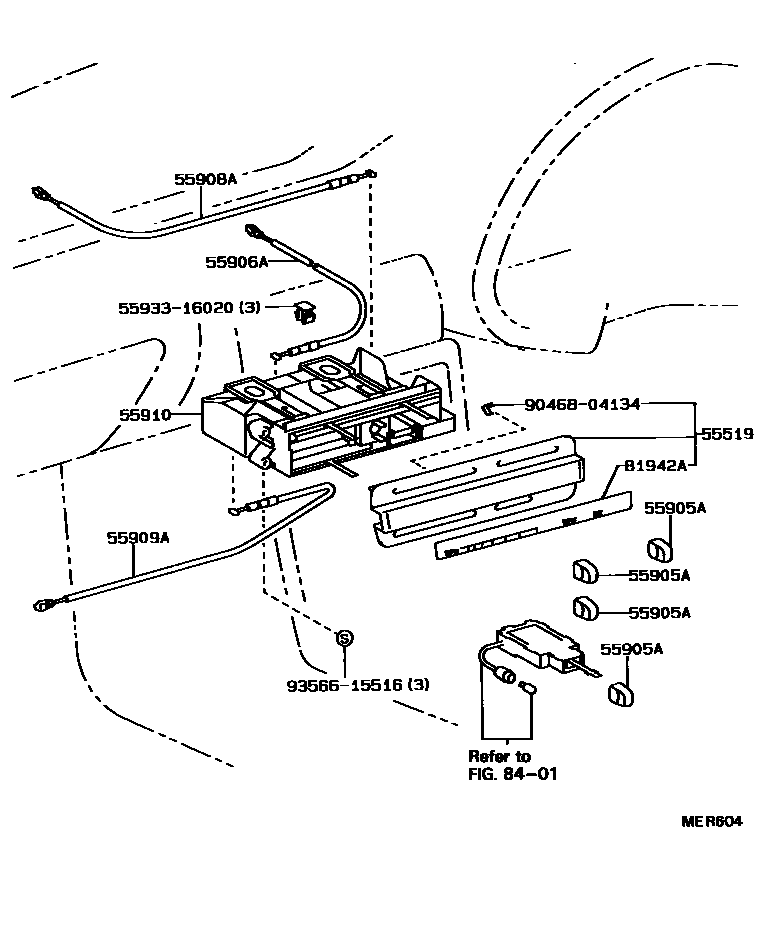

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55519PLATE, HEATER CONTROL NAME

main55519-16010-01iEL44199104-199208

BLACK,TRIM2#

main55519-16011-22iEL44199208-199508

BLACK,TRIM2#

55905AKNOB, HEATER CONTROL

main55905-89115×4iEL44199104-199208

LEVER

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16070iEL44199104-199508

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16070iEL44199104-199508

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16070iEL44199104-199508

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16140iEL44199104-199208

main55910-16141iEL44199208-199508

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16130-01iEL44199104-199208

BLACK,TRIM2#

main81942-16131-C0iEL44199208-199508

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5593316020GUIDE, LEVER, NO.2

main55933-16020

9046804134

main90468-04134

9356615516

main93566-15516

11 parts on this diagram · 2 diagrams in section
