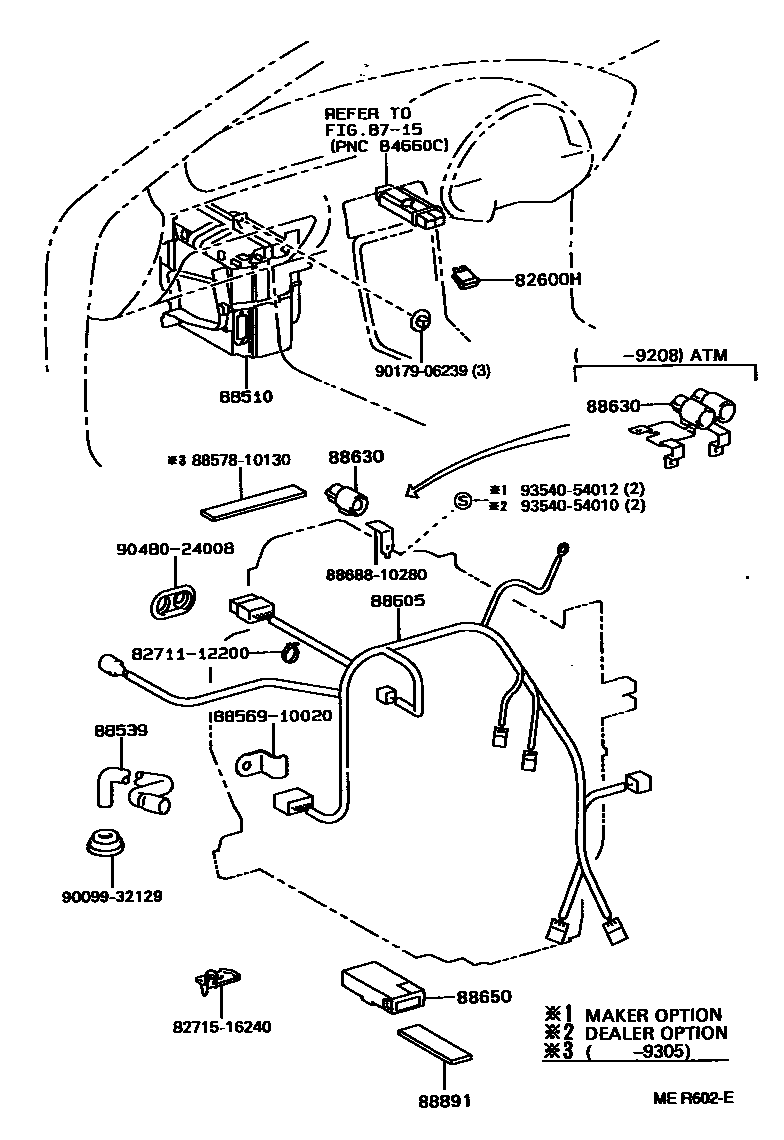

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82600HFUSE, FUSE BLOCK

main90982-09002iEL44199104-199208

10A

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88510UNIT ASSY, COOLER

main88510-10240iEL44199104-199308

main88510-16480iEL44199308-199508

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090iEL44199104-199208

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1G541iEL44..MTM199208-199308

main88605-1G550iEL44..MTM199104-199208

main88605-1G560iEL44..ATM199104-199208

main88605-1G830iEL44..ATM199208-199308

main88605-1G831iEL44..ATM199308-199508

main88605-1G860iEL44..MTM199308-199508

88630RELAY ASSY, COOLER

main88630-16120iEL44..ATM199104-199208

main88630-95702iEL44199208-199508

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16440iEL44..MTM199104-199508

main88650-16500iEL44..ATM199104-199208

main88650-16540iEL44..ATM199208-199508

88891PACKING (FOR COOLER)

main88578-16190iEL44199104-199508

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271516240BRACKET,WIRING HARNESS CLAMP

main82715-16240

8856910020CLAMP (FOR COOLER RELAY)

main88569-10020

8857810130PAKING, COOLER AIR DUCT

main88578-10130

8868810280BRACKET, COOLER DIAPHRAGM

main88688-10280

9009932129

main90099-32129

9017906239

main90179-06239

9048024008

main90480-24008

9354054010

main93540-54010

9354054012

main93540-54012

18 parts on this diagram · 2 diagrams in section
