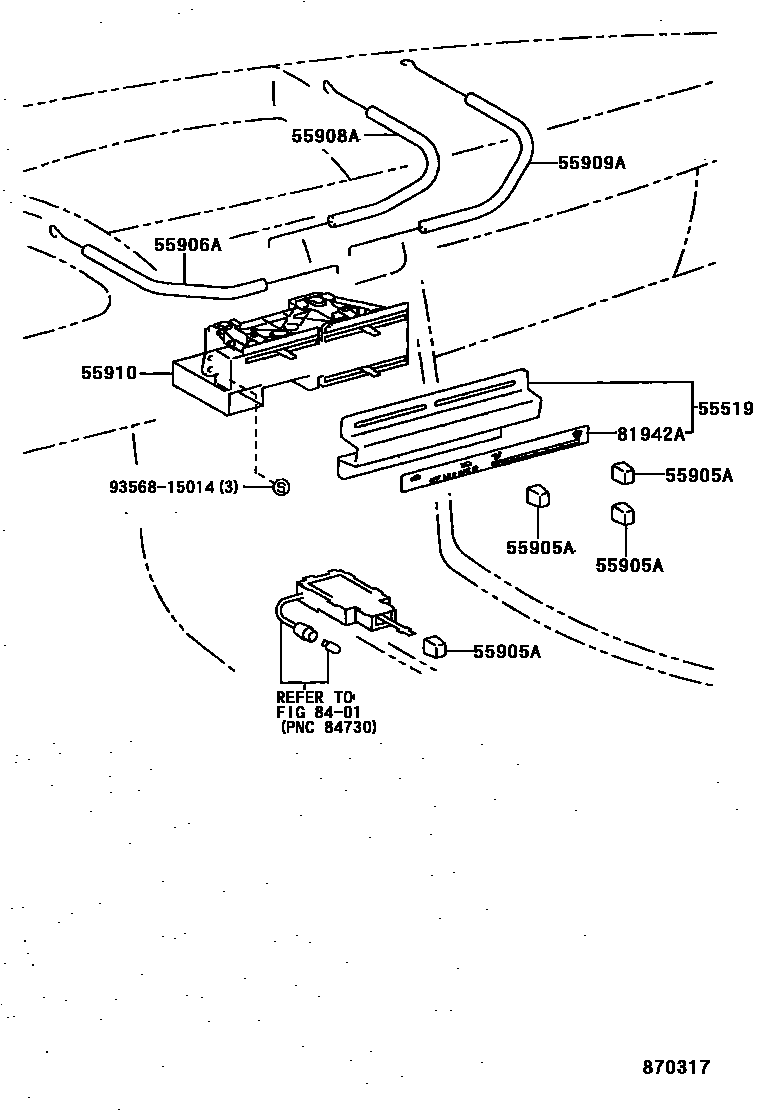

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0007 1

55519PLATE, HEATER CONTROL NAME

main55519-16090iEL54..RHD..EUR199512-199712

main55519-16110iEL54..ARL199508-199608

main55519-16140iEL54..GEN199508-199608

main55519-16190iEL54..LHD..EUR; EL54..RHD..EUR199512-199608

COOLER SW.=W/ECON

main55519-16220iEL54..RHD..CP199712-199802

main55519-16230iEL54..RHD..EUR199802

W(AIR CONDITIONER)

main55519-16250iEL54..LHD..CP199712-199802

main55519-16260iEL54..LHD..CP199712-199802

W(AIR CONDITIONER)

55905AKNOB, HEATER CONTROL

main55905-89115×4iEL54..ARL,GEN199508-199608

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16090iEL54..ARL199508-199608

main55906-16100iEL54..GEN199508-199608

main55906-16120iEL54..RHD..EUR199512-199608

main55906-16130iEL54..LHD..EUR199512-199608

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16100iEL54..ARL,GEN199508-199608

main55908-16120iEL54..EUR199512-199608

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16100iEL54..ARL199508-199608

main55909-16110iEL54..GEN199508-199608

main55909-16130iEL54..RHD..EUR199512-199608

main55909-16140iEL54..LHD199608

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16200iEL54..ARL199508-199608

main55910-16220iEL54..GEN199508-199608

main55910-16270iEL54..RHD..EUR199512-199608

main55910-16280iEL54..LHD199608-199712

main55910-16310iEL54..RHD199802

main55910-16340iEL54..LHD..CP199712-199802

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16200iEL54..ARL199508-199608

main81942-16230iEL54..GEN199508-199608

main81942-16260iEL54..RHD..EUR199512-199708

main81942-16261iEL54..RHD199708-199712

main81942-16270iEL54..LHD199608-199708

main81942-16271iEL54..LHD199708-199712

main81942-16310iEL54..RHD..CP199712-199802

main81942-16330iEL54..LHD..CP199712-199802

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356815014

main93568-15014

9 parts on this diagram · 5 diagrams in section
