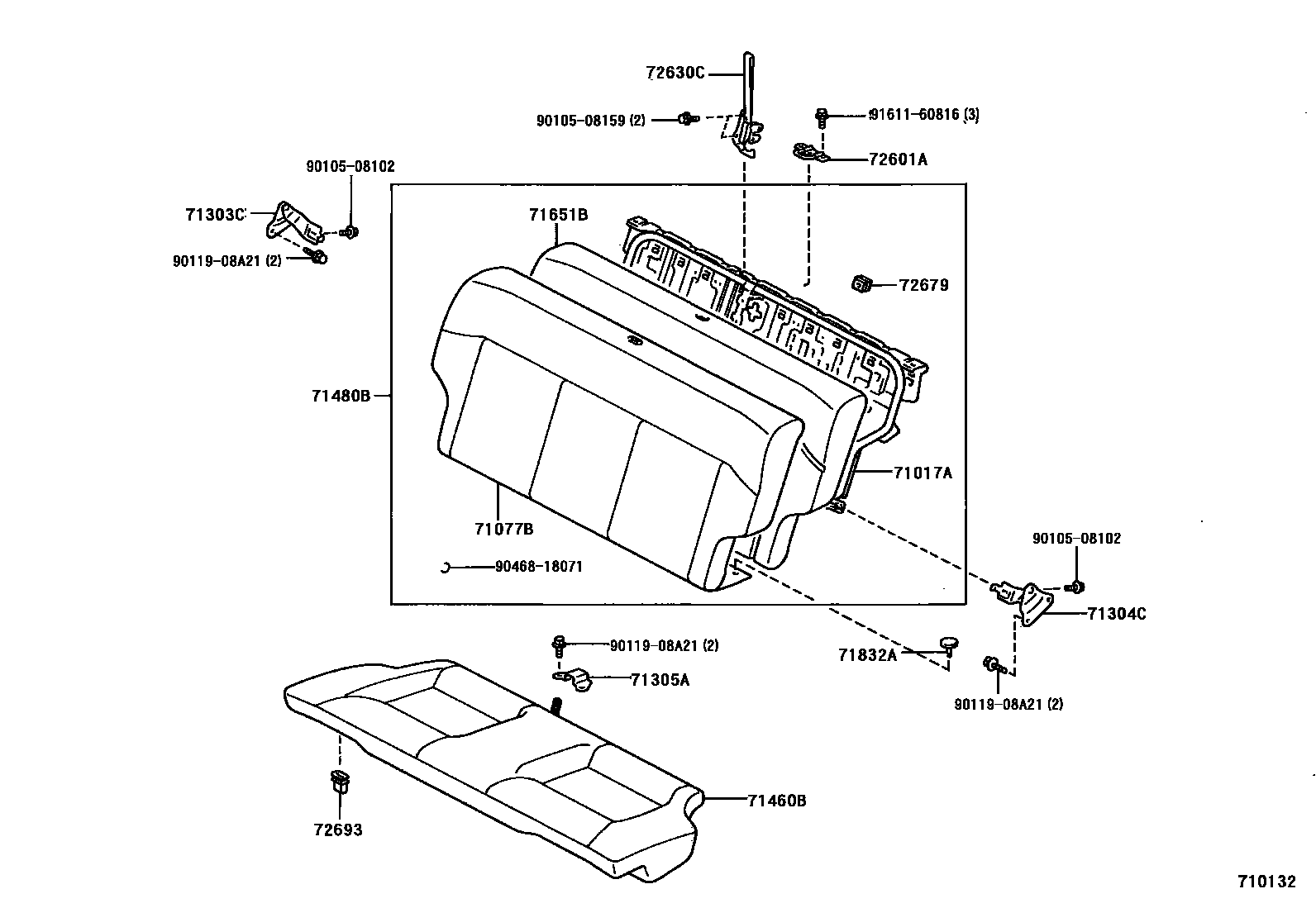

REAR SEAT & SEAT TRACK

0001 1 0002 1

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-16250iEL54..CP199508

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1G840-B0iEL54..ARL,GEN199508-199608

GRAY,TRIM1#

main71077-1G840-B1iEL54..CP..EUR199512-199712

GRAY/BLUE,TRIM1#

main71077-1G840-B2iEL54..ARL,GEN199608-199703

GRAY,TRIM1#

main71077-1G840-B3iEL54..ARL199608-199703

GRAY,TRIM15

main71077-1G840-B4iEL54..CP..EUR199608-199703

GRAY,TRIM15

main71077-1S230-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-16060iEL54..CP199508

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-16040iEL54..CP199508

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71343-16090iEL54..CP199508

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-0W010-B1iEL54..CVT199610-199802

SHADOW GRAY,TRIM1#

main71460-0W030-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

main71460-1G110-B0iEL54..ARL,GEN199508-199608

GRAY,TRIM1#

main71460-1G110-B1iEL54..EUR199512-199608

GRAY,TRIM1#

main71460-1G110-B2iEL54..ARL,GEN199608-199712

GRAY,TRIM1#

main71460-1G110-B3iEL54..CP..EUR199608-199712

GRAY,TRIM1#

main71460-1G410-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-0W060-B1iEL54..CVT199610-199802

SHADOW GRAY,TRIM1#

main71480-0W100-B0iEL54..CVT199802

SHADOW GRAY,TRIM1#

main71480-1S040-B0iEL54..ARL,GEN199508-199605

GRAY,TRIM1#

main71480-1S040-B1iEL54..EUR199512-199605

GRAY,TRIM1#

main71480-1S041-B0iEL54..ARL,GEN199605-199608

GRAY,TRIM1#

main71480-1S041-B1iEL54..EUR199605-199608

GRAY,TRIM1#

main71480-1S041-B2iEL54..ARL,GEN199608-199712

GRAY,TRIM1#

main71480-1S041-B3iEL54..CP..EUR199608-199712

GRAY,TRIM1#

main71480-1S290-B0iEL54..CP199712

SHADOW GRAY,TRIM1#

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-16370iEL54..CP199508

71832ACLIP, REAR SEATBACK CARPET OR MAT

main90467-07026-22×3iEL54..CP199608-199907

BLACK,TRIM1#

main90467-07026-C0×3iEL54199508-199608

BLACK,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-16090iEL54..CP199508

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-16210-B0iEL54199508-199512

BLUISH GRAY,TRIM1#

main72630-16211-B0iEL54199512-199608

BLUISH GRAY,TRIM1#

main72630-16212-B0iEL54199608-199609

BLUISH GRAY,TRIM1

main72630-16213-B0iEL54..CP199608

BLUISH GRAY,TRIM1#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16020-C0iEL54..CP199508

BLACK,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20040×2iEL54199508-199802

9010508102

main90105-08102

9010508159

main90105-08159

9011908A21

main90119-08A21

9046818071

main90468-18071

9161160816

main91611-60816

18 parts on this diagram · 2 diagrams in section
