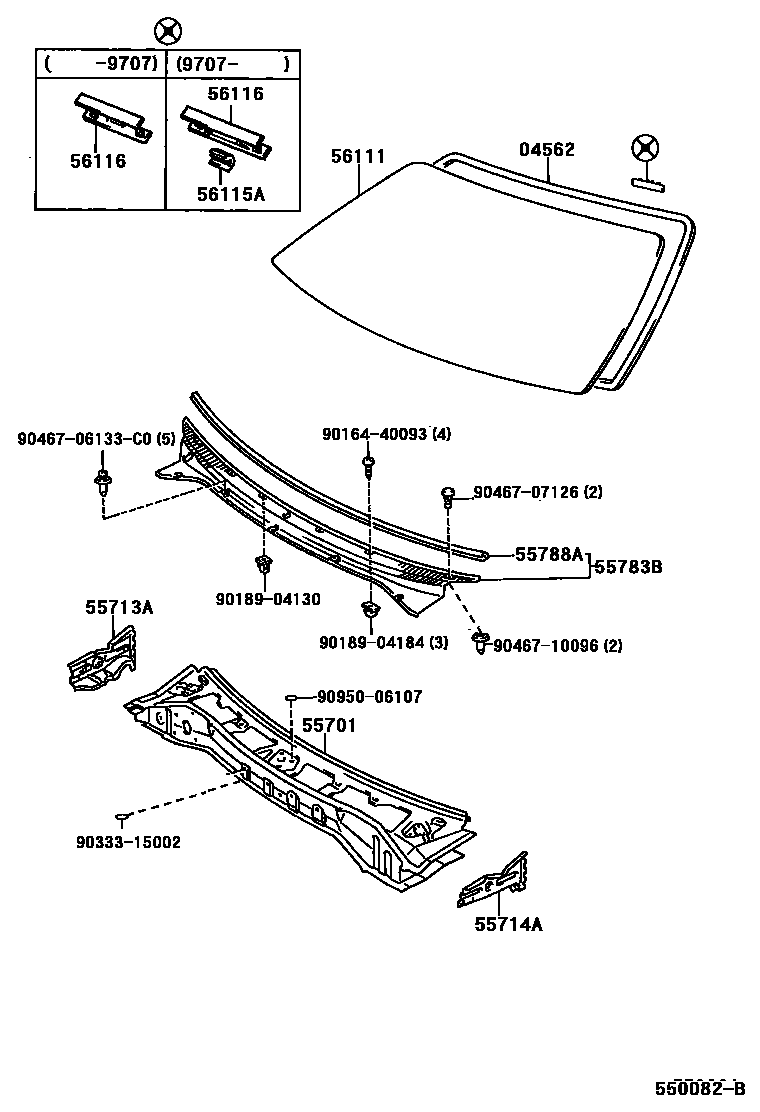

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010199508

55701PANEL SUB-ASSY, COWL

main55700-16280199508-199802

main55700-16330199508

main55700-16350199712-199802

55713APANEL, COWL TOP SIDE, RH

main55713-16060199508

55714APANEL, COWL TOP SIDE, LH

main55714-16060199508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16100199508

main55708-16110199512

main55708-16120199508

main55708-16130199512

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16091199508

56111GLASS, WINDSHIELD

main56111-16410199508

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050199707

56116SPACER, WINDSHIELD GLASS

main56116-16050199508-199707

main56116-22050199707

9016440093

main90164-40093

9018904130

main90189-04130

9018904184

main90189-04184

9033315002

main90333-15002

9046706133C0

main90467-06133C0

9046707126

main90467-07126

9046710096

main90467-10096

9095006107

main90950-06107

17 parts on this diagram · 1 diagram in section
