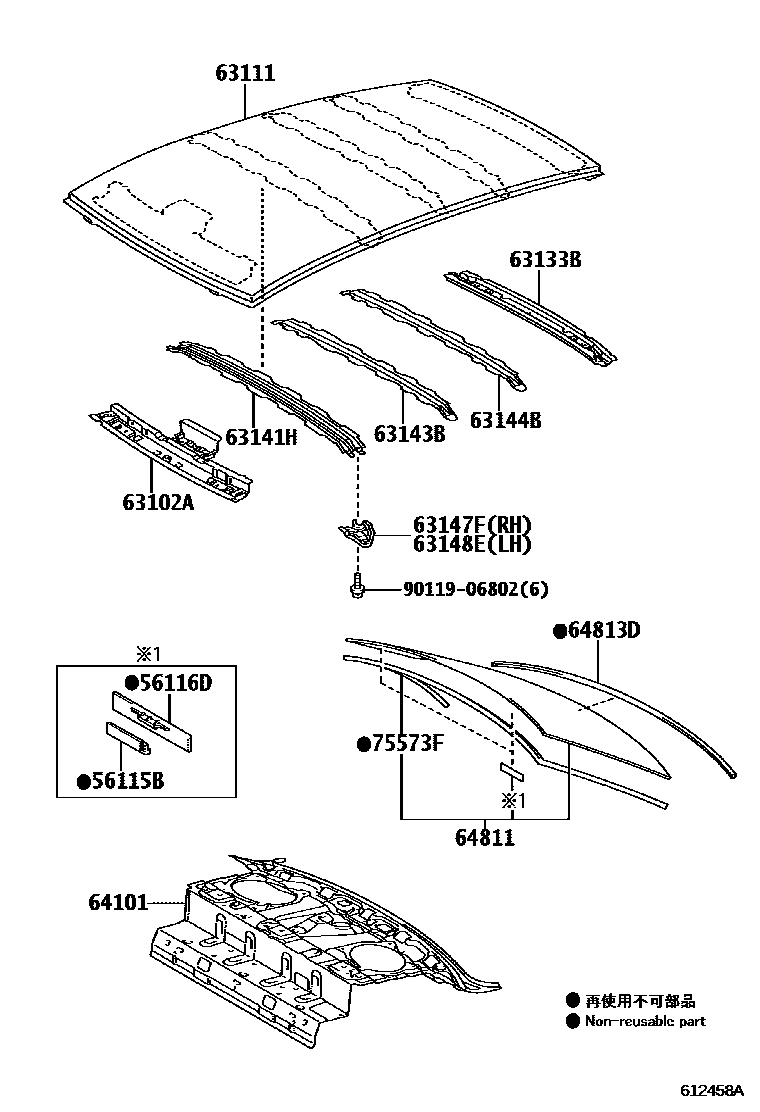

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iNCP9#200808

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iNCP9#200808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52140iNCP9#200601-200808

63111PANEL, ROOF

main63111-52250iNCP9#200601-200808

63133BFRAME, BACK WINDOW

main63133-52020iNCP9#200601-200808

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52120iNCP9#200601-200808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52130iNCP9#200808

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52100iNCP9#200601-200808

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52060iNCP9#200601-200808

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52060iNCP9#200601-200808

64101PANEL SUB-ASSY, UPPER BACK

main64101-52080iNCP93..ARL200808

main64101-52110iNCP9#..GCC,GEN200808-201307

main64101-52090iNCP9#..GCC; NCP9#..GEN200601-200808

REAR SEAT-6:4 FOLD ARMREST; REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK)

64811GLASS, BACK WINDOW

main64801-52110supersedes 64801-52102iNCP9#..GCC,GEN; NCP93..ARL200808-200901

*UVCEHT,T=2.8,GREEN; *UVCEHT,T=2.8,GREEN,REAR WINDOW DEFOGGER-WITH

main64801-52111iNCP9#..GCC,GEN; NCP93..ARL200902-201207

*UVCEHT,T=2.8,GREEN; *UVCEHT,T=2.8,GREEN,REAR WINDOW DEFOGGER-WITH

main64801-52112iNCP93..ARL201207

*UVCEHT,T=2.8,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-52080iNCP9#200601-200808

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-52240iNCP9#200601-200808

9011906802

main90119-06802

15 parts on this diagram · 1 diagram in section
