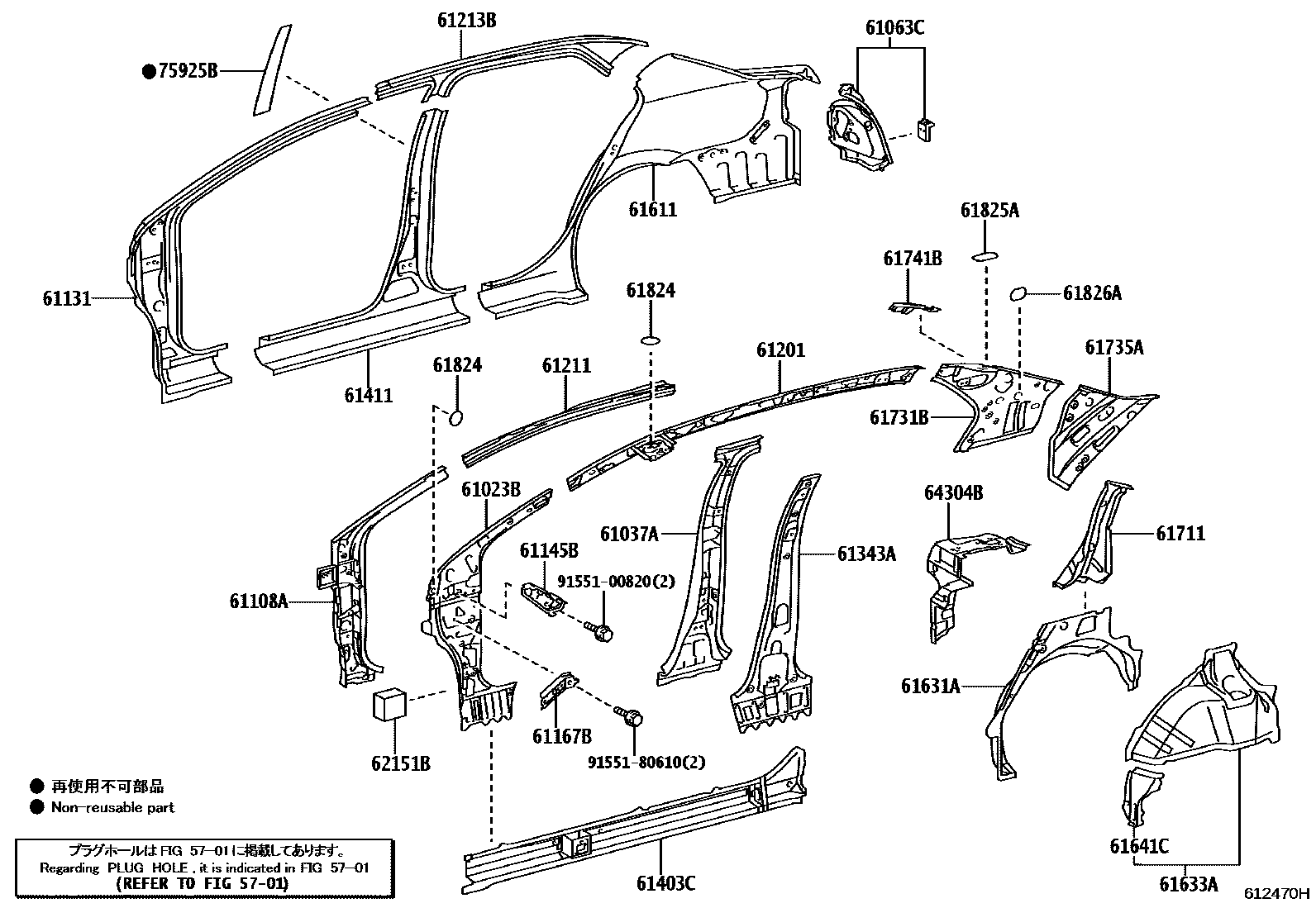

SIDE MEMBER
5701HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
AERO PACKAGE
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
AERO PACKAGE
61611PANEL, QUARTER, RH
AERO PACKAGE
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
62151BPAD, COWL SIDE SILENCER
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
75925BTAPE, BLACK OUT, NO.3 RH
9155100820
main91551-00820
9155180610
main91551-80610
30 parts on this diagram · 2 diagrams in section
